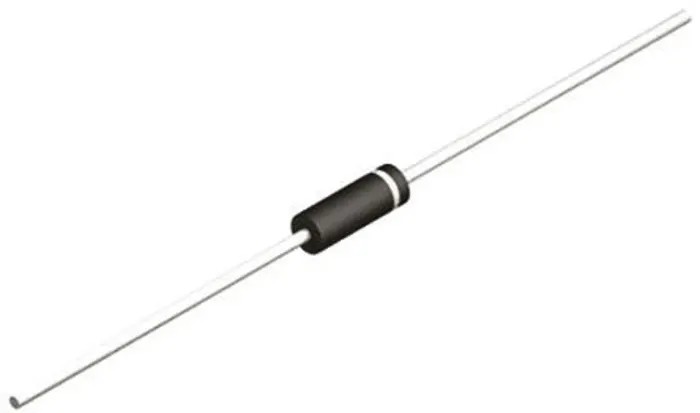

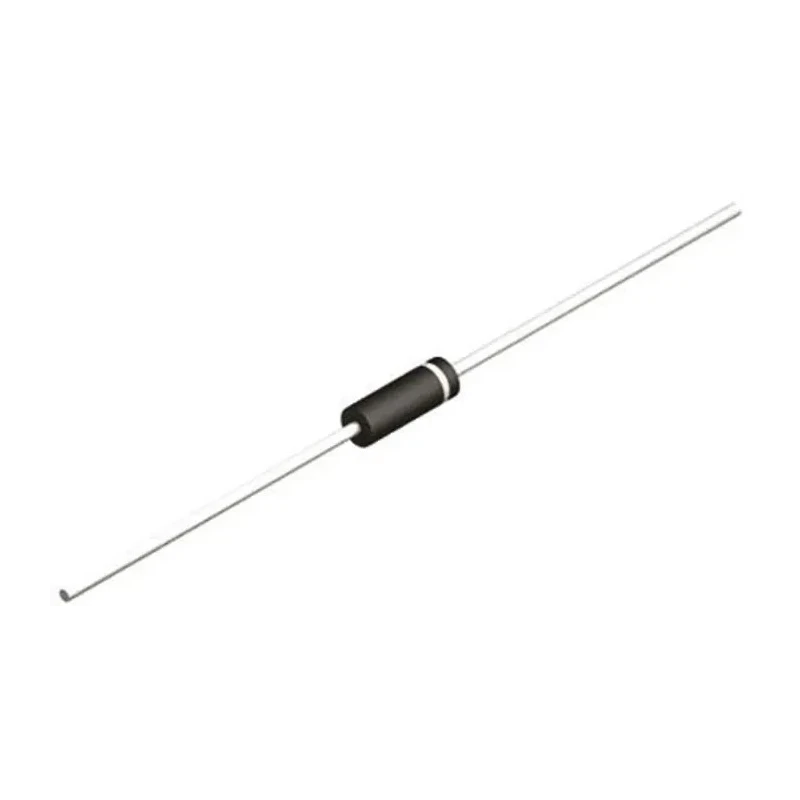

Vishay 1-Element Uni-Directional TVS Diode 1.5 kW, Through Hole 2-Pin 1N6270A-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1N6270A-E3/54 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1N6-A |
| Maximum Operating Temperature | 175°C |
| Package Type | 1.5KE |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 13.4V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 8.65V |
| Maximum Reverse Stand-off Voltage Vwm | 7.8V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 112A |
| Maximum Reverse Leakage Current | 50μA |
Key Features
- This TVS diode features a single diode configuration ensuring uni-directional transient voltage suppression.
- It has a minimum breakdown voltage of 8.65 V and maximum reverse stand-off voltage of 7.8 V for precise operation.
- The device supports peak pulse current of up to 112 A and a clamping voltage of 13.4 V for excellent transient voltage clamping.
- Designed with a robust package type 1.5KE with a compact size of 9.5 mm length and 5.3 mm diameter dimensions.
- Operates efficiently within temperature range -55°C to 175°C, meeting automotive standard AEC-Q101.
- Offers electrostatic discharge (ESD) protection and uses a reliable through-hole mount type.
- Ideal for protecting sensitive electronics in industrial, automotive, and electronic power circuits.
Product Description
Vishay 1N6270A-E3/54 1-Element Uni-Directional TVS Diode is a high-performance transient voltage suppressor designed for protecting electronic circuits against voltage spikes. This diode features a single diode configuration with uni-directional protection and a peak pulse power dissipation rating of 1.5 kW, making it suitable for industrial, automotive, and power electronic applications.
Featuring a through-hole mounting type and a compact 2-pin 1.5KE package, it ensures easy PCB assembly and reliable electrical connections. The device supports a minimum breakdown voltage of 8.65 V and a maximum reverse stand-off voltage of 7.8 V, providing stable protection with a clamping voltage of 13.4 V during transient events.
With a peak pulse current rating of 112 A, this TVS diode efficiently clamps voltage surges to safeguard sensitive components. It operates within a wide temperature range from -55°C up to 175°C, complying with the stringent automotive standard AEC-Q101. The diode also benefits from electrostatic discharge (ESD) protection, enhancing circuit robustness.
Measuring just 9.5 mm in length and 5.3 mm in diameter and width, this compact diode is ideal for space-constrained electronic designs. It offers reliable transient voltage suppression, essential for electronic components in power supplies, automotive electronics, communication devices, and industrial controls.
This TVS diode features a single diode configuration ensuring uni-directional transient voltage suppression. It has a minimum breakdown voltage of 8.65 V and maximum reverse stand-off voltage of 7.8 V for precise operation.
The device supports peak pulse current of up to 112 A and a clamping voltage of 13.4 V for excellent transient voltage clamping. Designed with a robust package type 1.5KE with a compact size of 9.5 mm length and 5.3 mm diameter dimensions.
Operates efficiently within temperature range -55°C to 175°C, meeting automotive standard AEC-Q101. Offers electrostatic discharge (ESD) protection and uses a reliable through-hole mount type. Ideal for protecting sensitive electronics in industrial, automotive, and electronic power circuits.
Browse the extensive range of Transient Voltage Suppressors and other discrete semiconductor devices at EnvMart for superior electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak pulse power dissipation of this diode is 1.5 kW.
The minimum breakdown voltage for this model is 8.65 V.
The clamping voltage of this diode is 13.4 V.
This model supports a peak pulse current of up to 112 A.
It operates efficiently within a temperature range of -55°C to 175°C.
This diode uses a through-hole mounting type.
The dimensions of this diode are 9.5 mm in length and 5.3 mm in diameter.
This diode has a pin count of 2.
It complies with the automotive standard AEC-Q101.
This model features a single diode configuration with uni-directional protection.
