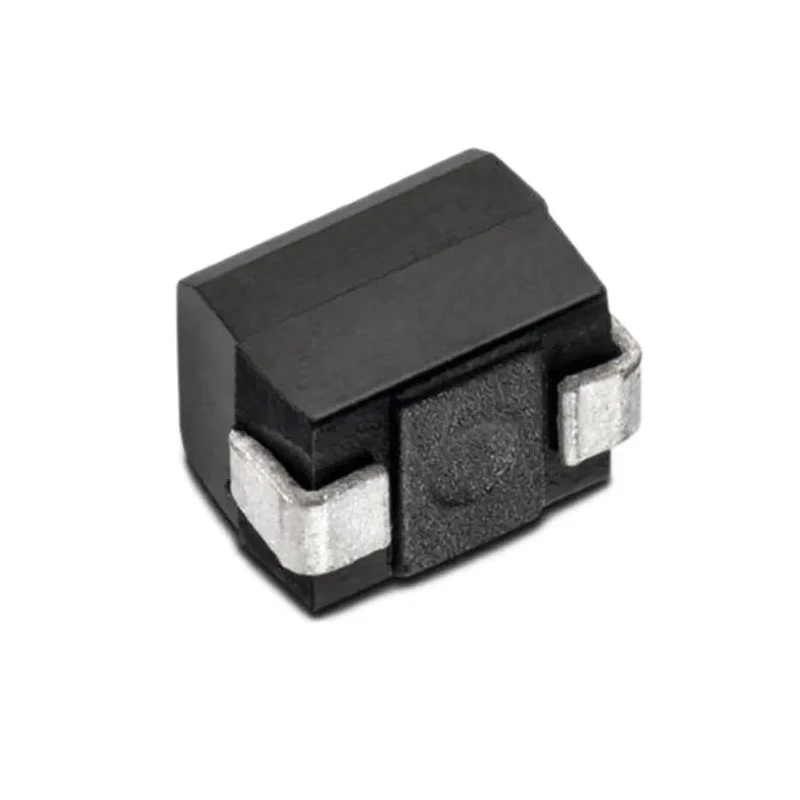

Wurth Elektronik Unshielded Wirewound Surface Mount Inductor Iron Core 100μH ±10 % 275mA 4532 WE-GFH 744766920
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 3.2mm |
| Length | 4.2mm |
| Depth | 3.2mm |
| Packaging | Tape & Reel |
| Series | WE-GFH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Iron |
| Inductance | 100μH |
| Standards/Approvals | REACH, RoHS |
| Package/Case | 4532 |
| Maximum DC Current | 275mA |
| Pin Count | 2 |
| Maximum DC Resistance | 3.72Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 10MHz |
| Minimum Quality Factor | 40 |
| Inductor Construction | Moulded |
Key Features
- This surface mount inductor features a moulded iron core construction for enhanced magnetic properties.
- It has a compact 4532 package size with dimensions 4.2mm length, 3.2mm height, and 3.2mm depth.
- The inductor supports a maximum DC resistance of 3.72Ω and operates within a temperature range of -40°C to 125°C.
- It offers a high self-resonant frequency up to 10MHz and a minimum quality factor of 40.
- Terminated with surface mount style for easy PCB integration and supplied on tape and reel packaging.
- Complies with REACH and RoHS standards for environmental and safety compliance.
- Ideal for applications in acoustic filtering, HF filtering, and high-frequency electronic circuits.
Product Description
Wurth Elektronik 744766920 is an unshielded wirewound surface mount inductor designed with a moulded iron core, providing a nominal inductance of 100μH with ±10 % tolerance. It is engineered for compact size in the 4532 package format, with precise dimensions of 4.2mm length, 3.2mm height, and 3.2mm depth, optimized for high-frequency applications.
This inductor is capable of handling a maximum DC current of 275mA and features a maximum DC resistance of 3.72Ω, ensuring efficient performance at rated currents. The product operates reliably within a temperature range from -40°C up to 125°C, supporting demanding environmental conditions.
Designed under the WE-GFH series, it offers a high self-resonant frequency of up to 10MHz and maintains a minimum quality factor (Q) of 40. The iron core material and moulded construction enhance magnetic characteristics while maintaining a compact form factor. The termination style is surface mount for automated PCB assembly, and it comes in tape and reel packaging to improve manufacturing efficiency.
This inductor is RoHS and REACH compliant, reflecting adherence to global environmental standards. Its technical characteristics make it suitable for electronic applications like acoustic filtering, HF filtering, and other high-frequency circuits in industrial, communications, and consumer electronics sectors.
This Surface Mount Inductor features a moulded iron core construction for enhanced magnetic properties. It has a compact 4532 package size with dimensions 4.2mm length, 3.2mm height, and 3.2mm depth. The inductor supports a maximum DC resistance of 3.72Ω and operates within a temperature range of -40°C to 125°C.
It offers a high self-resonant frequency up to 10MHz and a minimum quality factor of 40. Terminated with surface mount style for easy PCB integration and supplied on tape and reel packaging. Complies with REACH and RoHS standards for environmental and safety compliance.
Ideal for applications in acoustic filtering, HF filtering, and high-frequency electronic circuits. Explore more Wurth Elektronik inductors and components at EnvMart to enhance your electronic design and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this surface mount inductor is 100μH with a tolerance of ±10%.
It can handle a maximum DC current of 275mA.
The dimensions of the 4532 package are 4.2mm in length, 3.2mm in height, and 3.2mm in depth.
The maximum DC resistance of this inductor is 3.72Ω.
This inductor operates reliably within a temperature range of -40°C to 125°C.
The maximum self-resonant frequency is up to 10MHz.
The minimum quality factor (Q) for this inductor is 40.
It uses a surface mount termination style for easy PCB integration.
Yes, it complies with REACH and RoHS standards for environmental and safety compliance.
The core material of this inductor is iron, which enhances its magnetic properties.
This inductor is supplied on tape and reel packaging, which improves manufacturing efficiency.
It is suitable for applications in acoustic filtering, HF filtering, and high-frequency electronic circuits.
