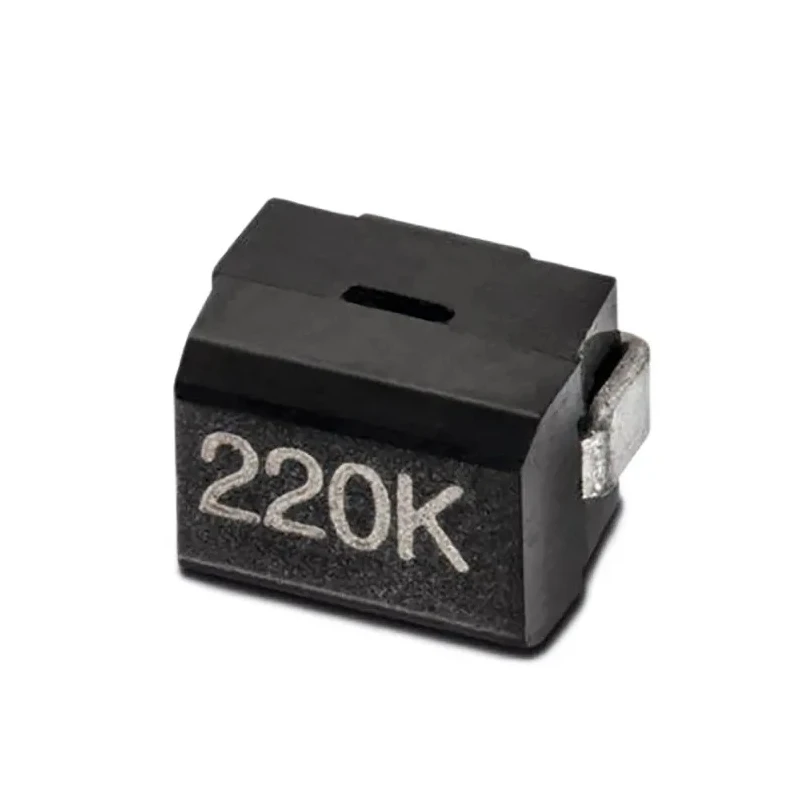

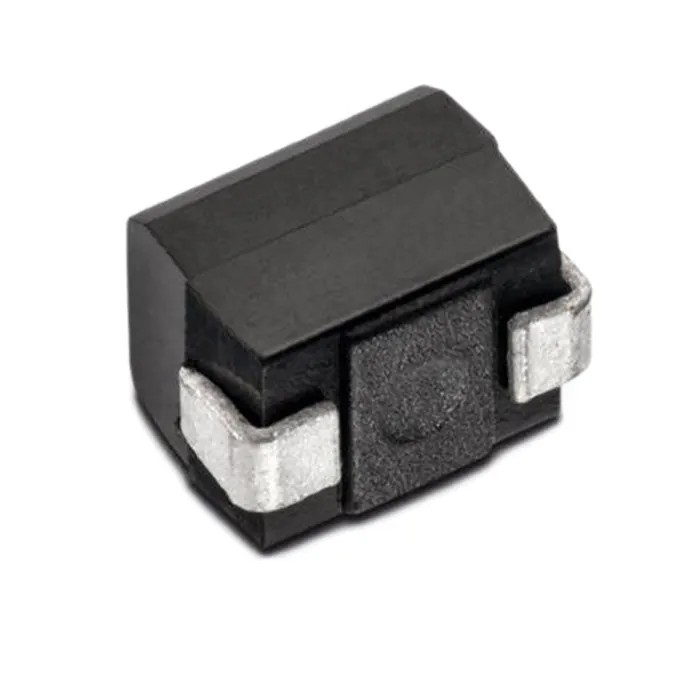

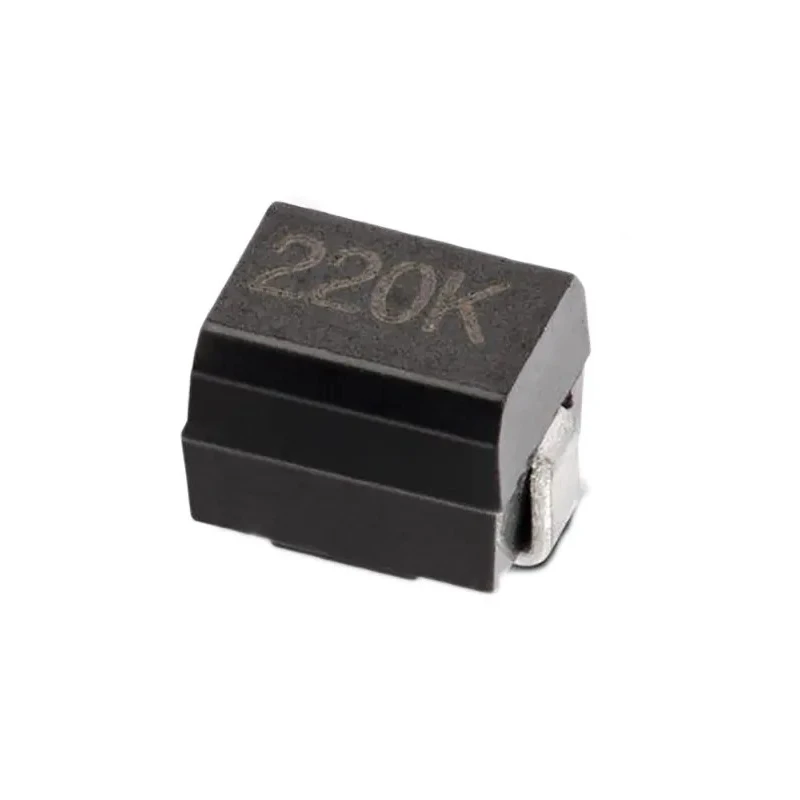

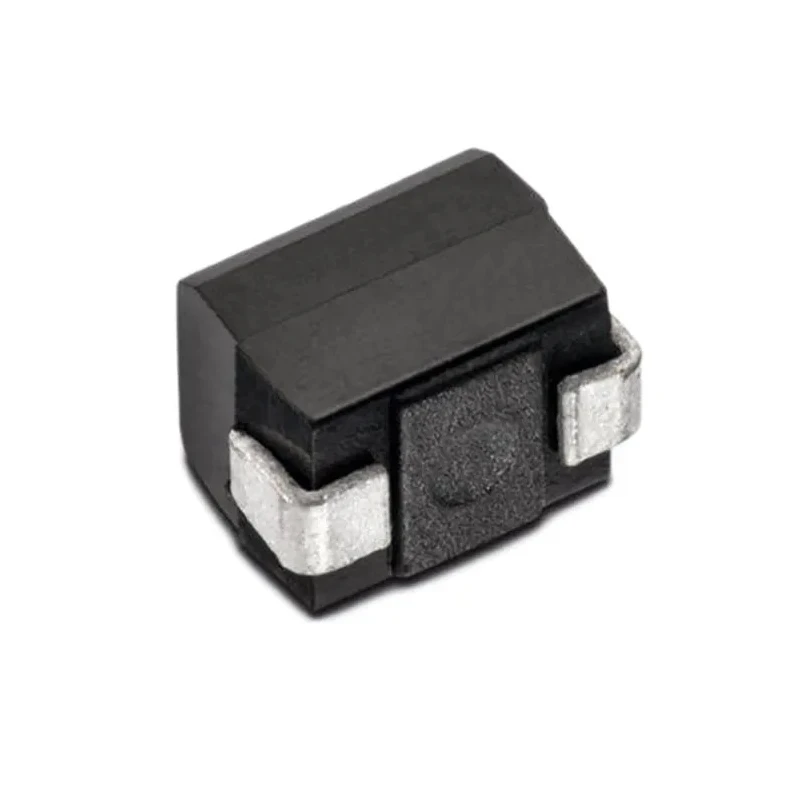

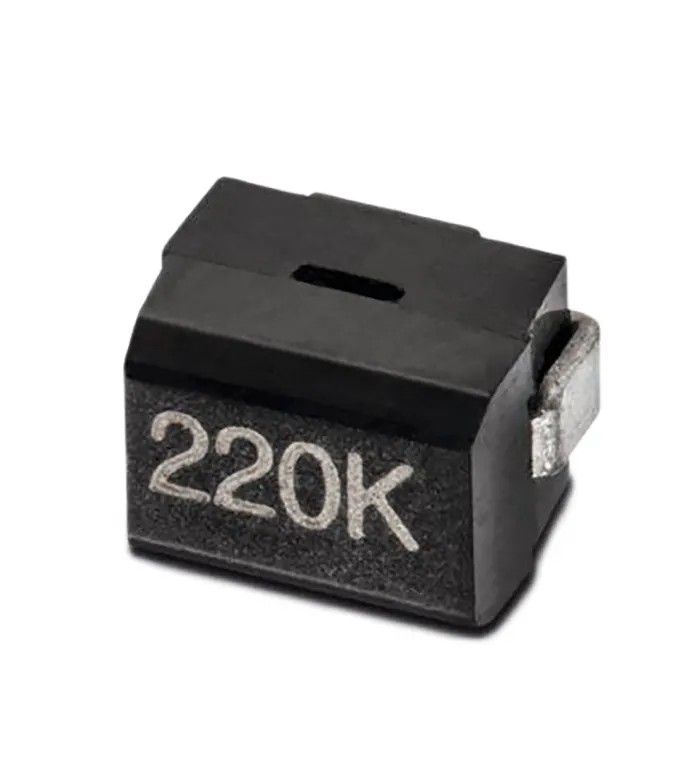

Wurth Elektronik Unshielded Wirewound Surface Mount Inductor 4532 Case 22 μH 650 mA Iron Core, Moulded ±10 % 7447669122

Wurth Elektronik 7447669122 is an unshielded wirewound Surface Mount Inductor designed for high frequency electronic circuits. Encased in a 4532 package, it features an iron core that delivers stable inductance of 22 μH with a tolerance of ±10%, making it suitable for acoustic filtering, HF circuits, and other RF applications.

This inductor supports a maximum DC current of 650 mA and operates efficiently up to a maximum DC resistance of 790 mΩ. It is moulded for robustness and is capable of operating across a broad temperature range from -40°C to 125°C, providing reliable performance even under demanding environmental conditions.

The compact dimensions (4.2 mm length, 3.2 mm height, and 3.2 mm depth) and surface mount termination style facilitate easy integration into modern PCB designs. Tape and reel packaging supports high-volume manufacturing processes through automated pick-and-place machinery.

Wurth Elektronik ensures quality and compliance with REACH and RoHS standards, reflecting the product's adherence to safety and environmental regulations. The inductor's max self resonant frequency of 23 MHz and minimum quality factor of 35 enable effective filtering and signal conditioning in various industrial and electronic applications.

This inductor features a compact 4532 case size suitable for surface mount applications. It has an iron core construction ensuring high inductance stability. The inductance tolerance is ±10%, providing reliable performance in circuits.

The product is moulded and supports a maximum operating temperature of 125°C. Designed for high frequency applications with a maximum self-resonant frequency of 23 MHz. Its maximum DC resistance is 790 mΩ, supporting efficient current flow.

It operates within a temperature range of -40°C to 125°C for versatile use environments. The inductor has 2 pins and comes packaged in tape and reel format for automated assembly. It is compliant with REACH and RoHS standards, ensuring environmental safety and regulatory adherence.

This Wurth Elektronik WE-GFH series inductor is ideal for use in industrial electronic equipment, laboratory instruments, telecommunications gear, automotive electronics, and other high-frequency circuit applications where small size and reliable inductive characteristics are required.
