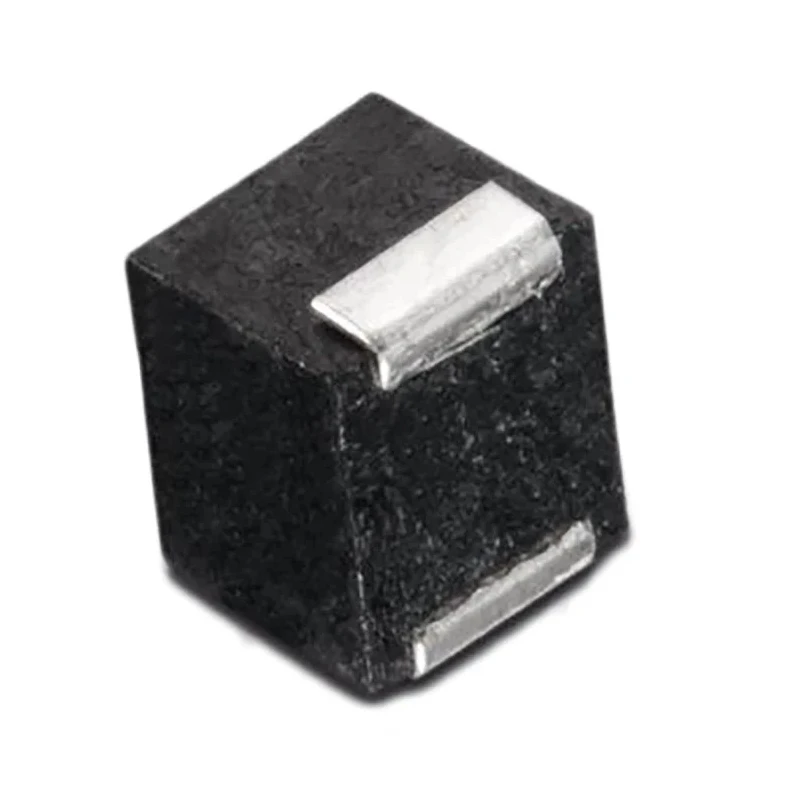

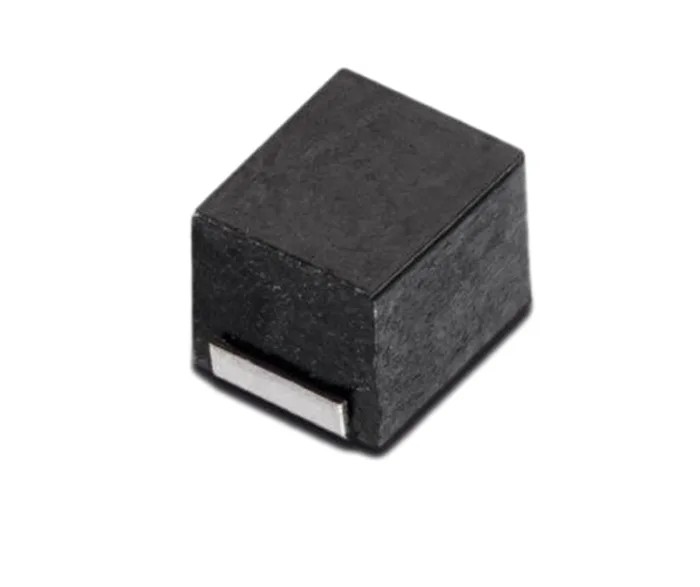

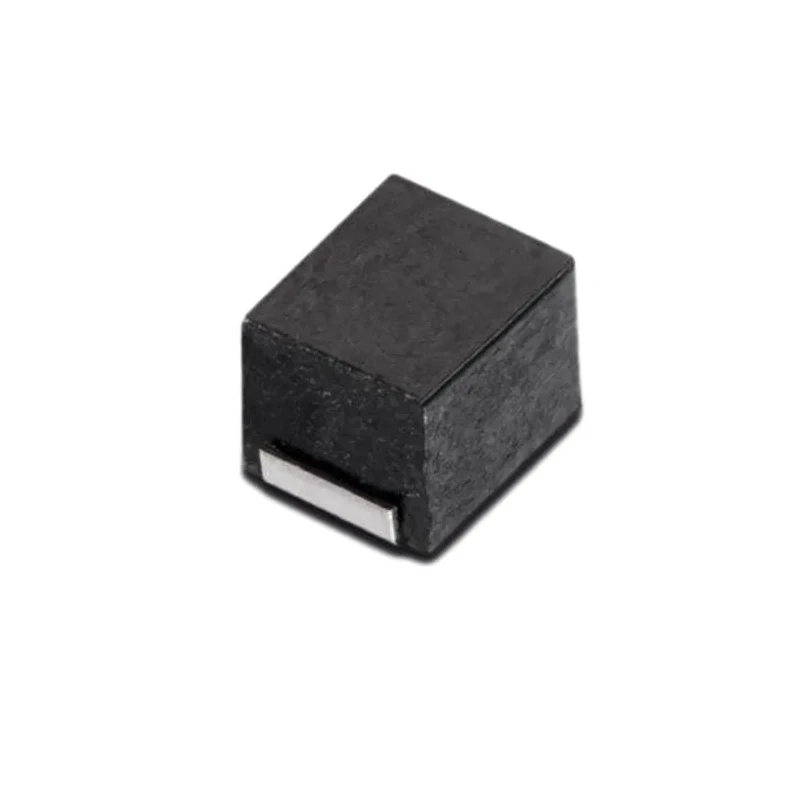

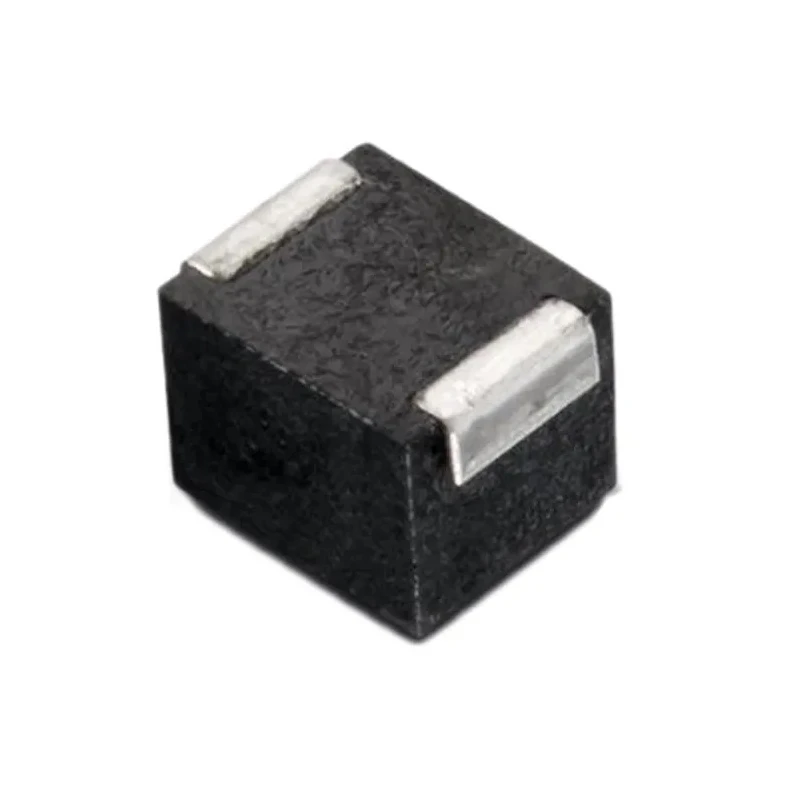

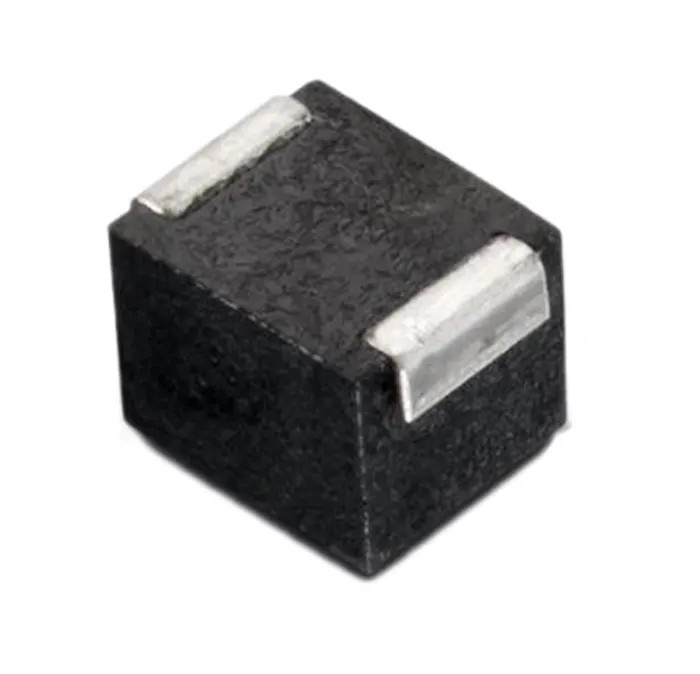

Wurth Elektronik Wirewound Surface Mount Inductor 33μH Iron Core 210mA 2520 Case WE-GFH 7447629330

Wurth Elektronik 7447629330 is a wirewound surface mount inductor designed for robust high-frequency performance with a 33μH inductance and iron core construction. The component is moulded and features a compact 2520 package case ideally suited for PCB surface mount assembly where space saving is paramount.

This inductor supports a maximum DC current of 210mA, making it suitable for circuits requiring moderately high current handling capacity. The maximum DC resistance of 5Ω is optimized to maintain high efficiency and minimal power loss. It operates reliably within a temperature range from -40°C to 105°C, allowing for durable performance in demanding industrial and electronic environments.

The inductance tolerance of ±10% assures design consistency and predictable electrical characteristics. With a pin count of 2 and a surface mount termination style, the component integrates efficiently into automated SMT processes. It has a compact size with dimensions of 2.5mm length, 1.8mm height, and 2mm depth, making it compatible with densely populated circuit boards.

The inductor is non-shielded and particularly effective for acoustic filtering, HF filtering, and other high-frequency applications. It supports a maximum self-resonant frequency of 22MHz and a minimum quality factor of 30, ensuring effective operation within its specified frequency range.

This product complies with REACH and RoHS standards, reflecting environmental compliance and safety. Manufactured in China, it meets industrial quality controls expected of Wurth Elektronik components.

Applications for this inductor include industrial electronics, telecommunications, audio filtering circuits, and power management systems. It is an excellent choice for designers requiring reliable, compact inductors with consistent electrical characteristics.

Explore more from Wurth Elektronik and related surface mount inductors to find components that enhance your design projects and manufacturing processes. The inductor features a 2520 package case suitable for surface-mount technology.

It supports a maximum DC current of 210mA and operates up to 105°C. The inductance tolerance is ±10%, ensuring reliable performance within specification. This moulded inductor includes 2 pins and an iron core for durable operation.

Its dimensions are compact with a length of 2.5mm, height of 1.8mm, and depth of 2mm. Maximum DC resistance is 5Ω, balancing efficiency with performance. Non-shielded design optimized for acoustic and HF filtering applications.

Complies with REACH and RoHS environmental standards. Supports a maximum self-resonant frequency of 22MHz for high-frequency circuits. Manufactured in China to high-quality standards. Find more products in the Surface Mount Inductors category at EnvMart to support your industrial, electronic design, and manufacturing needs.
