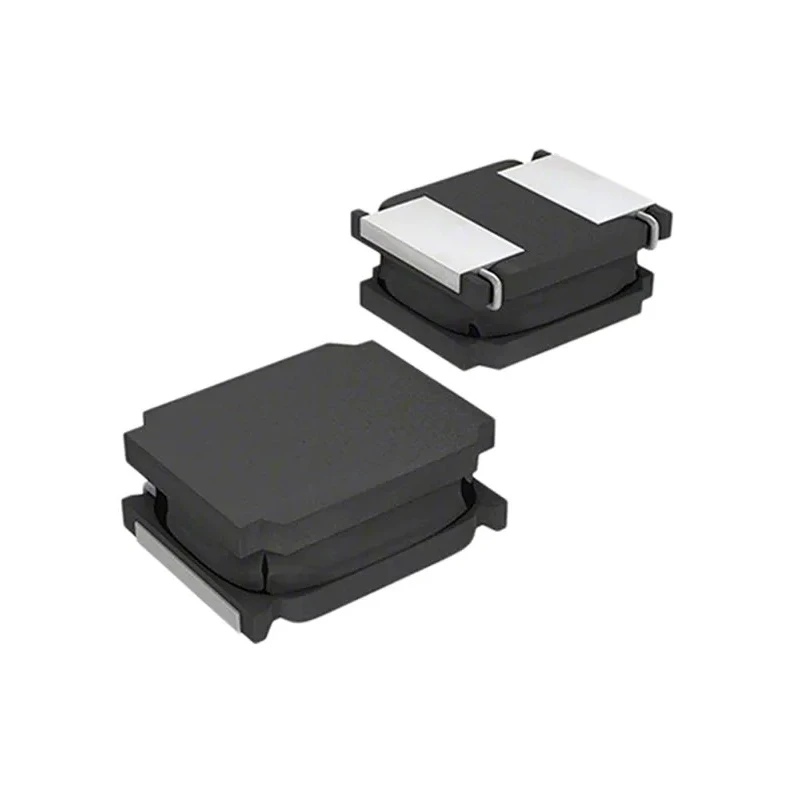

Wurth Elektronik WE-LQS 5020 Shielded Wirewound Surface Mount Inductor Iron Core 68 μH ±20% 800 mA 74404052680
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2mm |
| Length | 5mm |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | WE-LQS |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Iron |
| Inductance | 68μH |
| Standards/Approvals | REACH, RoHS, JEDEC JS709B, IEC 61249-2-21 |
| Package/Case | 5020 |
| Maximum DC Current | 800mA |
| Pin Count | 2 |
| Maximum DC Resistance | 769mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 9.2MHz |
| Inductor Construction | Moulded |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor has a maximum DC resistance of 769 mΩ.
- Operates within a temperature range of -40°C to 125°C suitable for automotive standards.
- Features magnetic shielding and is moulded for durability.
- Complies with REACH, RoHS, JEDEC JS709B, and IEC 61249-2-21 standards.
- Designed with a tape and reel packaging for efficient mounting.
- Supports frequencies up to 9.2 MHz with a 2-pin surface mount termination style.
- Manufactured in China as part of the WE-LQS series, ideal for portable power applications.
Product Description
Wurth Elektronik 74404052680 WE-LQS series Surface Mount Inductor is a magnetically shielded, wirewound component with an iron core, offering 68 μH inductance and ±20% tolerance. It supports a maximum DC current of 800 mA and is moulded for enhanced mechanical strength and reliability.
Its compact 5020 package size (5 mm × 2 mm × 5 mm) makes it suitable for high-density circuit designs in industrial and automotive applications compliant with AEC-Q200 standards. This inductor operates effectively within harsh temperature conditions from -40°C to 125°C.
With a maximum DC resistance of 769 mΩ and maximum self-resonant frequency of 9.2 MHz, the WE-LQS inductor is designed for efficient power management uses, including DC/DC converters for portable devices such as PDAs, smartphones, digital cameras, and TVs.
The inductor features magnetic shielding to reduce electromagnetic interference, with a moulded construction ensuring durability in shock-resistant circuits. Its surface mount termination and tape & reel packaging enhance practicality in automated manufacturing processes.
The inductor is RoHS and REACH compliant, meeting modern environmental and safety standards. Its iron core construction ensures stable inductance and performance consistency in demanding industrial environments. The product supports applications in industrial electronics, automotive systems, and portable power supply units requiring high efficiency and compact design.
This component is part of Wurth Elektronik’s WE-LQS line, known for robust power inductors with improved current handling compared to unshielded variants.
Wurth Elektronik inductors like the 74404052680 model are essential components in power electronics, offering reliable performance in a compact surface mount package. Explore and source Wurth Elektronik products at EnvMart for advanced electronic designs and industry-grade component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 68 μH with a tolerance of ±20%.
It supports a maximum DC current of 800 mA.
This inductor has dimensions of 5 mm in length, 5 mm in depth, and 2 mm in height.
The maximum operating temperature is 125°C.
It is packaged in tape and reel format, which is suitable for automated manufacturing processes.
It complies with REACH, RoHS, JEDEC JS709B, and IEC 61249-2-21 standards.
The maximum self-resonant frequency is 9.2 MHz.
The core material of this inductor is iron.
The maximum DC resistance is 769 mΩ.
It features a surface mount termination style.
This model meets the AEC-Q200 automotive standard.
It is suitable for applications in industrial electronics, automotive systems, and portable power supply units.
