pico Technology TA Series Active Differential Oscilloscope Probe 100 MHz Bandwidth 1:10, 1:100 Attenuation BNC TA043

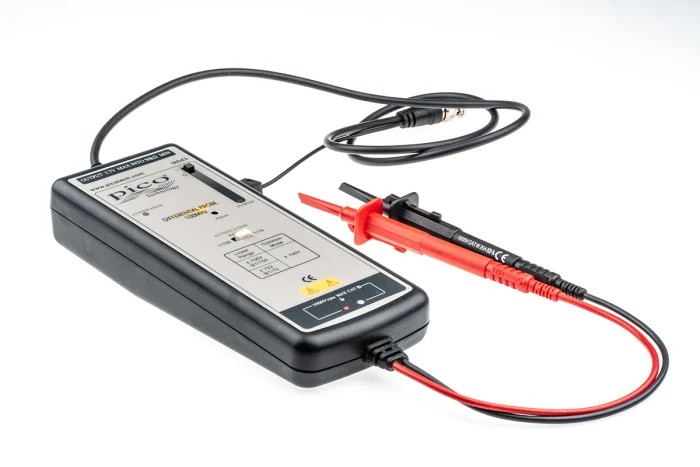

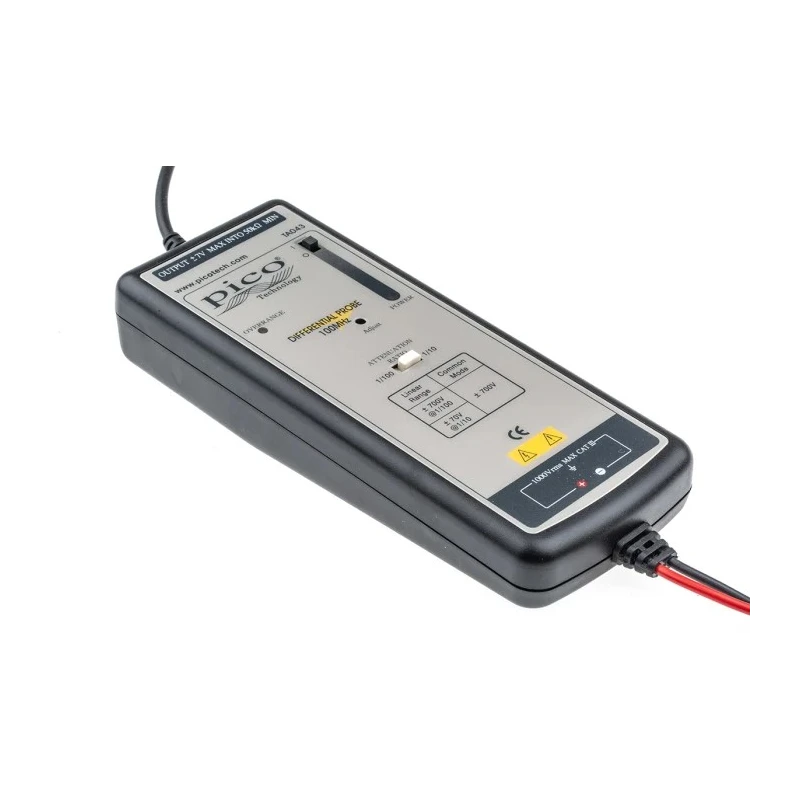

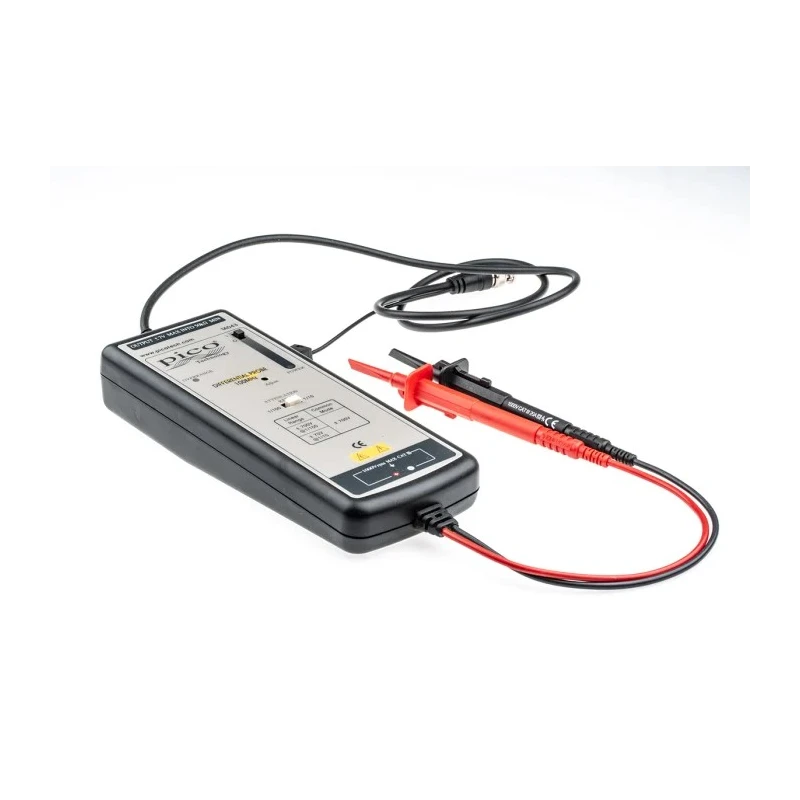

Pico Technology TA043 is an active differential oscilloscope probe tailored for precise high common-mode voltage measurements up to ±700V. It extends the functionality of standard single-ended input oscilloscopes by enabling safe and accurate differential signal acquisition. The probe operates at a bandwidth of DC to 100 MHz, supporting signals with rise times as fast as 3.5 ns.

This probe features selectable attenuation ratios of 1:10 for low voltage, high resolution measurements below 70 V, and 1:100 for higher voltage signals up to ±700 V differential or 1000 V CAT III safety voltage rating. It includes two probes with BNC connectors for straightforward oscilloscope connection.

The device provides high input impedance of 4 MΩ in parallel with 7 pF capacitance per input side, reducing the loading effect on the measured circuit. The typical offset voltage is minimized to ensure measurement accuracy with ±2% accuracy specification.

Designed for industrial, laboratory, and test measurement applications, it complies with IEC standards IEC 1010.2 031 and IEC 1010.1, guaranteeing rigorous safety and performance standards. The CAT III safety category with a maximum voltage rating of 1000 V ensures operator protection in demanding environments.

This oscilloscope probe is ideal for engineers and technicians requiring differential voltage measurements in power electronics, automotive testing, and electronic device development.

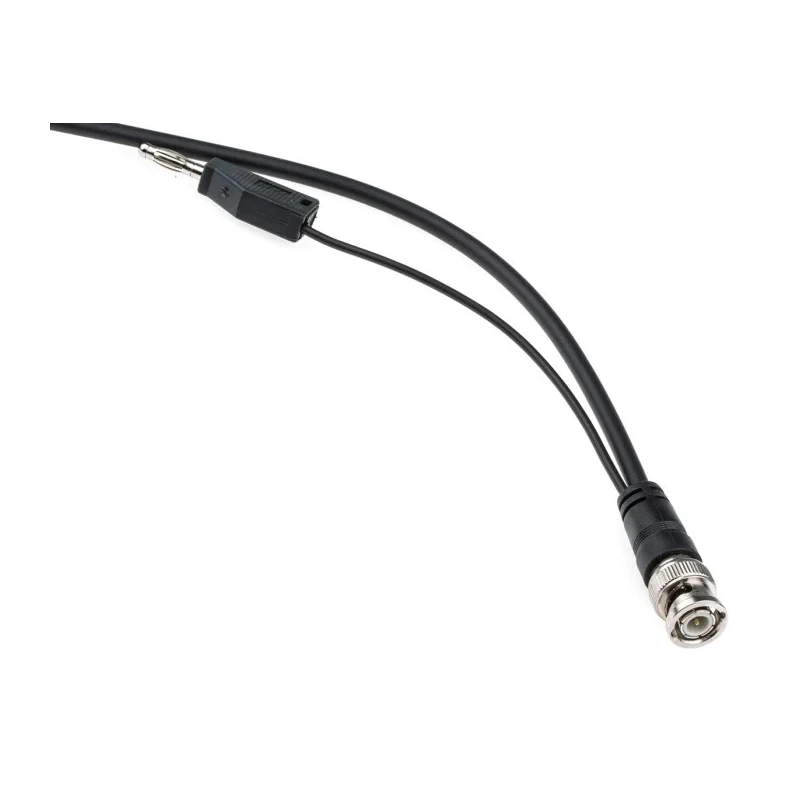

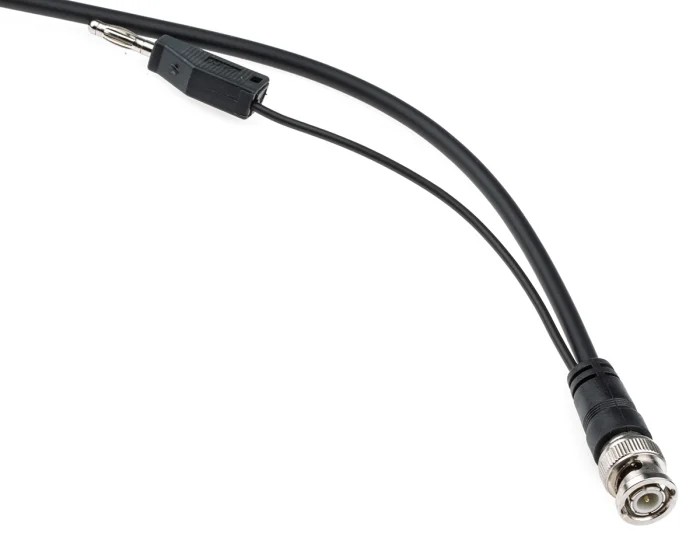

Operates with dual attenuation ratios of 1:10 and 1:100 to suit a range of signal amplitudes. Supports a bandwidth up to 100 MHz for high-speed signal analysis. Features BNC connector for secure and standard oscilloscope interface.

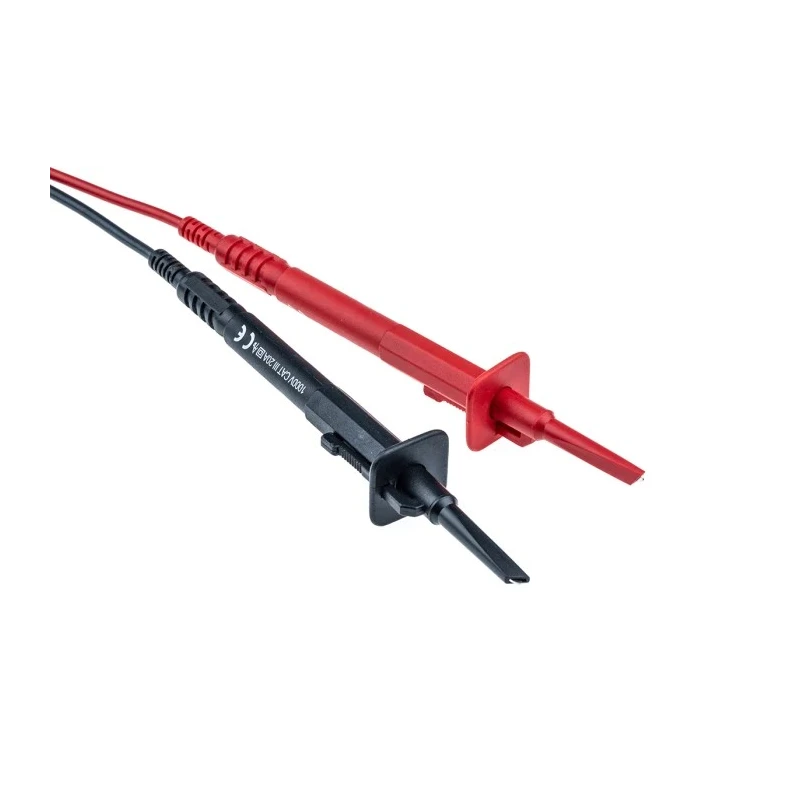

Safe operation ensured by CAT III safety rating with maximum 1000V rating. Includes two probes allowing differential measurements with ±700V common mode voltage handling. High input impedance of 4 MΩ in parallel with 7 pF per side minimizes signal loading.

Fast rise time of 3.5 ns supports accurate transient detection. Compact design suitable for industrial, laboratory, and test measurement applications. Explore the comprehensive range of Pico Technology Oscilloscope Probes and accessories on EnvMart for precision test and measurement solutions.
