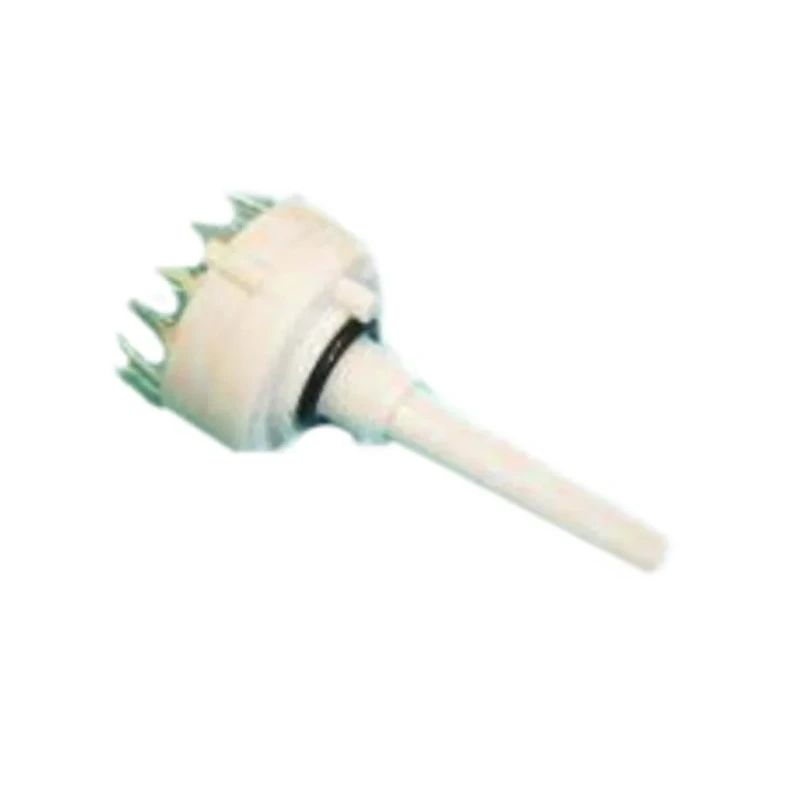

Lorlin IP67 Sealed Rotary Switch, PCB Terminal, Polyamide Housing, 90° Throw, 250V AC/DC, Mechanical Life 10000 CKS1059

Lorlin CKS1059 is an industrial-grade sealed rotary switch featuring a Polyamide housing and IP67 rated front panel protection, making it ideal for robust electrical, automation, and manufacturing applications. Designed specifically for PCB mounting, it supports solder or printed circuit board terminals.

The switch is engineered for reliable operation up to 250 volts AC and DC, with a black actuator operating at a 90° angle of throw. It incorporates a dampened indexing mechanism and reduced axial shaft play to ensure smooth and precise switching action.

This rotary switch series features a mechanical life expectancy of 10,000 cycles, assuring dependable performance in demanding industrial environments. It supports up to four poles per switch and a maximum of 12 selectable positions, delivering flexibility for complex signal routing.

The device operates effectively in a temperature range from -30°C minimum to 85°C maximum, making it suitable for varied climatic conditions. Its front panel seal compliant with IP67 protects against temporary immersion in water, ideal for harsh environments requiring robust ingress protection.

Compact with a diameter of 27.5 mm and width of 26.2 mm, this switch fits neatly into panel designs. Manufactured in the United Kingdom, it meets RoHS standards for environmental compliance.

Designed for PCB mounting with solder or PCB terminal types. Supports maximum 250V AC and DC voltage ratings for versatile applications. Mechanical life rated at 10,000 cycles for long-term reliability. Front panel sealed to IP67 standard for protection against water ingress.

Black actuator color with 90° angle of throw ensures precise control. Operates within -30°C to 85°C temperature range for varied industrial environments. Compact size with 27.5 mm diameter and 26.2 mm width. RoHS compliant and manufactured in the United Kingdom.

This Lorlin rotary switch is suited for electrical, automation, control systems, manufacturing, and industrial signaling applications. Explore more reliable Rotary Switches and electrical components in our Electronics & Electricals category at EnvMart.
