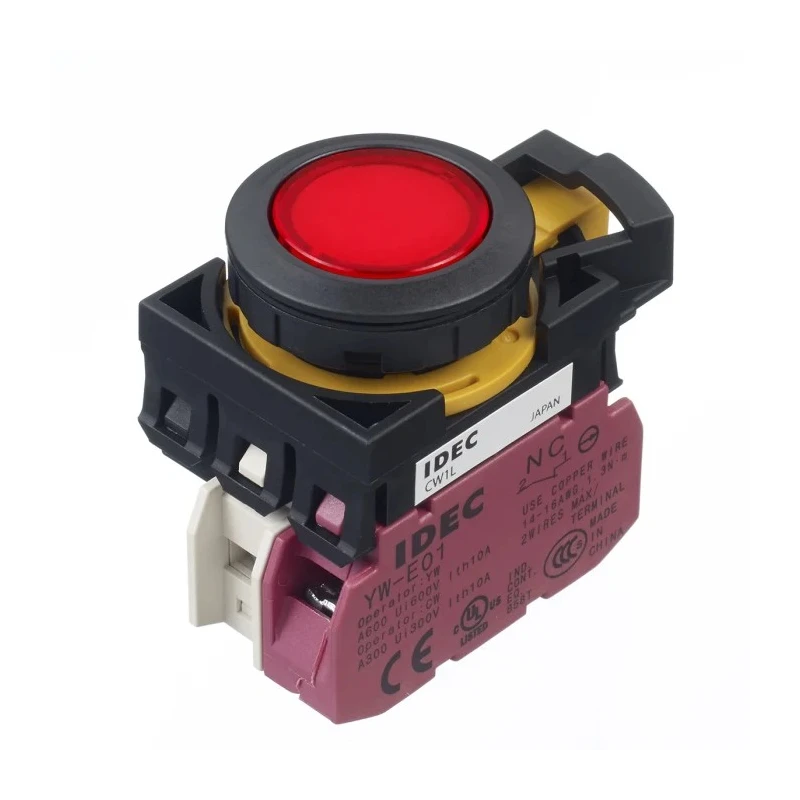

Idec CW Series Illuminated Push Button Switch, Momentary, Panel Mount, 22 mm Cutout, SPST, Red LED, IP65, 24 V CW1L-M1E01Q4R

Idec CW1L-M1E01Q4R is an illuminated push button switch from the CW series, designed for panel mounting with a 22 mm cutout size. It features a red actuator and LED illumination that provides clear visual feedback. The momentary SPST operation makes it suitable for control circuits requiring temporary switching.

This push button is mounted on panels using a secure panel mount method with screw terminals offering stable electrical connections. The device operates at a contact voltage of 24 V AC/DC and supports a contact current rating of 10A, making it ideal for light duty switching applications in automation, electrical control, and machinery panels.

The CW series switch is rated IP65 which ensures resistance against dust ingress and water jets, enhancing its durability in harsh industrial environments. Its operating temperature range from -25°C to 55°C allows effective performance across various ambient conditions.

Red actuator color ensures clear visual identification. Momentary switch operation suitable for temporary contact. Panel mount type with 22 mm panel cutout dimension. SPST contact configuration and screw terminal type for secure connection.

Red LED illumination provides status indication. Ingress protection rating of IP65 for dust and water resistance. Operates at 24 V AC/DC contact voltage for versatile applications. Wide operating temperature range from -25°C to 55°C for industrial environments.

Complies with multiple international approvals and standards including GB14048.5, CSA C22.2 No.14, EN60947-5-1, UL508, and EU Low Voltage Directive. Manufactured in Japan for high quality and reliability.

This product is well-suited for use in electrical panels, automation systems, manufacturing control stations, and other industrial control equipment requiring robust, illuminated momentary push button switches. Idec CW Series switches offer enhanced safety with a sleek and flush design, reducing accidental activation and dust accumulation on control panels.
