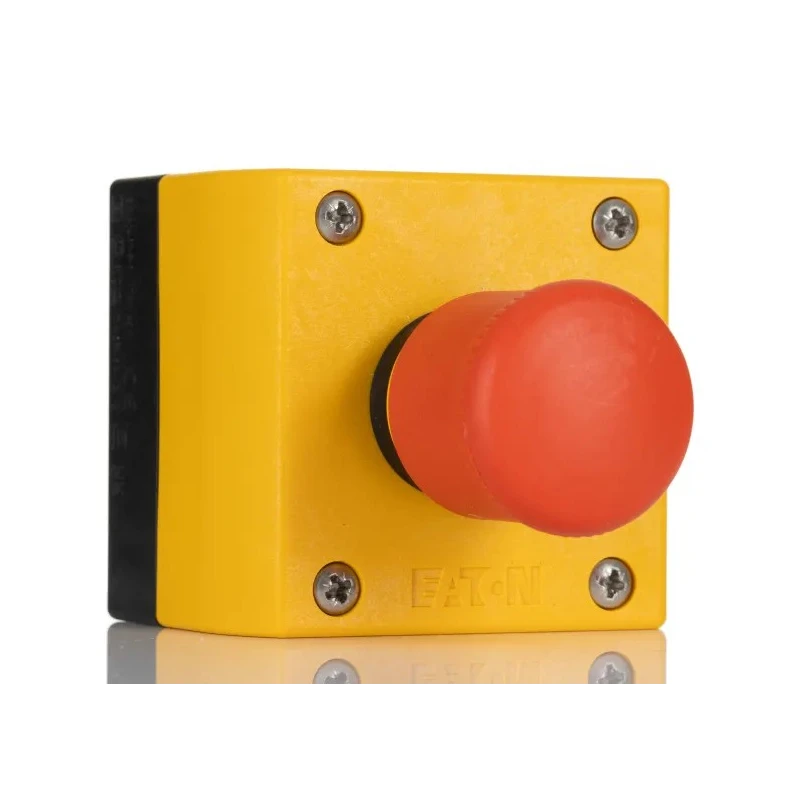

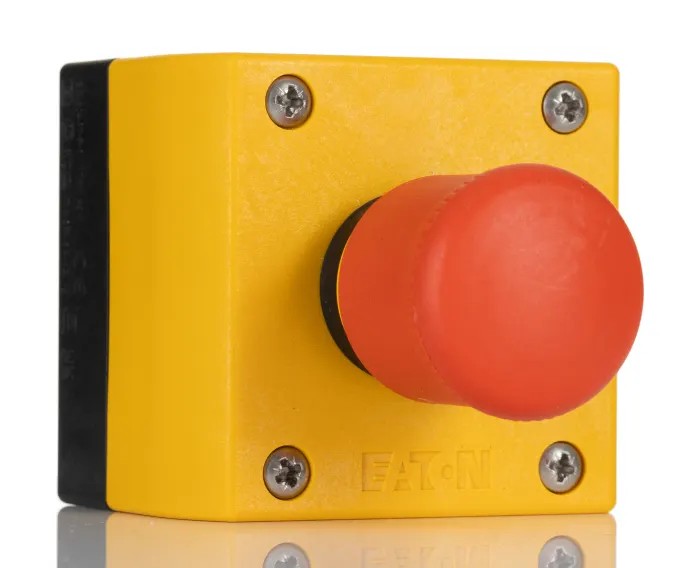

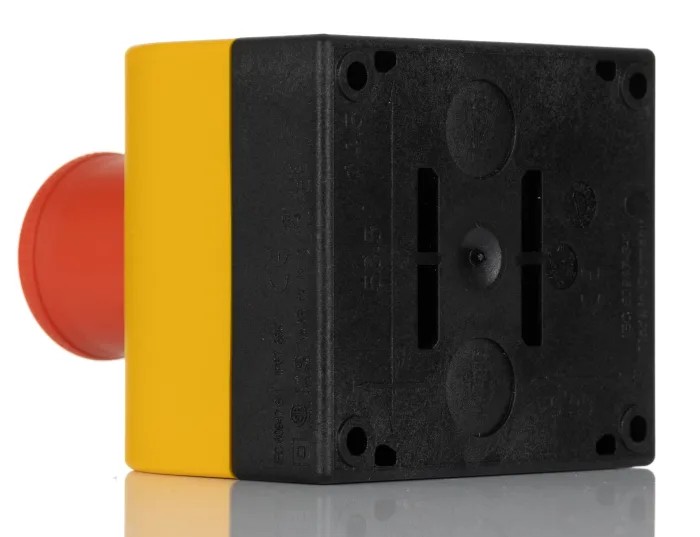

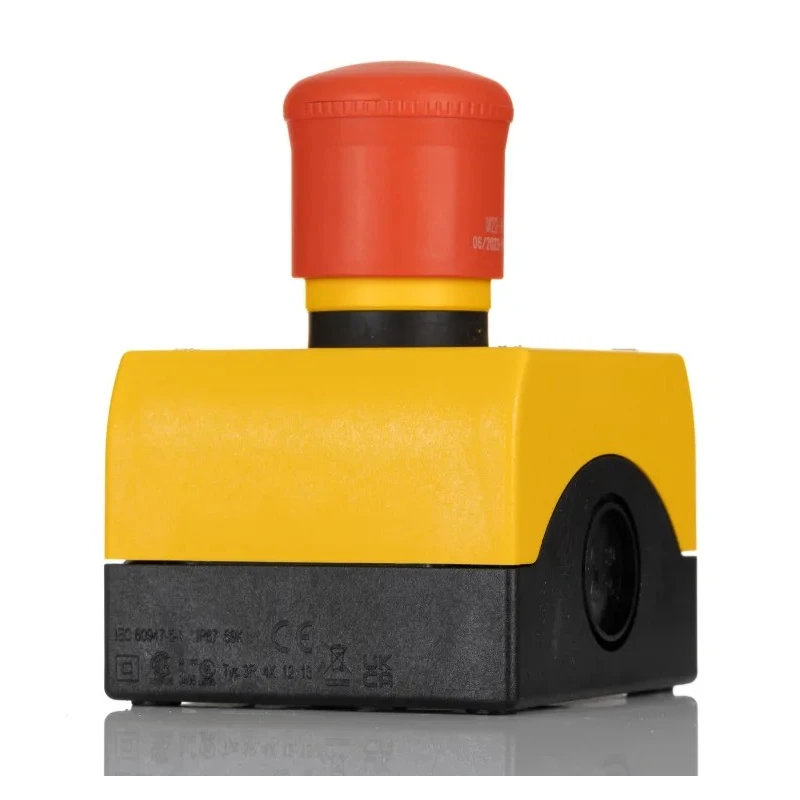

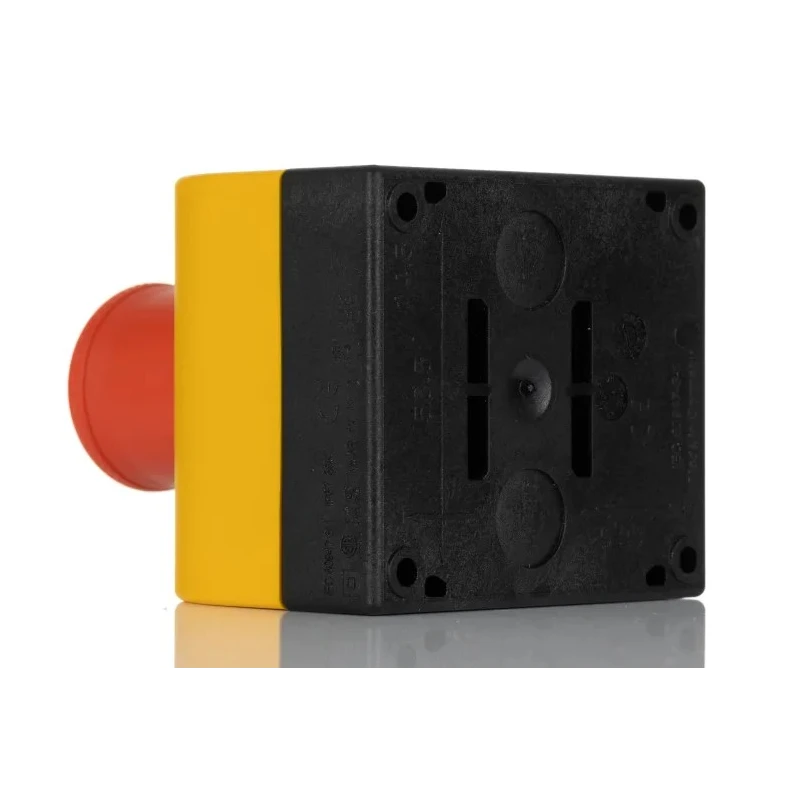

Eaton RMQ Titan M22 Series Pull Release Emergency Stop Push Button Surface Mount 2 NC IP69 IP66 216524 M22-PV/KC02/IY

Eaton 216524 M22-PV/KC02/IY Pull Release Emergency Stop Push Button from the RMQ Titan M22 Series is engineered to provide a reliable and effective emergency shutdown solution for industrial machinery and equipment. With a plastic housing and plastic push button material, this switch ensures durability and safety in demanding environments.

This emergency stop push button offers a double-pole, single-throw (DPST) configuration featuring 2 normally closed (NC) contacts and 3 safety poles. Its pull release actuation allows operators to easily stop machinery and reset it swiftly when required, facilitating quick recovery while maintaining safety compliance.

The product’s surface mount design supports straightforward installation in diverse industrial applications, including manufacturing plants, factories, boiler rooms, and sawmills. The emergency button's round head style in red and yellow color ensures instant visibility and easy access during emergency situations.

Rated at IP69 and IP66, the switch is dust-tight and waterproof against hose-directed water and contaminants, meeting stringent industrial protection requirements. It also complies with IECEx hazardous area certification and a set of relevant standards such as EN60947-5-5, ISO13849-1, ISO13850, and EN60947-5-1, ensuring it meets international safety benchmarks.

Dimensions are compact with an 80mm length, 72mm width, and 104mm depth, allowing flexible mounting options in limited spaces. The switch operates reliably within an ambient temperature range of -25°C to +55°C, making it suitable for harsh operating conditions.

The Eaton RMQ Titan M22 Emergency Stop Push Button is a critical safety component designed to minimize risk and protect personnel and equipment in environments where machinery hazards exist. Its reliable performance and compliance with global standards make it an ideal choice for industrial and manufacturing safety control systems.

Equipped with a double-pole, single-throw configuration for secure mains supply interruption. Features pull release actuation for quick reset of machinery after emergency stops. Surface mount design enables easy and flexible installation in industrial settings.

Constructed with robust plastic housing and push button materials for durability. Rated IP69 and IP66 for dust-tight protection and resistance to high-pressure water jets. Complies with IECEx hazardous area certification and multiple safety standards including EN60947-5-5 and ISO13849-1.

Dimensions measure 80mm length, 72mm width, and 104mm depth for compact mounting. Includes 2 normally closed contacts and 3 pole safety contacts for effective circuit control. Designed to operate within a temperature range of -25°C to +55°C, suitable for harsh environments.

High-visibility red and yellow coloring ensures quick identification and accessibility in emergencies. Explore the full range of Eaton industrial components and safety switches in the Electronics & Electricals category at EnvMart for trusted quality and standards.
