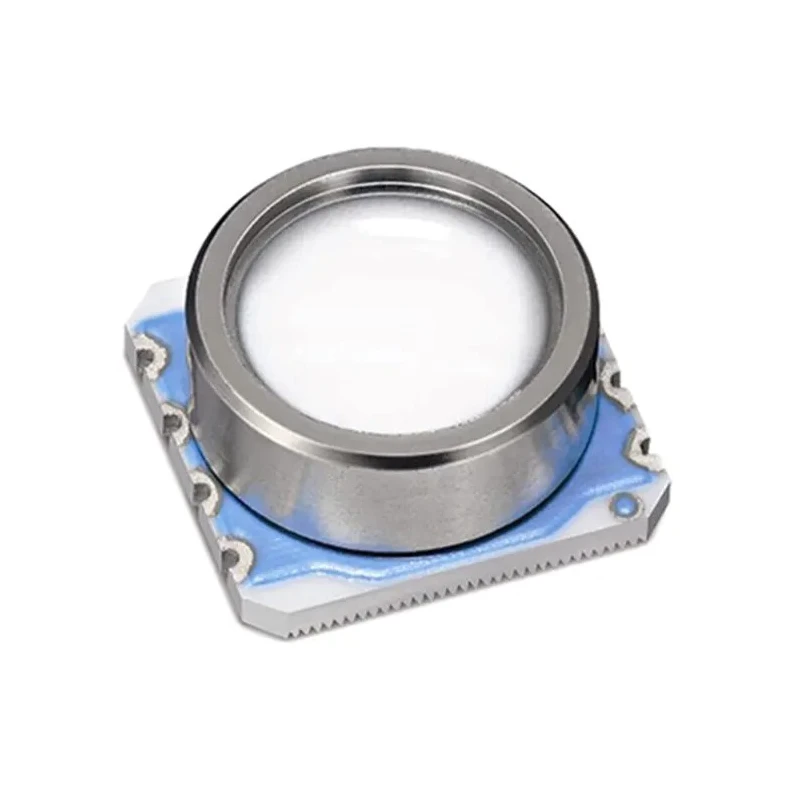

TE Connectivity Barometric Pressure Sensor Surface Mount 850 bar MS580330BA01-00
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±50 mbar |
| Brand | TE Connectivity |
| Maximum Operating Pressure | 30 bar |
| Height | 6.2mm |
| Length | 6.4mm |
| Model | MS580330BA01-00 |
| Sensor Type | Absolute Pressure Sensor |
| Mount Type | Surface |
| Series | MS580330BA01-00 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Minimum Output Voltage | 0mV |
| Minimum Operating Pressure | 0bar |
| Maximum Overload Pressure | 50bar |
Key Features
- This sensor is an absolute pressure sensor suitable for precise barometric pressure measurements.
- Operates with a supply voltage range from 1.8V to 3.6V.
- The device offers a maximum operating pressure of 30 bar and a maximum overload pressure of 50 bar.
- High accuracy of ±50 mbar ensures reliable pressure sensing performance.
- Compact dimensions with a length of 6.4mm and a height of 6.2mm enable easy integration in electronic devices.
- Designed for operation in temperature ranges from -40°C to 85°C for diverse environmental conditions.
- Features an 8-pin surface mount package for simple PCB mounting.
- Includes integrated digital outputs with I2C and SPI interface compatibility.
Product Description
TE Connectivity MS580330BA01-00 Barometric Pressure Sensor is a new surface mount absolute pressure sensor designed to measure barometric pressures up to 850 bar accurately and reliably. It incorporates a high linearity pressure sensor combined with an ultra-low power 24-bit delta-sigma analog-to-digital converter (ADC) with internal factory calibration coefficients. This module supports multiple operating modes optimized for current consumption and conversion speed while providing precise digital 24-bit pressure and temperature data outputs through both I2C and SPI interfaces. The sensor package includes an 8-pin surface mount configuration, measuring only 6.4mm in length and 6.2mm in height, facilitating space-efficient PCB integration. It is engineered for versatile industrial, environmental, and instrument applications, including mobile altimeters, variometers, depth measurement devices, multi-mode watches, bike computers, dataloggers, and diving computers. It can be hermetically sealed for outdoor use and is protected against environmental effects with specialized packaging options including gel protection and an antimagnetic stainless steel cap.
This sensor offers high stability and very low hysteresis for pressure and temperature measurement. It does not require any external components to operate efficiently. The maximum operating pressure rating is 30 bar with the maximum overload pressure of 50 bar ensuring durability.
Operating temperature range supports applications from -40°C to 85°C. The sensor presents minimum and maximum voltage outputs from 0mV up to 3.6V under operating conditions.
Package contents typically include a single TE Connectivity MS580330BA01-00 sensor in tube packaging ready for insertion into machinery or circuit assemblies. Ideal for use across industrial, laboratory, electronics, HVAC, manufacturing, and environmental monitoring applications. Browse EnvMart’s category for Pressure Sensor ICs or explore other products by TE Connectivity for complementary sensor components and instruments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the TE Connectivity Barometric Pressure Sensor is 30 bar.
This sensor offers an accuracy of ±50 mbar for reliable pressure measurements.
It operates with a supply voltage range from 1.8V to 3.6V.
The sensor has a length of 6.4mm and a height of 6.2mm, making it compact for integration.
It is designed to operate within a temperature range of -40°C to 85°C.
This model includes integrated digital outputs with I2C and SPI interface compatibility.
The maximum overload pressure for this sensor is 50 bar.
The sensor features an 8-pin surface mount package for easy PCB mounting.
No, it does not require any external components to operate efficiently.
It is suitable for applications including mobile altimeters, variometers, depth measurement devices, and environmental monitoring.
The country of origin for this sensor is India.
This model is an absolute pressure sensor, designed for precise barometric pressure measurements.
