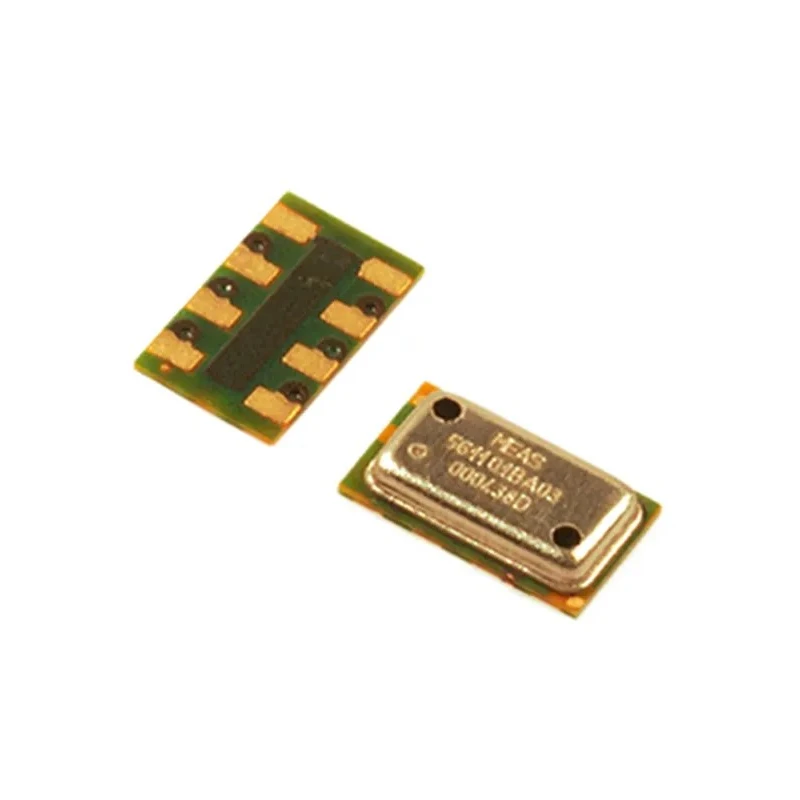

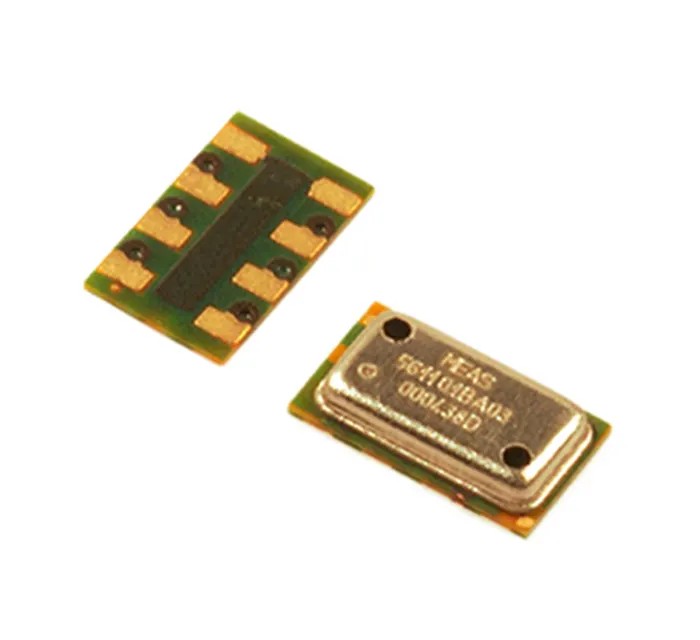

TE Connectivity Barometric Pressure Sensor Absolute 10mbar-1200mbar 1.8-3.6V 8-Pin QFN MS560702BA03-50
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±1.5 mbar |
| Brand | TE Connectivity |
| Maximum Operating Pressure | 1200 mbar |
| Height | 950μm |
| Length | 3mm |
| Model | MS560702BA03-50 |
| Sensor Type | Absolute Pressure Sensor |
| Mount Type | Surface |
| Series | MS560702BA03-50 |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Minimum Output Voltage | 0mV |
| Minimum Operating Pressure | 10mbar |
| Maximum Overload Pressure | 6bar |
Key Features
- Operates over a pressure range of 10 mbar to 1200 mbar with ±1.5 mbar accuracy.
- Uses ultra-low power 24-bit Delta-Sigma ADC for precise pressure and temperature readings.
- Supports both I2C and SPI digital interfaces for easy microcontroller integration.
- Compact surface mount QFN package with 8 pins and small form factor of 3 mm length and 950 μm height.
- Wide operating temperature range from -40°C to 85°C ensures reliable performance in diverse environments.
- No external components required due to integrated oscillator and factory calibration.
- Ideal for applications in altimeters, barometric systems, bike computers, and data loggers.
- Maximum supply voltage of 3.6 V with minimum supply of 1.8 V.
Product Description
TE Connectivity MS560702BA03-50 barometric pressure sensor is a high-resolution absolute pressure sensor combining an ultra-low power 24-bit Delta-Sigma ADC with internal factory-calibrated coefficients. It delivers a linear and precise digital pressure and temperature output over a wide operating range from 10 mbar up to 1200 mbar with an accuracy of ±1.5 mbar. Suitable for integration in compact mobile and industrial devices, this sensor features a small QFN surface-mount package with 8 pins, measuring 3 mm in length and 950 μm in height.
The sensor supports both I2C and SPI interfaces, enabling straightforward communication with microcontrollers without the need for programming internal registers. Its integrated digital pressure sensor eliminates the need for external components, including oscillators, simplifying PCB design and reducing overall system cost. With a supply voltage range from 1.8 V to 3.6 V and an operating temperature between -40°C and 85°C, it performs reliably under diverse environmental conditions.
This barometric sensor finds applications in altimeters, bike computers, mobile altimeters, barometer systems, and data loggers, providing accurate atmospheric pressure and temperature data. Its high stability and low hysteresis ensure consistent and repeatable measurements, crucial for precise altitude and weather monitoring in industrial, laboratory, HVAC, manufacturing, agricultural, and commercial instrumentation.
Operates at supply voltages from 1.8 V to 3.6 V with no external components required. Includes integrated 24-bit Delta-Sigma ADC with factory calibration for high accuracy. Compact 8-pin QFN package measuring 3 mm by 950 μm height for easy PCB integration.
Wide operating temperature range from -40°C to 85°C for broad application environments. High pressure linearity and low hysteresis enhance measurement accuracy and repeatability. Supports I2C and SPI digital interfaces compatible with most microcontrollers.
Suitable for industrial, laboratory, mobile, and consumer electronics requiring pressure sensing. Explore the TE Connectivity pressure sensor range on EnvMart for high-quality, precision sensors tailored for demanding industrial and commercial applications.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates over a pressure range of 10 mbar to 1200 mbar.
The sensor has an accuracy of ±1.5 mbar.
It supports both I2C and SPI digital interfaces for easy integration with microcontrollers.
The package measures 3 mm in length and 950 μm in height.
The sensor operates at supply voltages from 1.8 V to 3.6 V.
It has a wide operating temperature range from -40°C to 85°C.
No, it requires no external components due to its integrated oscillator and factory calibration.
It is an absolute pressure sensor.
The maximum overload pressure is 6 bar.
It is suitable for applications in altimeters, barometric systems, bike computers, and data loggers.
The package has 8 pins.
The country of origin for this sensor is India.
