| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | 744786222A |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | WE-MK |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ceramic |
| Inductance | 220nH |
| Package/Case | 0603 |
| Maximum DC Current | 200mA |
| Pin Count | 2 |
| Maximum DC Resistance | 2.4Ω |
| Inductance Tolerance | ±0.05 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 350MHz |
| Minimum Quality Factor | 8 |
| Inductor Construction | Multilayer |

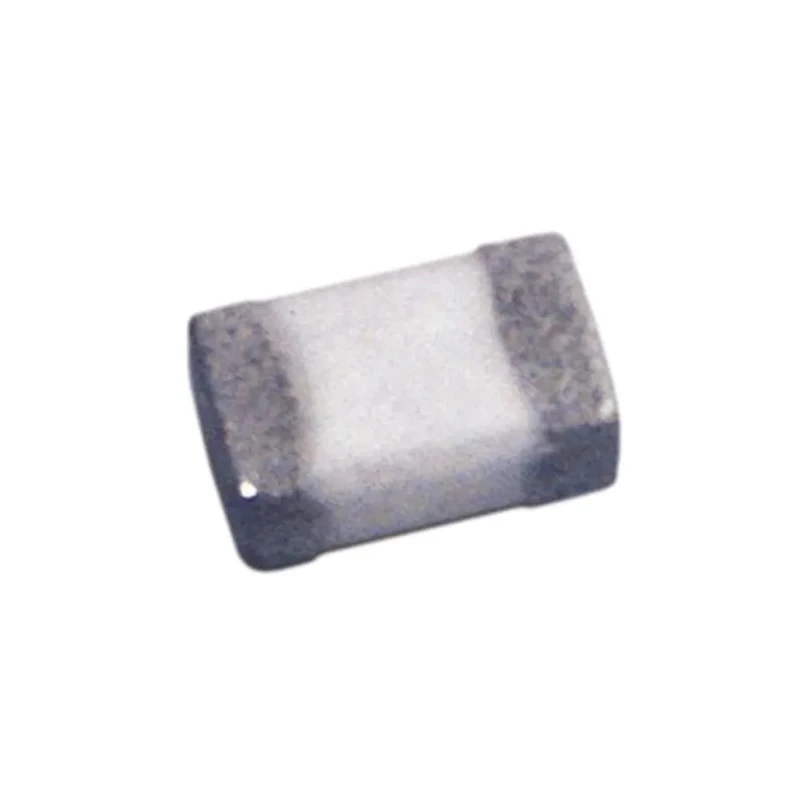

Wurth Elektronik 744786222A is a WE-MK series 0603 shielded multilayer surface mount inductor with a ceramic core providing 220 nH inductance and tight ±0.05% tolerance. This inductor is designed for demanding high-frequency applications including tuners, transponders, HF amplifiers, pagers, oscillators, laptops, PCMCIA cards, Bluetooth devices, wireless LAN, and filter circuits.
The multilayer construction uses printed windings on a ceramic substrate, making it suitable for reflow or wave soldering assembly processes. Its shielded design reduces EMI, ensuring stable inductance performance across a broad frequency range.
Key physical dimensions include a length of 1.6 mm, height and depth of 0.8 mm, fitting compact PCB layouts. It supports a maximum DC current of 200 mA with a maximum DC resistance of 2.4 Ω, maintaining efficient operation.
Operating temperature ranges from -55°C to 125°C, allowing use in automotive and industrial environments. The maximum self-resonant frequency of 350 MHz supports RF applications, and the minimum quality factor of 8 assures high efficiency.
Shielded multilayer ceramic construction enhances performance in high-frequency circuits. Precise ±0.05% inductance tolerance ensures accuracy for critical applications. Compact 0603 package for space-constrained designs.
Packaging via tape & reel supports automated manufacturing. Suitable for wireless communication, computer, and RF module applications.
Manufactured in China, this component meets standard quality and construction requirements. Explore more Surface Mount Inductors and passive components at EnvMart for your electronics manufacturing needs.
