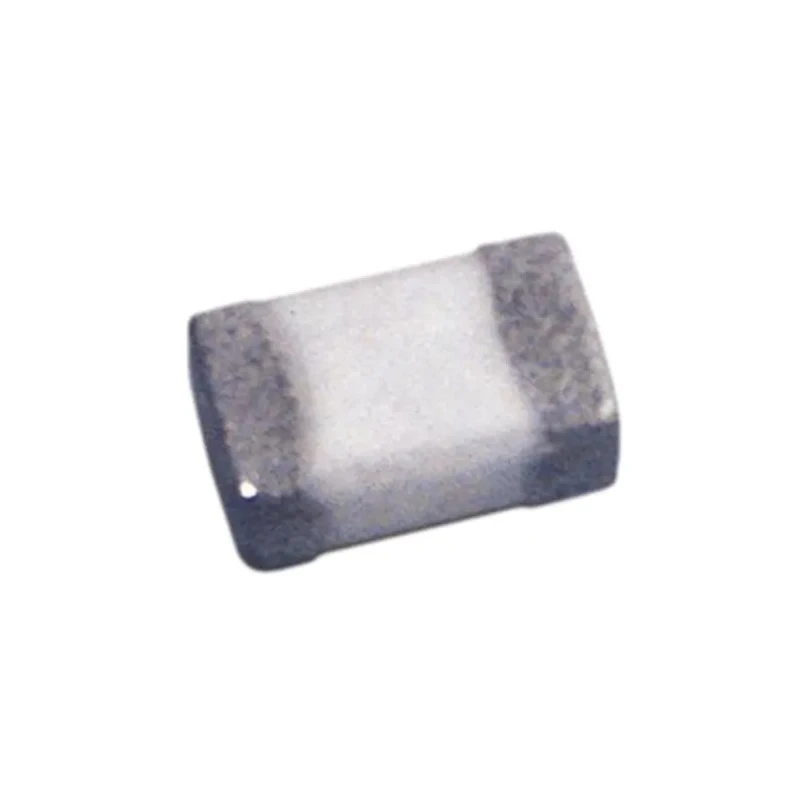

Wurth Elektronik 0402 Shielded Multilayer Surface Mount Inductor with Ceramic Core 33 nH ±0.05 % 200mA 74478433

Name: Wurth Elektronik 0402 Shielded Multilayer Surface Mount Inductor with Ceramic Core 33 nH ±0.05 % 200mA 74478433
Brand: Wurth Elektronik
SKU: 384834
Price: 0.06 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Brand	Wurth Elektronik
Height	0.5mm
Length	1mm
Model	74478433
Depth	0.5mm
Packaging	Tape & Reel
Series	WE-MK
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-40°C
Core Material	Ceramic
Inductance	33nH
Package/Case	0402
Maximum DC Current	200mA
Pin Count	2
Maximum DC Resistance	1Ω
Inductance Tolerance	±0.05 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	1.6GHz
Minimum Quality Factor	8
Inductor Construction	Multilayer

Key Features

Multilayer ceramic construction provides high stability over temperature.
Compact 0402 package size (1 mm length, 0.5 mm height and depth) for space-saving PCB design.
Shielding minimizes interference and enhances circuit performance.
Rated for a maximum DC current of 200 mA and maximum DC resistance of 1 Ω.
Operates reliably from -40°C to 120°C with a maximum self-resonant frequency of 1.6 GHz.
Moulded and surface mount termination style for easy assembly by reflow or wave soldering.
Ideal for high-frequency circuits such as pagers, oscillators, laptops, PCMCIA cards, Bluetooth, and wireless LAN filters.

Product Description

Wurth Elektronik 74478433 constitutes a 0402 shielded multilayer surface mount inductor featuring a ceramic core and a precise inductance of 33 nH with an extremely tight tolerance of ±0.05 %. Designed for new applications in electronic industries, this component supports currents up to 200 mA and operates effectively in the temperature range of -40°C to 120°C, providing reliability and performance.

The inductor's multilayer ceramic construction enables excellent inductance stability across temperature variations and high self-resonant frequency up to 1.6 GHz, confirming suitability for advanced high-frequency electronic circuits. With a compact footprint measuring 1 mm in length and 0.5 mm in height and depth, it fits dense printed circuit board layouts efficiently. The device is shielded to prevent electromagnetic interference, promoting signal integrity in sensitive equipment.

Manufactured with moulded surface mount terminations, the inductor is compatible with standard reflow and wave soldering processes, facilitating automated assembly lines in industrial manufacturing environments. Its low DC resistance of 1 Ω and a minimum quality factor of 8 add to its efficiency in filtering applications.

This Wurth Elektronik WE-MK Series inductor is ideal for industrial, telecommunications, computing, and consumer electronics sectors, including applications in pagers, oscillators, laptop computers, PCMCIA cards, Bluetooth modules, wireless LAN devices, and various filtering circuits.

Multilayer ceramic core ensures high stability and performance. Shielded design prevents electromagnetic interference. Compact 0402 package dimensions optimize PCB space. High self-resonant frequency supports high-speed circuits.

Surface mount technology allows automated assembly. Wide operating temperature range supports diverse environments. Low DC resistance minimizes power loss in circuits.

Country of origin: Taiwan, Province Of China. Product condition: New. Explore a wide range of Surface Mount Inductors and other electronic components at EnvMart to support your industrial and commercial electronic manufacturing projects.
