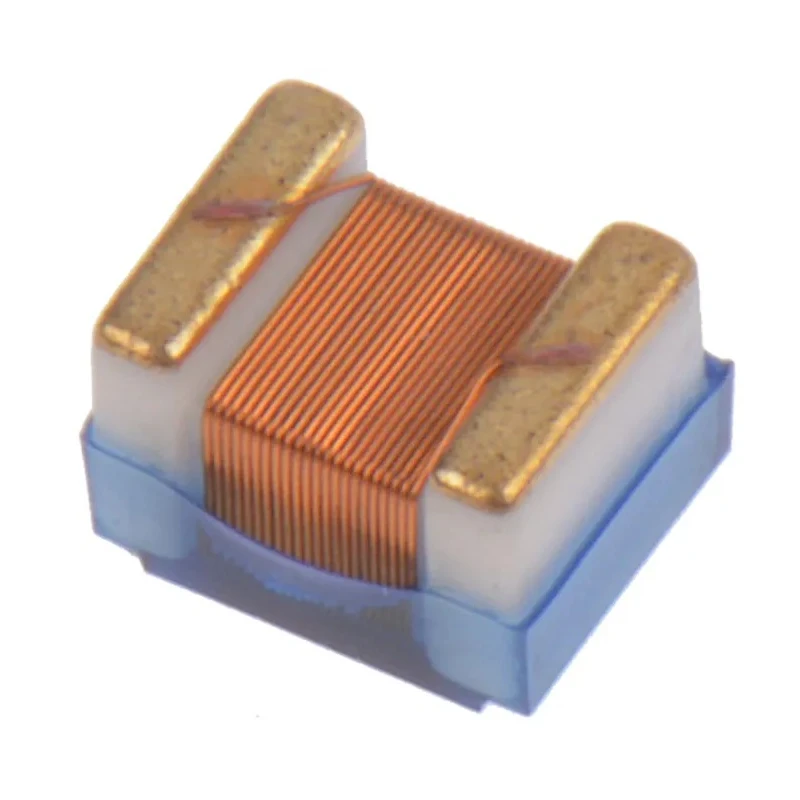

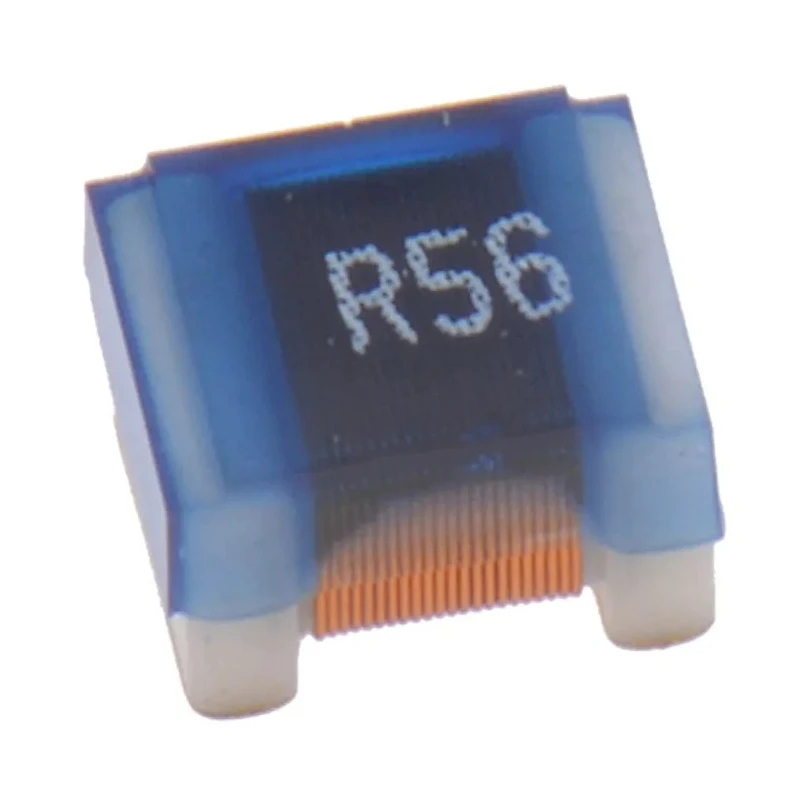

Wurth Elektronik WE-KI 1008A Shielded Wirewound Surface Mount Inductor 560 nH ±5% 310 mA 1.5Ω 430 MHz 744762256A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.6mm |
| Length | 2.5mm |
| Model | 744762256A |
| Depth | 2mm |
| Packaging | Tape & Reel |
| Series | WE-KI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 560nH |
| Standards/Approvals | REACH, RoHS |
| Package/Case | 1008A |
| Maximum DC Current | 310mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1.5Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 430MHz |
| Minimum Quality Factor | 45 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a maximum DC current of 310 mA with a maximum DC resistance of 1.5Ω.
- Constructed with a ceramic core and wirewound inductor construction for high frequency applications.
- Package size 1008A with dimensions 2.5mm length, 1.6mm height, and 2mm depth.
- Operating temperature range from -40°C to 125°C with AEC-Q200 automotive standard compliance.
- Supports a maximum self resonant frequency of 430 MHz and minimum quality factor of 45.
- Termination style is surface mount with shielding and moulded design for durability.
- RoHS and REACH compliant ensuring environmental standards.
Product Description
Wurth Elektronik 744762256A WE-KI 1008A series shielded wirewound surface mount inductor offers 560 nH inductance with ±5% tolerance designed for high frequency applications such as wireless LAN, Bluetooth, and RF transceiver communications.
Manufactured with a ceramic core and wirewound technology, this inductor features excellent thermal stability and a high quality factor, ensuring reliable performance in demanding industrial and electronic environments.
The compact 1008A package measures 2.5mm in length, 1.6mm in height, and 2mm in depth, suitable for surface mount PCB designs requiring high precision and minimal footprint.
It supports a maximum DC current of 310 mA, maximum DC resistance of 1.5Ω, and withstands operating temperatures from -40°C to 125°C, conforming to AEC-Q200 automotive standards making it appropriate for automotive and industrial use cases.
With a maximum self resonant frequency of 430 MHz alongside a minimum quality factor of 45, this inductor provides superior signal integrity and noise reduction due to its shielding and moulded design.
Packaging is tape and reel facilitating automated assembly processes. The component complies with RoHS and REACH standards, reflecting responsible manufacturing practices. Features a maximum DC current of 310 mA with a maximum DC resistance of 1.5Ω.
Constructed with a ceramic core and wirewound inductor construction for high frequency applications. Package size 1008A with dimensions 2.5mm length, 1.6mm height, and 2mm depth. Operating temperature range from -40°C to 125°C with AEC-Q200 automotive standard compliance.
Supports a maximum self resonant frequency of 430 MHz and minimum quality factor of 45. Termination style is surface mount with shielding and moulded design for durability. RoHS and REACH compliant ensuring environmental standards.
This Wurth Elektronik shielded wirewound inductor is ideal for industrial, telecommunications, automotive, and electronic manufacturing applications. For more high-performance inductors and related electronic components, browse the Surface Mount Inductors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance of 560 nH with a tolerance of ±5%.
It supports a maximum DC current of 310 mA.
The dimensions of the package are 2.5 mm in length, 1.6 mm in height, and 2 mm in depth.
The maximum self-resonant frequency is 430 MHz.
It operates within a temperature range of -40°C to 125°C.
It is constructed with a ceramic core.
The maximum DC resistance is 1.5Ω.
It conforms to the AEC-Q200 automotive standard.
The termination style is surface mount.
It is packaged in tape and reel format, facilitating automated assembly processes.
It complies with RoHS and REACH environmental standards.
This inductor is designed for high frequency applications such as wireless LAN, Bluetooth, and RF transceiver communications.
