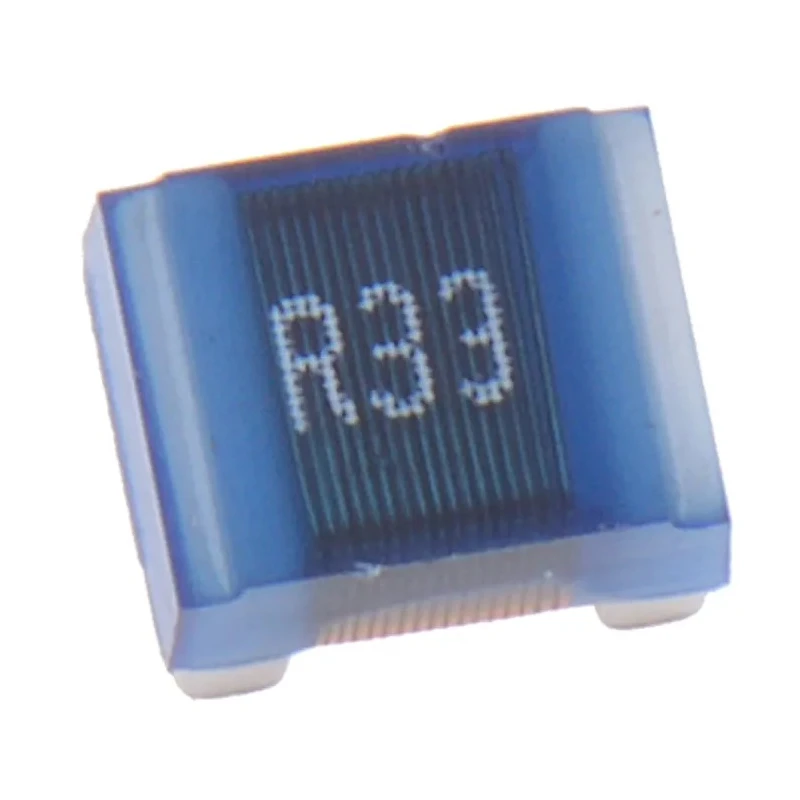

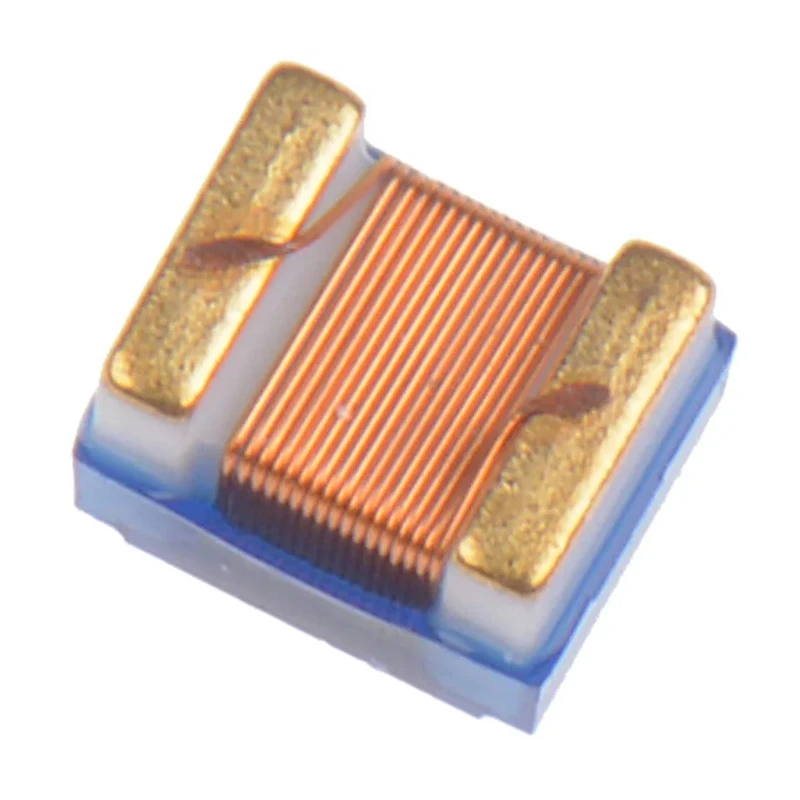

Wurth Elektronik Wirewound Surface Mount Inductor 330 nH 500 mA 1008A Ceramic Core WE-KI 744762233A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.6mm |
| Length | 2.5mm |
| Model | 744762233A |
| Depth | 2mm |
| Series | WE-KI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 330nH |
| Package/Case | 1008A |
| Maximum DC Current | 500mA |
| Maximum DC Resistance | 900mΩ |
| Maximum Self Resonant Frequency | 570MHz |
| Minimum Quality Factor | 45 |
| Inductor Construction | Wirewound |
Key Features
- Inductor features a wirewound construction for high frequency applications.
- Provides excellent thermal stability with a ceramic core.
- Maximum DC resistance is 900 milliohm ensuring efficient operation.
- Supports operation between -40°C and 125°C for versatile environments.
- Compact package size of 1008A with dimensions 2.5 mm x 1.6 mm x 2 mm.
- Maximum self-resonant frequency is 570 MHz with a minimum quality factor of 45.
- Ideal for wireless LAN, Bluetooth, and RF transceiver communication circuits.
- Recommended for reflow soldering compatible assembly processes.
Product Description
Wurth Elektronik 744762233A is a wirewound Surface Mount Inductor from the WE-KI series featuring a high-quality ceramic core. With an inductance of 330 nanohenries and supporting a maximum DC current of 500 milliamperes, this component offers reliable performance for high frequency electronic circuits.
The 1008A package with compact dimensions (length 2.5 mm, height 1.6 mm, depth 2 mm) allows space-saving PCB layouts. The inductor construction ensures a maximum DC resistance of only 900 milliohm, facilitating efficient power handling.
Thermal stability is excellent as it can operate from -40°C up to 125°C, suitable for demanding industrial and commercial applications. The maximum self-resonant frequency of 570 MHz combined with a high quality factor of at least 45 enhances signal integrity in RF applications.
These inductors are recommended for wireless LAN, Bluetooth communication, and RF transceiver circuitry, providing stable induction and filtering in compact electronics. The wirewound ceramic design offers high reliability and durability under typical reflow soldering processes.
Wirewound construction for high frequency use. Ceramic core for improved thermal and electrical stability. Compact 1008A SMD package. Operating temperature range from -40°C to 125°C. Maximum DC resistance 900 milliohm. Maximum self-resonant frequency up to 570 MHz.
Minimum quality factor (Q) of 45. Suits wireless LAN, Bluetooth, and RF transceiver circuits.
Manufactured in Malaysia, this Wurth Elektronik WE-KI series inductor meets high standards for industrial and commercial electronics applications. For professionals seeking excellent RF filtering and compact mounting solutions, this component provides an optimal balance of performance and size.
Discover more quality electronic components at EnvMart and enhance your projects with trusted Wurth Elektronik products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 330 nanohenries (nH).
The maximum DC current for this inductor is 500 milliamperes (mA).
The dimensions of the 1008A package are 2.5 mm in length, 1.6 mm in height, and 2 mm in depth.
The maximum self-resonant frequency of this model is 570 megahertz (MHz).
This inductor has a minimum quality factor (Q) of 45.
It can operate in a temperature range from -40°C to 125°C.
This inductor features a ceramic core material.
The maximum DC resistance is 900 milliohm (mΩ).
It is recommended for use in wireless LAN, Bluetooth, and RF transceiver circuits.
This model has a wirewound construction, which is suitable for high frequency applications.
This inductor is manufactured in Malaysia.
It is recommended for reflow soldering compatible assembly processes.
