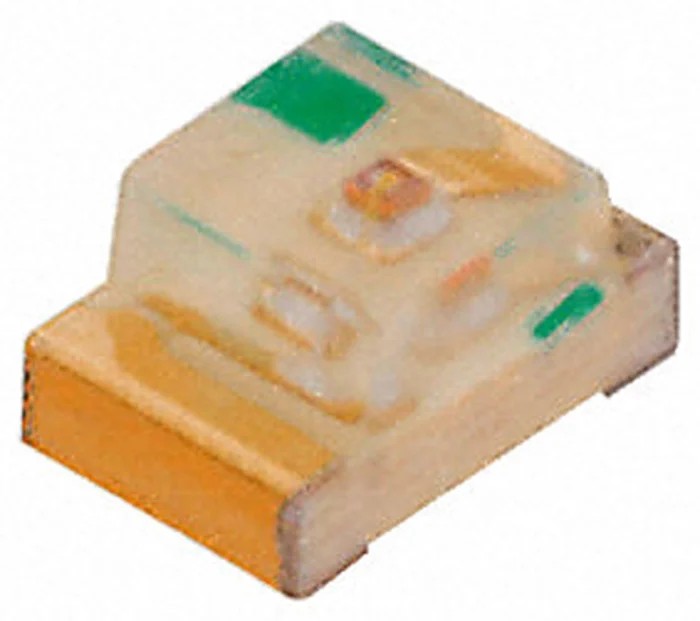

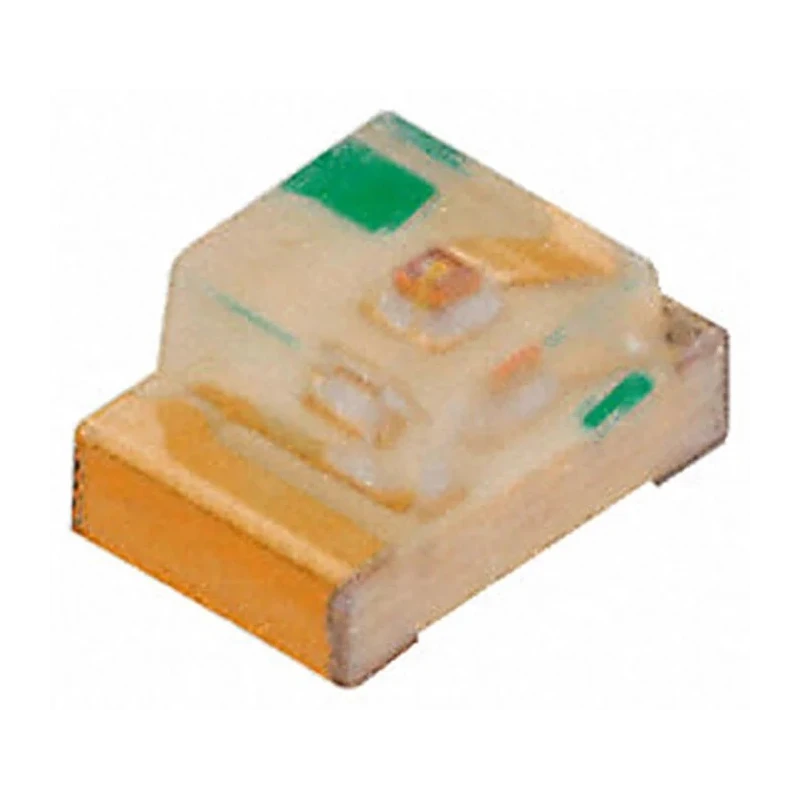

Kingbright Infrared LED 940 nm Radiant Intensity 3mW/sr Surface Mount 2012 Package KP-2012F3C

Free Delivery in India | Lowest Global Shipping Charges

Kingbright Infrared LED 940 nm Radiant Intensity 3mW/sr Surface Mount 2012 Package KP-2012F3C

Name: Kingbright Infrared LED 940 nm Radiant Intensity 3mW/sr Surface Mount 2012 Package KP-2012F3C
Brand: Kingbright
SKU: 383150
Price: 0.22 USD
Availability: InStock



Category Infrared LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Dimensions	2 x 1.25 x 1.1 mm
Model	KP-2012F3C
Packaging	Tape & Reel
Mount Type	Surface
Number Of Leds	1
Viewing angle	120°
Package Type	2012
Standards/Approvals	CIE 127-2007
Number of Pins	2
Lens Shape	Rectangular
Maximum Supply Voltage	1.6V
Peak Wavelength	940nm
LED Material	GaAs
Angle of half intensity	120°
Radiant Intensity	3mW/sr

Key Features

Features a 2012 standard surface mount package with compact dimensions of 2 x 1.25 x 1.1 mm.
Emits infrared light at a peak wavelength of 940 nm with radiant intensity of 3 mW/sr.
Constructed with GaAs LED material ensuring durability and reliability.
Designed with a rectangular lens shape and a wide viewing angle of 120 degrees for effective illumination.
Operates at a maximum supply voltage of 1.6 V suitable for low voltage circuits.
Packaged in tape and reel format enabling efficient automated assembly.
Complies with CIE 127-2007 standards for performance consistency.
Consists of 1 LED and 2 pins for straightforward PCB integration.

Product Description

Kingbright KP-2012F3C Infrared LED is a high-quality surface mount device designed for industrial and electronic component applications requiring infrared light emission. With a peak wavelength of 940 nm, this IR LED delivers a radiant intensity of 3 mW/sr and operates at a maximum supply voltage of 1.6 V making it suitable for sensitive electronic circuits.

Encased in the standard 2012 (0805) package footprint, this Chip LED features compact dimensions of just 2 mm length, 1.25 mm width, and 1.1 mm height. Its rectangular lens shape combined with a wide 120° viewing angle ensures broad coverage for infrared sensing, detection, and illumination tasks.

Constructed using GaAs (Gallium Arsenide) semiconductor material, the LED provides reliable performance with consistent optical output. The device contains a single LED element with two pins configured for surface mount assembly and tape and reel packaging suited to automated manufacturing environments.

Designed to comply with CIE 127-2007 standards, this component meets rigorous quality and performance criteria. The Kingbright KP-2012F3C is ideal for applications in electronics manufacturing, optical sensing, security systems, and industrial automation requiring precise IR light sources.

The product is manufactured in China and represents Kingbright’s commitment to durable and efficient IR LED technology. Features a 2012 standard surface mount package with compact dimensions of 2 x 1.25 x 1.1 mm. Peak wavelength at 940 nm for infrared applications.

Radiant intensity of 3 mW/sr ensures effective IR emission. Rectangular lens with 120° viewing angle for wider illumination. Tape & Reel packaging for streamlined PCB assembly. Operates at maximum supply voltage of 1.6 V.

Complies with CIE 127-2007 standard. Manufactured in China. Explore Kingbright IR LEDs and other electronic components at EnvMart for reliable industrial and electronic applications.
