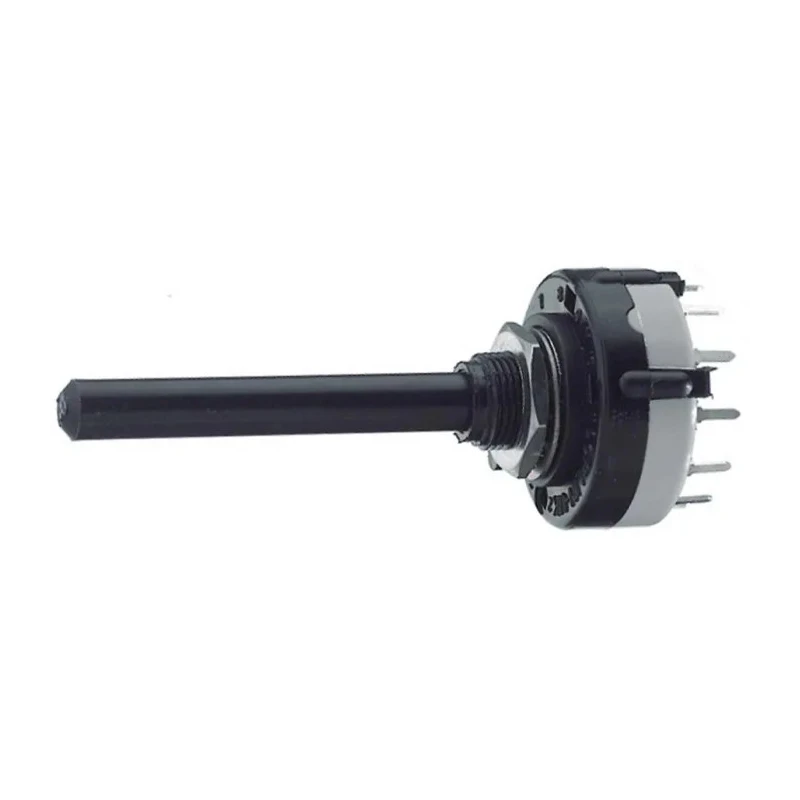

Lorlin 3 Position 4PST Rotary Switch 150mA, Panel Mount, Polyamide 66 Housing CK1062

Lorlin CK1062 3 Position 4PST Rotary Switch is a robust rotary switch designed for industrial and electrical applications requiring precise multi-position selection with low current switching. It features a polyamide 66 housing providing durability and reliability in various environments.

This rotary switch has 3 positions and 4 poles with 4PST contact configuration allowing simultaneous switching of four separate circuits. It supports a switch contact current of 150mA, suitable for control signals in automation and panel instrumentation.

The switch is rated for a maximum AC voltage of 250V and DC voltage of 24V, ensuring compatibility with standard industrial electrical circuits. Operating temperature ranges from -30°C to 85°C endorse its use in harsh conditions. The device mounts easily on panels with secure solder-type terminals for firm electrical connection.

The physical dimensions include a 27.5mm diameter housing with equivalent width and a height of 71.1mm, making it compact and easy to integrate within control panels. The spindle is 6mm diameter and 50mm long, featuring a M10x0.75mm threaded bush, facilitating easy knob mounting without flat sections for knob collets.

The switch provides a 90° angle of throw and a mechanical life spanning 10,000 cycles, ensuring long-term operational reliability. It also complies with RoHS environmental standards and is manufactured in the United Kingdom, assuring quality and compliance.

Offers 3 selectable switch positions for precise control. Includes 4 poles with 4PST contact configuration. Rated for 150mA contact current at 250V AC and 24V DC. Compact dimensions with polyamide 66 durable housing. Designed for panel mount installation using solder terminals.

Operates reliably within -30°C to 85°C temperature range. Mechanical life rated for 10,000 cycles for long service. Spindle diameter 6mm, length 50mm with threaded bush. 90° angle of throw for smooth switching action. RoHS compliant and manufactured in the United Kingdom.

This rotary switch is ideal for electrical automation, industrial control panels, instrumentation, and other applications requiring reliable, low-current multi-position rotary switching. Explore a wide range of Rotary Switches with precise specifications for your industrial electronics needs at EnvMart.
