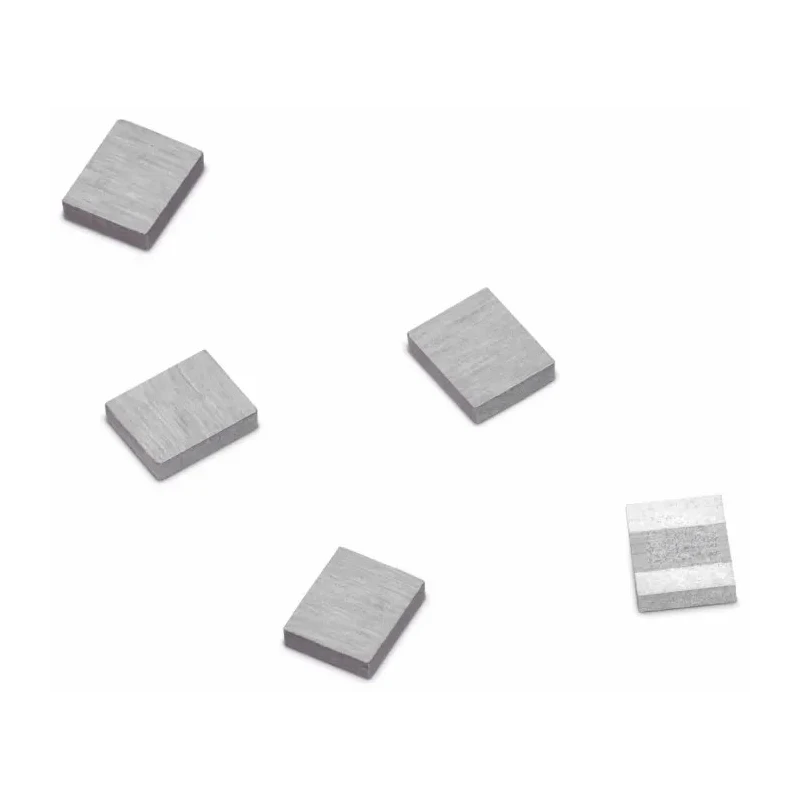

Wurth Elektronik WE-MAPI 2512 Shielded Wirewound Surface Mount Inductor with Magnetic Iron Alloy Core 10 μH ±20 % 74438324100
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.2mm |
| Length | 2.5mm |
| Depth | 2mm |
| Packaging | Tape & Reel |
| Series | WE-MAPI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Magnetic Iron Alloy |
| Inductance | 10μH |
| Standards/Approvals | IEC 61249-2-21, RoHS, REACH, JEDEC JS709B |
| Package/Case | 2512 |
| Maximum DC Current | 700mA |
| Maximum DC Resistance | 780mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 23MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact 2512 package size with 2.5mm length, 2mm depth, and 1.2mm height.
- Magnetic iron alloy core with wirewound construction for enhanced magnetic performance.
- Supports a maximum DC current of 700mA, suitable for power supplies and converters.
- Features shielding to reduce acoustic noise and leakage flux.
- Operating temperature range from -40°C to 125°C for reliability.
- Meets automotive standard AEC-Q200 ensuring high quality and durability.
- Maximum DC resistance of 780mΩ with maximum self-resonant frequency of 23MHz.
- Provided in Tape & Reel packaging for efficient SMT assembly.
Product Description
Wurth Elektronik 74438324100 WE-MAPI 2512 Shielded Wirewound Surface Mount Inductor delivers 10 μH inductance with ±20 % tolerance in a compact surface mount package. It utilizes a magnetic iron alloy core and wirewound construction to provide high rated currents up to 700mA and handle transient current spikes effectively. The shielding minimizes acoustic noise and leakage flux, making it suitable for sensitive electronic applications.
This inductor supports a temperature range from -40°C to 125°C, allowing operation under harsh conditions. It complies with AEC-Q200 automotive standards along with IEC 61249-2-21, RoHS, REACH, and JEDEC JS709B certifications to ensure environmental and quality compliance.
The 2512 package measures 2.5mm in length, 2mm in depth, and 1.2mm in height, optimized for surface mount technology. It features a maximum DC resistance of 780mΩ and a maximum self-resonant frequency of 23MHz, supporting high-frequency circuit designs.
Typical applications include DC/DC converters for high current power supplies, FPGA power delivery, POL converters, portable consumer devices such as PDAs and digital cameras, mainboards, graphic cards, battery-powered devices, wireless communications, and power supplies for smartphones and tablets.
Packaged in tape and reel format, this inductor facilitates efficient automated PCB assembly. The robust magnetic iron alloy core construction combined with precise tolerance and shielding makes it an excellent choice for industrial, automotive, and commercial electronic component applications.
Compact 2512 package size with 2.5mm length, 2mm depth, and 1.2mm height. Magnetic iron alloy core with wirewound construction for enhanced magnetic performance. Supports a maximum DC current of 700mA, suitable for power supplies and converters.
Features shielding to reduce acoustic noise and leakage flux. Operating temperature range from -40°C to 125°C for reliability. Meets automotive standard AEC-Q200 ensuring high quality and durability. Maximum DC resistance of 780mΩ with maximum self-resonant frequency of 23MHz.
Provided in Tape & Reel packaging for efficient SMT assembly. Compliant with IEC 61249-2-21, RoHS, REACH, and JEDEC JS709B standards. Explore high quality Wurth Elektronik inductors for your industrial and electronic design needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 10 μH with a tolerance of ±20%.
It supports a maximum DC current of 700mA, making it suitable for various power supply applications.
The inductor measures 2.5mm in length, 2mm in depth, and 1.2mm in height.
It operates within a temperature range of -40°C to 125°C, suitable for harsh environments.
The maximum self-resonant frequency is 23MHz, allowing it to be used in high-frequency applications.
It features a magnetic iron alloy core, which enhances its magnetic performance.
It meets AEC-Q200 automotive standards along with IEC 61249-2-21, RoHS, REACH, and JEDEC JS709B certifications.
It is provided in Tape & Reel packaging, which facilitates efficient SMT assembly.
The maximum DC resistance is 780mΩ, which is important for minimizing power loss.
Typical applications include DC/DC converters, FPGA power delivery, and power supplies for portable devices.
It has a wirewound construction, which contributes to its performance in electronic circuits.
The termination style is surface mount, making it compatible with modern PCB designs.
