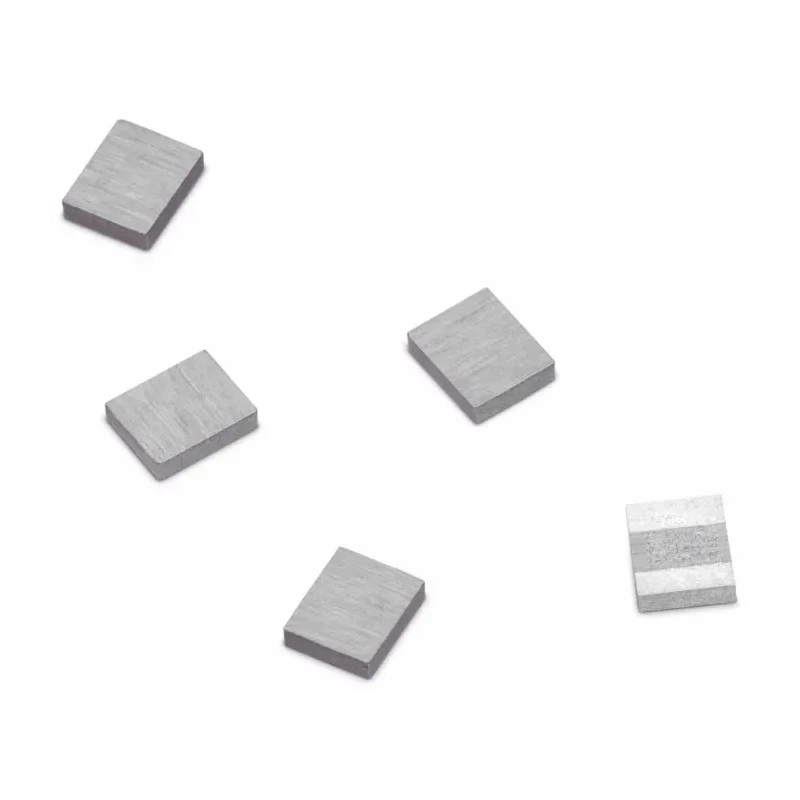

Wurth Elektronik 2512 WE-MAPI Shielded Wirewound Surface Mount Inductor with Magnetic Iron Alloy Core 10μH ±20% 74438324100
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.2mm |
| Length | 2.5mm |
| Depth | 2mm |
| Packaging | Tape & Reel |
| Series | WE-MAPI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Magnetic Iron Alloy |
| Inductance | 10μH |
| Standards/Approvals | IEC 61249-2-21, RoHS, REACH, JEDEC JS709B |
| Package/Case | 2512 |
| Maximum DC Current | 700mA |
| Maximum DC Resistance | 780mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 23MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact 2512 package size suitable for surface mount applications.
- Rated maximum DC current of 700mA for efficient current handling.
- Operates reliably within a temperature range of -40°C to 125°C.
- Low DC resistance of 780mΩ minimizes power loss.
- Designed with magnetic shielding to reduce acoustic and leakage flux noise.
- Compliant with automotive standard AEC-Q200 for robust automotive usage.
- Wirewound construction with magnetic iron alloy core ensures high transient current spike tolerance.
- Maximum self-resonant frequency of 23MHz for stable performance.
Product Description
Wurth Elektronik 74438324100 WE-MAPI series inductors are shielded wirewound components with a magnetic iron alloy core and a 2512 surface mount package. They offer an inductance of 10μH with a tolerance of ±20%, designed for efficient power handling in industrial, automotive, and electronic applications.
These inductors are capable of handling a maximum DC current of 700mA and operate reliably in temperatures ranging from -40°C to 125°C. The wirewound construction coupled with magnetic shielding significantly reduces acoustic noise and leakage flux, making them well suited for sensitive power supply circuits.
The components feature a low maximum DC resistance of 780mΩ, enabling efficient power management with minimal losses. Their maximum self-resonant frequency is 23MHz, ensuring stable operation within common frequency ranges.
The WE-MAPI series inductors comply with automotive standard AEC-Q200 and internationally recognized standards including IEC 61249-2-21, RoHS, REACH, and JEDEC JS709B, supporting environmental and safety requirements.
Common applications include DC/DC converters for high current power supplies, field programmable gate arrays (FPGAs), point-of-load (POL) converters, portable power devices such as PDAs and digital cameras, mainboards, graphic cards, wireless communication devices, and power supplies for smartphones and tablets.
These inductors come tape and reel packaged to facilitate automated manufacturing processes, ensuring production efficiency and component protection. Compact 2512 surface mount package. Magnetic iron alloy core with wirewound construction.
Magnetically shielded to reduce noise and flux leakage. High current rating with 700mA maximum DC current. Wide operating temperature range from -40°C to 125°C. Low DC resistance of 780mΩ to improve efficiency. Compliant with AEC-Q200 automotive standard.
Suitable for a range of electronic and automotive power applications. Delivered in tape and reel packaging for ease of assembly. Explore more electronic components and Surface Mount Inductors from Wurth Elektronik through EnvMart for all your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 10μH with a tolerance of ±20%.
It has a maximum DC current rating of 700mA, allowing for efficient current handling.
This model operates reliably within a temperature range of -40°C to 125°C.
The maximum self-resonant frequency is 23MHz, ensuring stable performance in common frequency ranges.
It features a low maximum DC resistance of 780mΩ, which minimizes power loss.
This inductor complies with automotive standard AEC-Q200 and other standards including IEC 61249-2-21, RoHS, REACH, and JEDEC JS709B.
It is constructed using a wirewound design with a magnetic iron alloy core, providing high transient current spike tolerance.
It is delivered in tape and reel packaging, which facilitates automated manufacturing processes.
The inductor has dimensions of 2.5mm in length, 2mm in depth, and 1.2mm in height.
Common applications include DC/DC converters, field programmable gate arrays (FPGAs), point-of-load converters, and power supplies for portable devices.
It uses a surface mount termination style, making it suitable for various electronic applications.
The country of origin for this inductor is Korea.
