Hirose DF40 Series Straight Surface PCB Socket 80-Contact 2 Row 0.4 mm Pitch Solder

Free Delivery in India | Lowest Global Shipping Charges

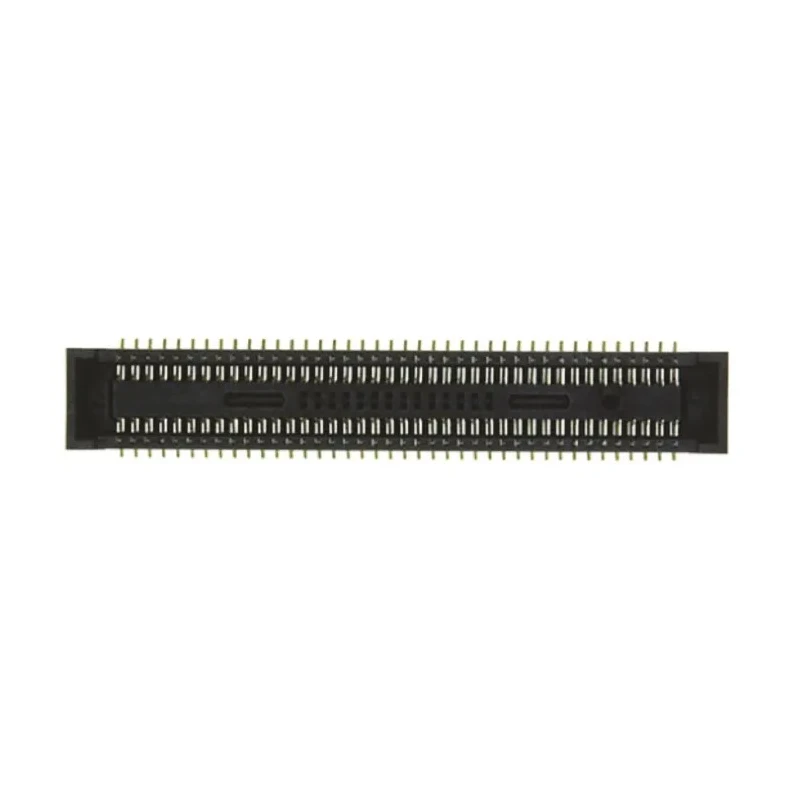

Hirose DF40 Series Straight Surface PCB Socket 80-Contact 2 Row 0.4 mm Pitch Solder

Name: Hirose DF40 Series Straight Surface PCB Socket 80-Contact 2 Row 0.4 mm Pitch Solder
Brand: Hirose
SKU: 381087
Price: 3.55 USD
Availability: InStock



Category PCB Socket Brand Hirose Condition New

Specifications

Country of Origin	Japan
Voltage	30V
Brand	Hirose
Orientation	Straight
Current	300mA
Model	DF40
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper
Series	DF40
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-35°C
Number of Rows	2
Pitch	0.4mm
Contact Plating	Gold
Number of Contacts	80
Contact Gender	Female
Connector System	Board-to-FPC, Board-to-Board
Stacking Height	4mm
Row Pitch	2.38mm

Key Features

Features a low profile design with a stacking height of 4 mm.
Constructed with a Liquid Crystal Polymer housing for durability.
Supports 30 V operating voltage and 300 mA current capacity.
Includes gold-plated copper contacts to ensure superior conductivity.
Equipped with a locking mechanism providing tactile click for mating assurance.
Designed with guide ribs allowing 0.33 mm self-alignment during mating.
Reinforced housing structure with shock absorbing ribs for impact resistance.
Contamination resistant design protects contacts from dust and debris.

Product Description

Hirose DF40HC(4.0)-80DS-0.4V(58) Straight Surface PCB Socket is a high-density, low-profile electrical connector designed for board-to-board and board-to-FPC applications. It features 80 female contacts arranged in 2 rows with a fine 0.4 mm pitch, providing reliable interconnects in compact electronic devices.

The connector housing is made of Liquid Crystal Polymer, offering excellent mechanical strength and chemical resistance suitable for harsh industrial environments. It supports an operating voltage of 30 V and current up to 300 mA, making it ideal for low power circuitry.

This DF40 series socket includes a locking mechanism that emits a tactile click upon mating, ensuring secure connection. The guide ribs facilitate self-alignment within 0.33 mm, enhancing assembly precision and reducing the risk of misalignment. Shock absorbing ribs reinforce the structure to withstand mechanical impacts and vibrations.

The gold-plated copper contacts ensure high conductivity and durability, while nickel-plated barriers prevent solder wicking during assembly. The solder termination and surface mount technology (SMT) type mount enable easy soldering and stable PCB attachment.

The socket is designed with a stacking height of 4 mm and includes a protective housing that shields contacts from contaminants and shorts. These features make it highly suitable for compact electronics such as mobile phones, developer chipsets, LCD panels, notebook PCs, and keyboards.

Low profile and high contact density design. Durable Liquid Crystal Polymer housing. Reliable gold-plated copper contacts. Locking mechanism with audible click for assurance. Self-aligning guide ribs for precise mating. Shock absorbing ribs for impact resistance.

Contamination resistant contact protection. Suitable for mobile and miniature electronic devices. Explore EnvMart's extensive selection of Hirose PCB Sockets and connectors for advanced industrial and electronic applications.
