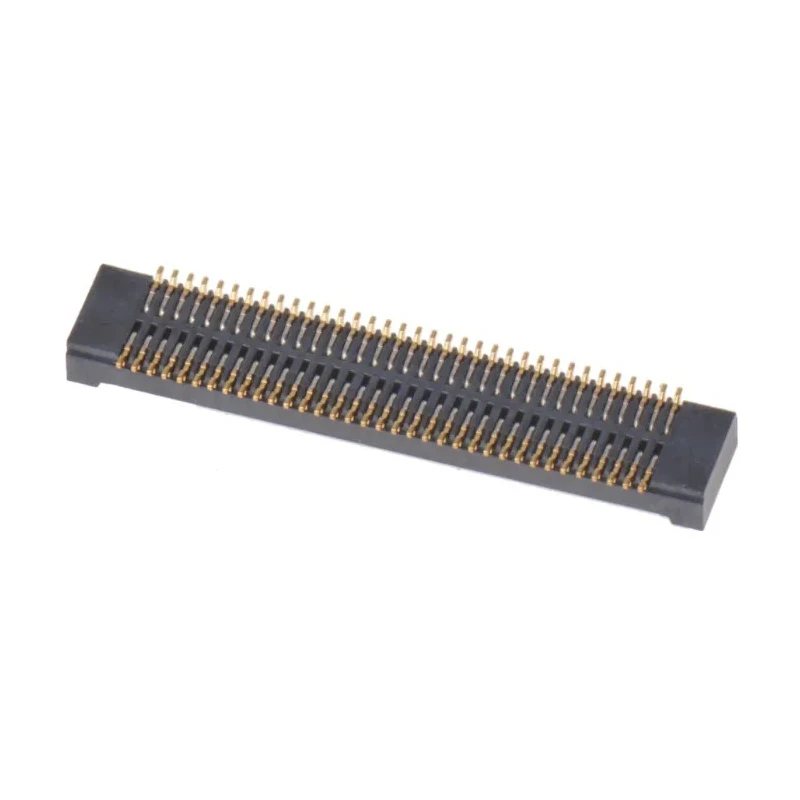

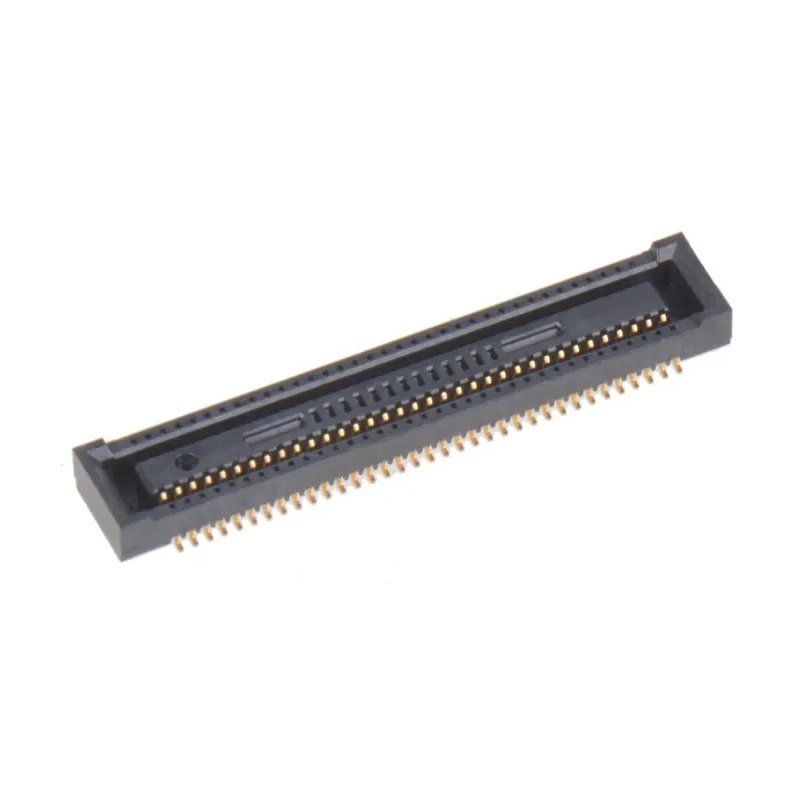

Hirose DF40 Series Straight Surface PCB Socket, 70-Contact, 2 Row, 0.4 mm Pitch, 30V, 300mA, Liquid Crystal Polymer Housing

Hirose DF40C-70DS-0.4V(58) is a Straight Surface PCB Socket from the DF40 Series featuring 70 contacts arranged in 2 rows with a 0.4 mm pitch, designed to support reliable board-to-board and board-to-FPC connections. Operating at a voltage of 30V and a current rating of 300mA, this socket uses high-quality Liquid Crystal Polymer for the housing which provides excellent mechanical and thermal stability.

The connector incorporates gold-plated copper female contacts to ensure high contact reliability and corrosion resistance. Nickel plated barriers effectively prevent solder wicking during assembly, while the locking mechanism produces a tactile click sensation confirming secure mating.

Guide ribs enable self-alignment allowing a tolerance of 0.33 mm during the mating process, protecting the connectors from misalignment. Reinforced shock absorbing ribs provide durability by protecting against impacts and vibrations, essential in industrial, commercial, and consumer electronic applications.

This DF40 series socket supports a stacking height of 4mm for design flexibility and compactness, suitable for high-density mounting requirements of miniature devices like mobile phones, display modules, developer chip sets, and notebook keyboards.

The operating temperature range from -35°C to 85°C makes it well-suited for various environmental conditions ensuring performance stability. The housing covers the contacts when mated, safeguarding against dust, debris, and short circuits.

Constructed with Liquid Crystal Polymer housing for durability and heat resistance. Features gold-plated copper female contacts for enhanced conductivity and corrosion resistance. Offers a high density, low profile design suitable for space-saving applications.

Equipped with a locking mechanism producing tactile click for mating assurance. Includes guide ribs to enable self-alignment during mating. Nickel plated barriers prevent solder wicking, ensuring solder joint integrity. Designed to withstand operating temperatures ranging from -35°C to 85°C.

Provides a stacking height of 4mm optimizing mounting versatility. Ideal for miniature electronic devices such as mobile phones, LCD displays, and Notebook PCs.

This product is manufactured in Japan, assuring high-quality standards and reliability. Explore more Hirose connectors and related PCB Socket products for your industrial, laboratory, and commercial electronic needs at EnvMart.
