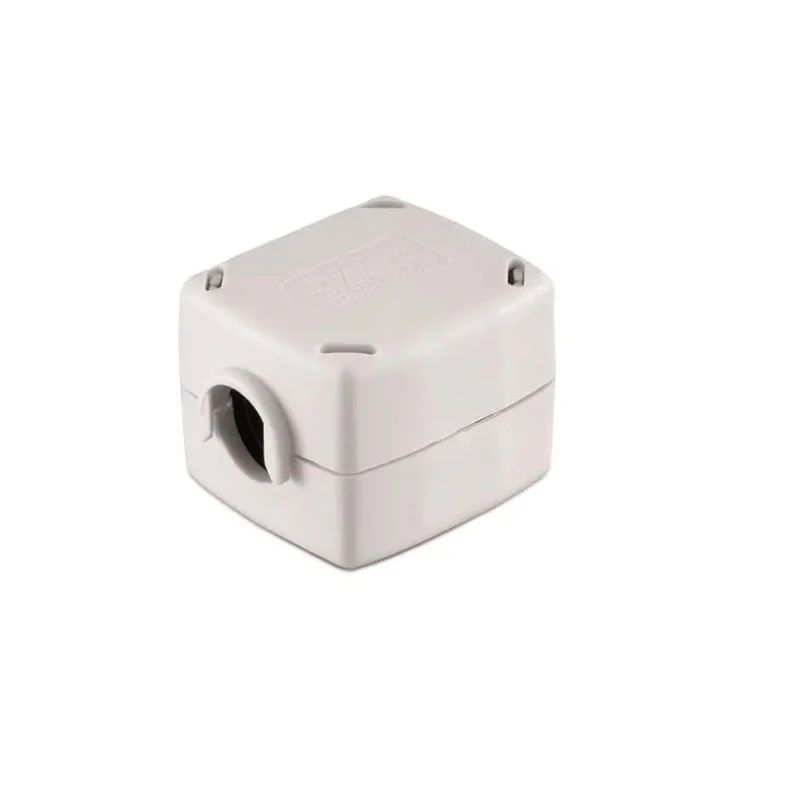

Wurth Elektronik Openable Snap Ferrite Sleeve STAR-TEC Series Diameter 12.5 mm, External 33.5x42.2x28.8 mm 74271222S

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Openable Snap Ferrite Sleeve STAR-TEC Series Diameter 12.5 mm, External 33.5x42.2x28.8 mm 74271222S

Name: Wurth Elektronik Openable Snap Ferrite Sleeve STAR-TEC Series Diameter 12.5 mm, External 33.5x42.2x28.8 mm 74271222S
Brand: Wurth Elektronik
SKU: 376237
Price: 7.45 USD
Availability: InStock



Category Ferrite Sleeve Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Germany
Brand	Wurth Elektronik
Material	4W620
Model	74271222S
Series	STAR-TEC
Aperture diameter	12.5mm
Sub Type	Snap Ferrite
External Width	42.2mm
External Depth	33.5mm
External Height	28.8mm
Standards/Approvals	REACH, RoHS
Impedance at 100 MHz	175Ω
Impedance at 25 MHz	145Ω
Number of Apertures	1
Wurth Elektronik Openable, Diameter 12.5 mm Ferrite Sleeve, Apertures	1 33.5 mm 28.8 mm 42.2 mm, For General

Key Features

Constructed from 4W620 material ensuring quality performance.
Features STAR-TEC series snap ferrite design with cable pinch protection.
Openable design allows easy installation and removal for measurement and cable access.
Suitable for internal and external computer data and power cables, industrial, medical, and office machine applications.
Equipped with a plastic housing providing mechanical protection and compliance with UL94-V0 standards.
Security lock prevents unauthorized removal; note the safety key is sold separately.
Certifications include REACH and RoHS compliance from Germany manufacturing.

Product Description

Wurth Elektronik 74271222S snap ferrite sleeve is engineered for reducing electromagnetic interference in data and power cables. This openable ferrite sleeve from the STAR-TEC series is made with 4W620 ferrite material, offering impedance of 145Ω at 25 MHz and 175Ω at 100 MHz. The device features a split ferrite core enclosed in a robust UL94-V0 plastic housing ensuring durability and ease of installation without projecting parts.

The aperture diameter of 12.5 mm with external dimensions of 33.5 mm depth, 42.2 mm width, and 28.8 mm height accommodates a variety of cable diameters. Its snap-lock mechanism prevents accidental opening after installation and provides cable pinch protection, making it ideal for use in computers, industrial controllers, medical devices, and office machinery.

The ferrite sleeve is suitable for both general and safety-relevant applications, addressing electromagnetic interference effectively in sensitive environments. The housing protects core halves from damage, and installation can be performed on pre-installed cables or connectors. Optional securing via glue or cable ties is possible. Please note, the safety key for unlocking (Wurth Elektronik part 74271) must be purchased separately.

Manufactured in Germany, this ferrite sleeve adheres to REACH and RoHS standards, ensuring environmental and safety compliance. Constructed from 4W620 material for effective EMI attenuation. STAR-TEC snap ferrite design with cable pinch protection and security lock.

Openable sleeve eases measurement and cable installation. External dimensions 33.5x42.2x28.8 mm with aperture diameter 12.5 mm. Suitable for general, safety-relevant, industrial, medical, and office machine use cases. Housing complies with UL94-V0 safety and mechanical standards.

REACH and RoHS compliant, manufactured in Germany. Safety key sold separately for secure locking.

This Wurth Elektronik snap ferrite sleeve is an essential component for engineers and technicians focused on EMI mitigation in complex electronic assemblies. Explore more from the Ferrite Sleeve category at EnvMart to find complementary components and advanced EMI protection solutions.
