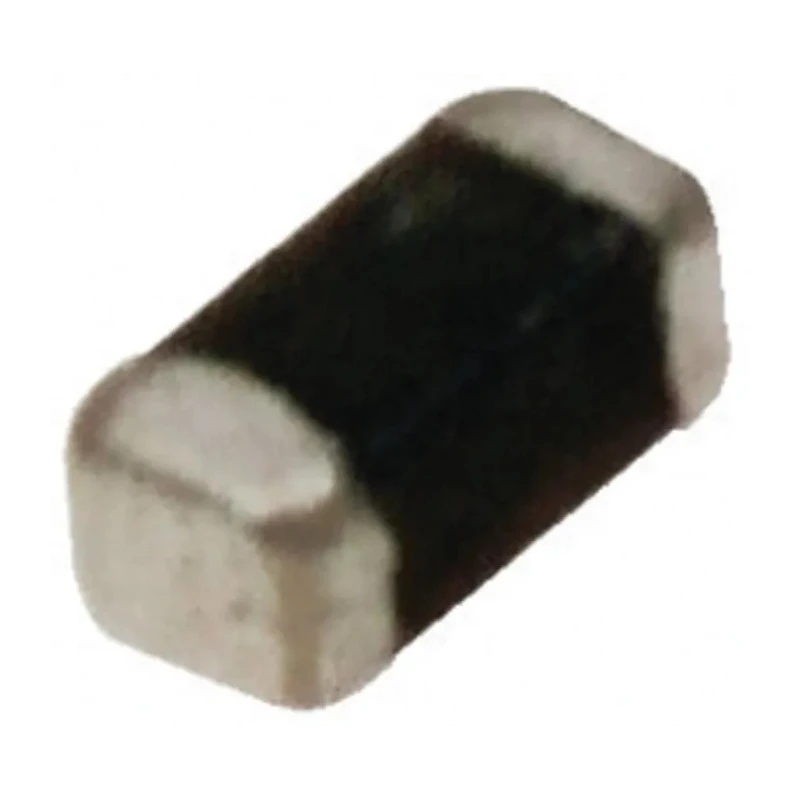

Murata 0.5 mm Solder Mount 0402 Chip Ferrite Bead 600 Ω Impedance at 100 MHz BLM15AX601SN1D

Murata BLM15AX601SN1D Chip Ferrite Bead is a compact 0.5 mm high, 0402 surface-mount device designed for EMI noise suppression in electronic circuits. With an impedance of 600 Ω at 100 MHz, it effectively reduces EMI without distorting the signal waveform.

Constructed with ferrite material and featuring nickel barrier external electrodes, it offers excellent solder heat resistance, making it suitable for robust manufacturing processes. The bead has a maximum DC resistance of 340mΩ and supports a current rating of 500mA, optimal for general-purpose applications.

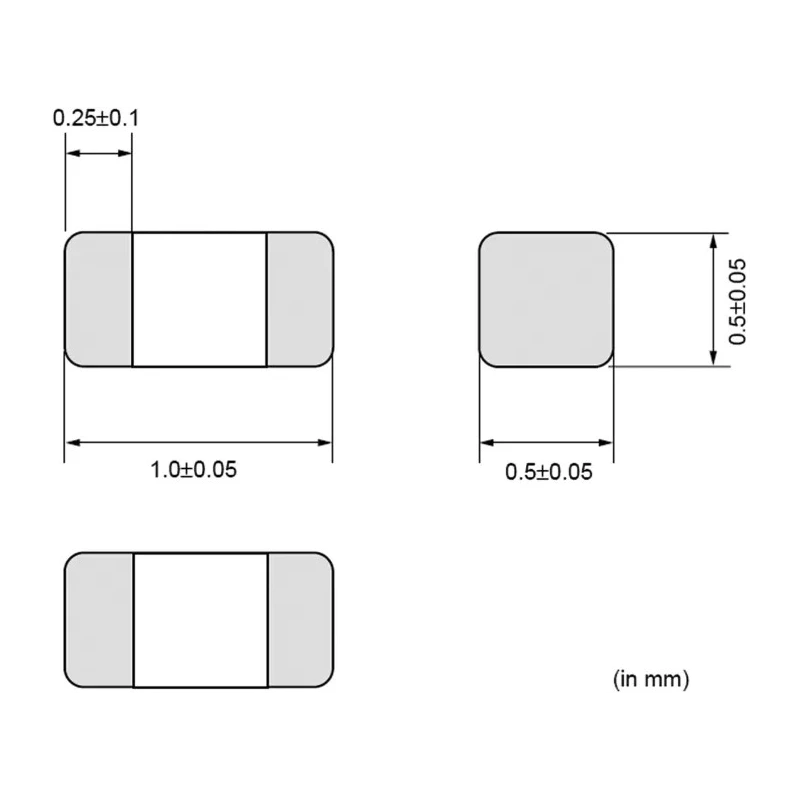

Operating reliably within a temperature range of -55°C to 125°C, this 2-pin ferrite bead is designed to handle varied environmental conditions. It is mounted via solder in the 0402 package size (1 mm length, 0.5 mm height and depth), fitting standard printed circuit boards in electronic devices.

Murata's BLM15AX series utilizes advanced ferrite materials to provide stable noise suppression performance over a broad frequency range from 30 MHz to several hundred MHz, suitable for use in circuits with unstable ground lines and noise issues.

The compact 0402 package supports space-efficient PCB designs. Ferrite construction minimizes EMI while preserving signal integrity. High heat resistance extends reliability during soldering processes. Wide operating temperature range ensures performance in diverse industrial environments.

Low DC resistance reduces power dissipation in circuits. 600 Ω impedance at 100 MHz effectively suppresses high-frequency noise. Designed for general purpose and EMI suppression filter applications. Complies with RoHS standards for environmental safety.

This Ferrite Bead is ideal for use in electronics manufacturing, industrial, and commercial devices requiring EMI noise suppression to improve signal quality and device reliability. Explore our selection for high-quality EMI filters and protection components.
