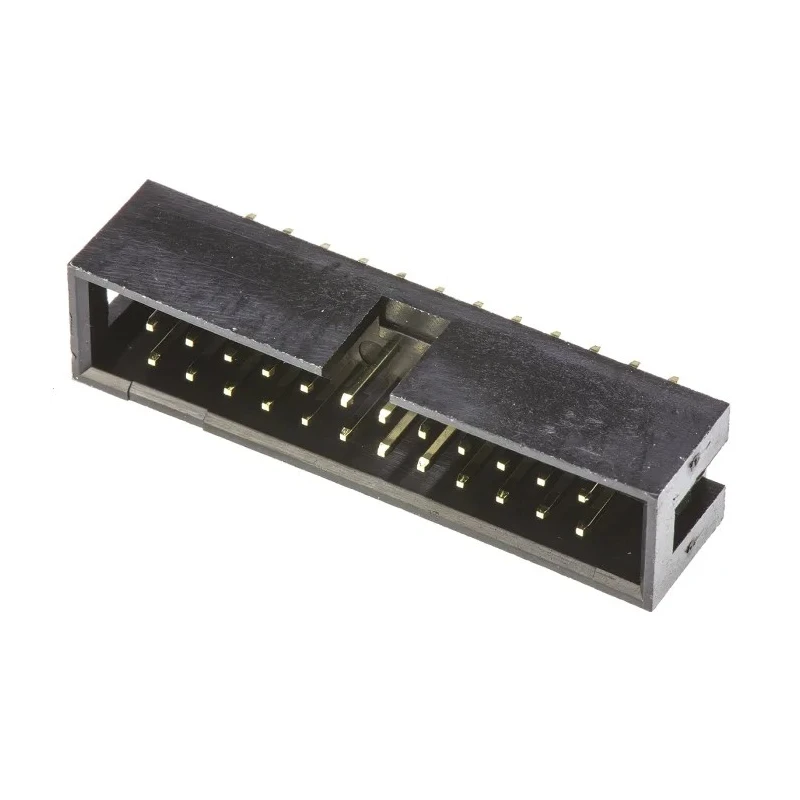

Amphenol Communications Solutions T821 Series 26 Contacts 2.54 mm Pitch 2 Row Straight Through Hole PCB T821126A1S100CEU
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 3A |
| Model | T821126A1S100CEU |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | T821 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.3mm |
| Mating Pin Length | 5.7mm |
Key Features
- Features 26 male contacts arranged in 2 rows with 2.54 mm pitch.
- Constructed with thermoplastic housing rated UL 94V-0 for flame resistance.
- Contacts are brass material with gold plating for reliable conductivity.
- Designed for through hole mounting and solder termination.
- Operating temperature range from -40°C to 105°C ensures durability.
- Rated for 3A current and 250V voltage for electrical safety.
- Tail pin length of 3.3 mm and mating pin length of 5.7 mm for secure mechanical and electrical connection.
Product Description
Amphenol Communications Solutions T821126A1S100CEU is a high-quality 26-contact, 2 row, straight through hole PCB header from the T821 Series, featuring a 2.54 mm pitch. This PCB header connector is engineered for reliable wire-to-board connections in electronic circuits and assemblies.
The connector's housing is made from black UL 94V-0 rated thermoplastic, providing excellent flame retardant properties essential for electrical safety. Contacts are made of brass and plated with gold flash to ensure long-lasting conductivity and corrosion resistance in demanding environments.
Designed for through hole mounting, the header facilitates robust mechanical bonding and solder termination. It operates effectively over a wide temperature range from -40°C to 105°C, making it suitable for various industrial and commercial applications.
The T821126A1S100CEU supports current up to 3A and voltage up to 250V, fulfilling the needs of mid-range electronic devices and control systems. Its 3.3 mm tail pin length and 5.7 mm mating pin length ensure secure and stable mating with corresponding connectors.
This PCB header finds application in electrical and electronic assemblies across industrial manufacturing, automation, communications, and control systems where reliable connector interfaces are mandatory.
Features 26 male contacts arranged in 2 rows with 2.54 mm pitch. Constructed with thermoplastic housing rated UL 94V-0 for flame resistance. Contacts are brass material with gold plating for reliable conductivity. Designed for through hole mounting and solder termination.
Operating temperature range from -40°C to 105°C ensures durability. Rated for 3A current and 250V voltage for electrical safety. Tail pin length of 3.3 mm and mating pin length of 5.7 mm for secure mechanical and electrical connection.
EnvMart offers a comprehensive selection of PCB Header connectors including the Amphenol T821 Series, catering to demanding electronics manufacturing and design professionals who require durable and high-performance interconnect components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features 26 male contacts arranged in 2 rows with a 2.54 mm pitch.
The T821126A1S100CEU is rated for a maximum voltage of 250V.
It is rated for a maximum current of 3A.
The housing is made from thermoplastic, while the contacts are brass with gold plating for conductivity.
It operates effectively within a temperature range from -40°C to 105°C.
It is designed for through hole mounting and solder termination.
The tail pin length is 3.3 mm, and the mating pin length is 5.7 mm.
It utilizes a wire-to-board connector system.
This model is shrouded, providing additional protection for the contacts.
The country of origin for this product is China.
It is suitable for electrical and electronic assemblies in industrial manufacturing, automation, communications, and control systems.
This model belongs to the T821 Series.
