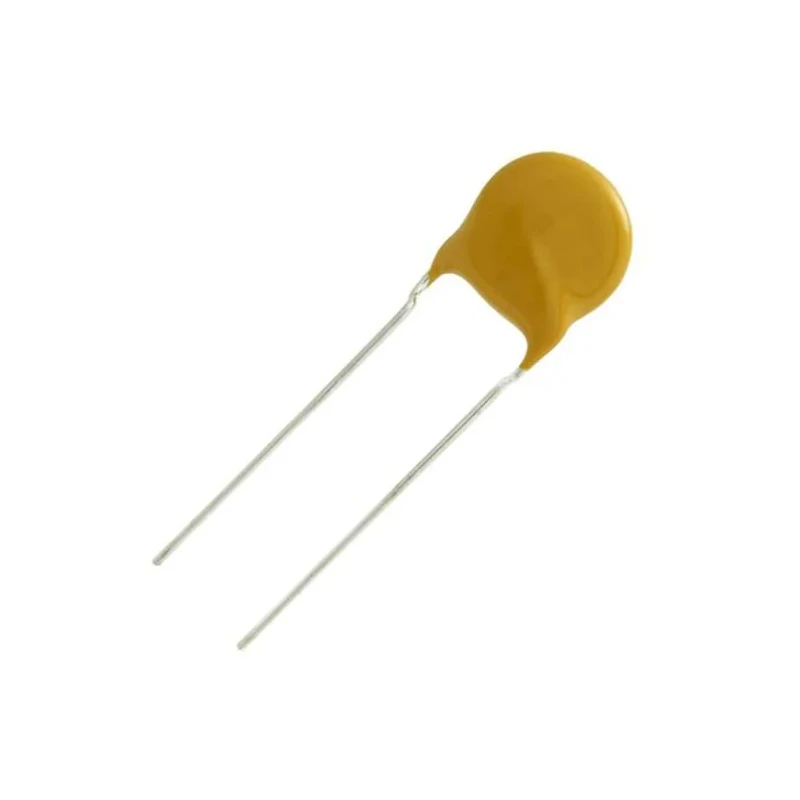

Vishay Single Layer Ceramic Capacitor 33 pF 1kV ±5 % U2J (N750) Dielectric, Through Hole Radial, 561R 561R10TCCQ33

Free Delivery in India | Lowest Global Shipping Charges

Vishay Single Layer Ceramic Capacitor 33 pF 1kV ±5 % U2J (N750) Dielectric, Through Hole Radial, 561R 561R10TCCQ33

Name: Vishay Single Layer Ceramic Capacitor 33 pF 1kV ±5 % U2J (N750) Dielectric, Through Hole Radial, 561R 561R10TCCQ33
Brand: Vishay
SKU: 379940
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Vishay Condition New

Specifications

Country of Origin	India
Voltage	1kV
Diameter	9.4mm
Brand	Vishay
Model	561R10TCCQ33
Packaging	Tape & Reel
Width	4mm
Mount Type	Through Hole
Series	561R
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	33pF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Pin Count	2
Dielectric	U2J (N750)
Suppression Class	Class I

Key Features

Dielectric type is U2J (N750) ensuring stable performance.
Mounting type is through hole with radial terminal type.
Designed for a maximum operating temperature of 105 °C.
Package supplied on tape and reel for automated assembly.
Features diameter of 9.4 mm and width of 4 mm.
Operating temperature range from -55 °C to 105 °C.
Meets RoHS and IEC 61249-2-21, 2002/95/EC standards.
Pin count is 2 for standard connections.

Product Description

Vishay 561R10TCCQ33 Single Layer Ceramic Capacitor is a high-quality passive electronic component designed for applications requiring precise capacitance and high voltage tolerance. This capacitor features a capacitance value of 33 pF and supports operation at voltages up to 1 kV, making it suitable for use in high-voltage circuits.

The capacitor is constructed with a U2J (N750) dielectric material, which ensures temperature stability and reliability in various operating conditions. Its radial terminal design accommodates through-hole mounting, providing durability and secure installation.

It has a diameter of 9.4 mm and a width of 4 mm, designed for compact footprints on printed circuit boards (PCBs). The capacitor operates efficiently within a temperature range of -55 °C to 105 °C, suitable for industrial and commercial electronic equipment.

Supplied in tape and reel packaging, this capacitor is compatible with automated assembly lines, enhancing manufacturing efficiency. The product complies with RoHS, IEC 61249-2-21, and 2002/95/EC environmental and safety standards, ensuring safe usage in regulated markets.

The 561R series from Vishay is known for reliability and consistent electrical performance, making this component ideal for industrial instruments, communication devices, and control systems.

Dielectric type U2J (N750) for temperature stability. Radial terminal with through-hole mounting for secure installation. Compliance with RoHS and IEC standards for environmental safety. Operating temperature from -55 °C to 105 °C for wide application range.

Supplied on tape and reel for automated manufacturing processes. 33 pF capacitance with ±5 % tolerance ensures precision. Voltage rating of 1 kV for high voltage applications. Compact dimensions supporting PCB space optimization.

This capacitor is widely used in electronics manufacturing, laboratory instrumentation, communication equipment, and various industrial applications requiring stable and reliable capacitance. Choosing Vishay 561R10TCCQ33 guarantees compliance with quality and safety regulations as well as dependable performance.
