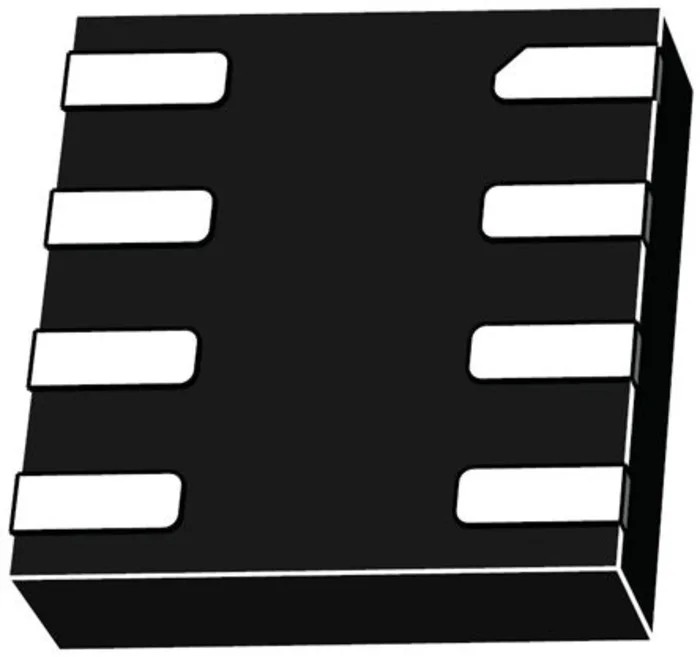

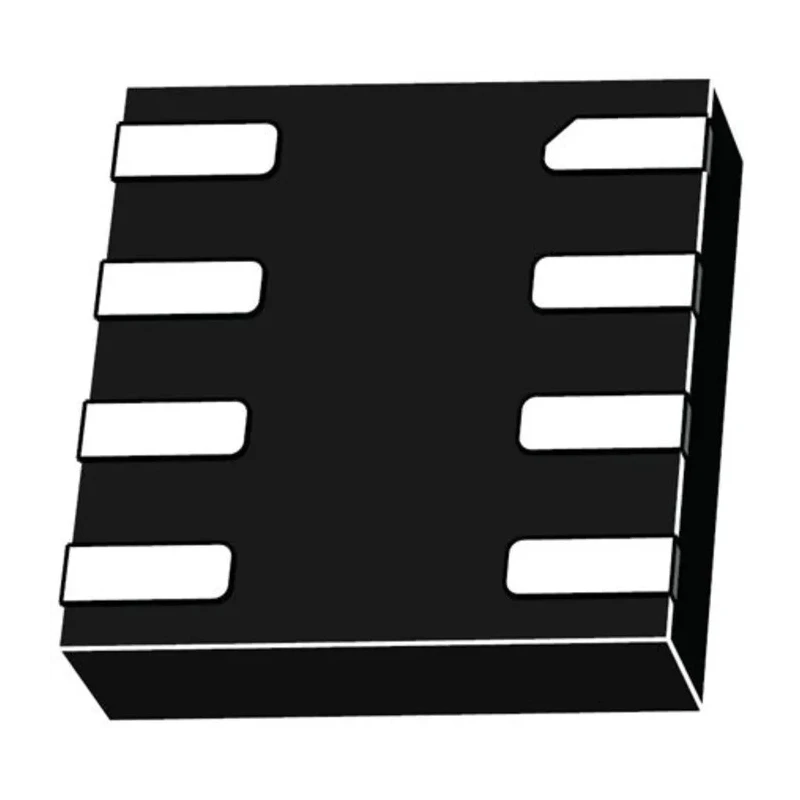

STMicroelectronics Operational Amplifier Dual Channel 900 kHz Gain Bandwidth Surface Mount 5.5V DFN 8-Pin TSX562IQ2T
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.75mm |
| Length | 2mm |
| Model | TSX562IQ2T |
| Width | 2mm |
| Mount Type | Surface |
| Series | TSX562 |
| Output Current | 2.5mA |
| Maximum Operating Temperature | 125°C |
| Package Type | DFN |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 900kHz |
| Input Bias Current | 200 pA |
| Vos - Input Offset Voltage | 2.2 mV |
| Slew Rate | 1.1V/μs |
| ESD high tolerance | 4 kV |
| Gain bandwidth product | 900 kHz typical |
| Wide temperature range | -40°C to +125°C |
| Low input bias current | 1 pA typical |
Key Features
- Offers a typical gain bandwidth product of 900 kHz for precision amplification.
- Operates over a supply voltage range from 3 V to 5.5 V using a low power of 235 μA.
- Provided in an 8-pin DFN surface mount package with compact 2 mm × 2 mm × 0.75 mm dimensions.
- Features low input offset voltage of 2.2 mV and input bias current of 200 pA for high accuracy.
- Complies with RoHS standards and meets automotive AEC-Q100 qualification.
- Supports a wide operating temperature range from -40°C to 125°C, suitable for industrial applications.
- Designed for automotive, industrial, and consumer electronics requiring low noise and precision signal amplification.
- High ESD tolerance of 4 kV ensures robustness in harsh electrical environments.
Product Description
STMicroelectronics TSX562IQ2T is a dual channel CMOS operational amplifier combining high precision, low power consumption, and a typical gain bandwidth of 900 kHz. This device operates at supply voltages from 3 V up to a maximum of 5.5 V, making it suitable for low voltage applications.
It is housed in a compact 8-pin DFN surface mount package measuring 2 mm by 2 mm with a height of 0.75 mm, facilitating space-saving circuit designs. The amplifier is optimized for use in automotive, industrial, and consumer electronics environments where accuracy and reliability are critical.
Featuring input offset voltage of 2.2 mV and input bias current of 200 pA, the TSX562IQ2T provides stable and precise signal amplification. The device is capable of operating over a wide temperature range from -40°C to 125°C, meeting automotive standard AEC-Q100 for quality and reliability under extreme conditions.
The operational amplifier includes robust ESD protection rated at 4 kV, enhancing device durability and longevity in challenging electrical environments. Additionally, it offers a typical slew rate of 1.1 V/μs, enabling it to effectively handle dynamic signals in various applications.
This amplifier is widely used in industrial instrumentation, automotive control systems, signal conditioning, data acquisition systems, and other precision analog signal processing applications where low noise and power efficiency are required.
Typical gain bandwidth product of 900 kHz for accurate amplification. Low supply current consumption of 235 μA at 5 V. Wide operating voltage range between 3 V and 5.5 V. Input offset voltage of 2.2 mV and input bias current of 200 pA ensure precision.
Meets automotive AEC-Q100 qualification for reliability. Extensive operating temperature range from -40°C to 125°C. Compact 8-pin DFN surface mount package measuring 2 mm × 2 mm × 0.75 mm. High ESD tolerance of 4 kV protects against electrical damage.
Slew rate of 1.1 V/μs supports dynamic analog signals.
