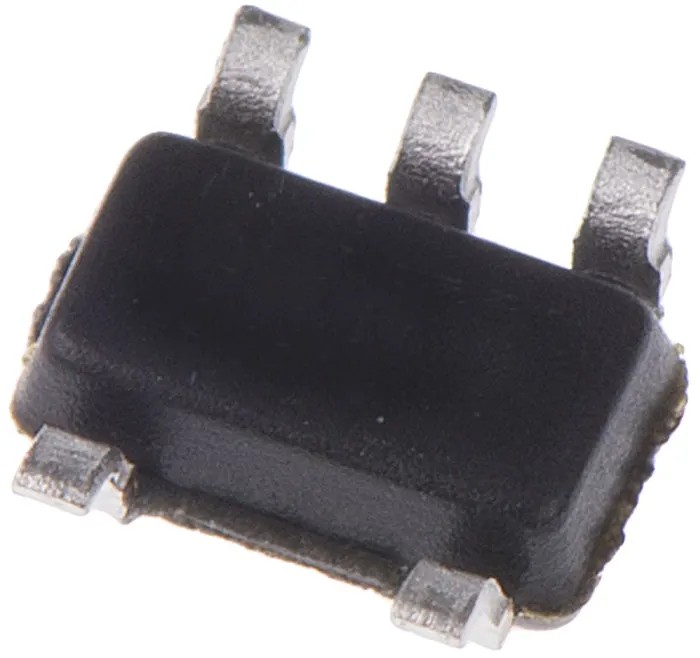

STMicroelectronics Operational Amplifier, 16 MHz Gain Bandwidth, 16V SOT-23, 5-Pin TSX9291ILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | TSX9291ILT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TSX9291 |
| Output Current | 13mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 4V |
| GBP - Gain Bandwidth Product | 16MHz |
| Input Bias Current | 200 pA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 30V/μs |
| ESD high tolerance | 4 kV (HBM) |
| Gain bandwidth product | 16 MHz typical (16 V) |
| Extended temperature range | -40°C to +125°C |
Key Features
- Wide supply voltage range from 4 V to 16 V for versatile applications.
- Low input bias current of 200 pA ensures precise signal amplification.
- Input offset voltage of 5 mV provides stable and accurate operation.
- High slew rate of 30 V/μs for rapid signal response.
- Operating temperature range from -40°C to +125°C suitable for automotive use.
- Output current capability of 13 mA for driving demanding loads.
- RoHS compliant and AEC-Q100 automotive standard qualified component.
Product Description
STMicroelectronics TSX9291ILT is a high-performance operational amplifier designed for demanding industrial and automotive applications. Featuring a gain bandwidth product of 16 MHz and a low supply current of 2.8 mA at 16 V, this amplifier delivers precise amplification with excellent signal integrity.
It operates over a wide supply voltage range from 4 V to 16 V and meets strict automotive standards including AEC-Q100 qualification and 4 kV HBM ESD tolerance. The device supports an extended temperature range from -40°C to +125°C, making it reliable in harsh environments. Its rail-to-rail input/output capability ensures maximum dynamic range.
The TSX9291ILT comes in a compact 5-pin SOT-23 surface mount package with dimensions 3 mm by 1.75 mm by 1.3 mm, ideal for space constrained PCB layouts. Wide supply voltage range from 4 V to 16 V for versatility. Low input bias current of 200 pA for precision applications.
Input offset voltage of 5 mV ensures accurate signal processing. High slew rate of 30 V/μs enables fast signal transitions. Robust operation from -40°C to +125°C for automotive and industrial use. Output current capability of 13 mA to drive various loads.
Meets RoHS compliance and AEC-Q100 automotive standard certifications. Compact 5-pin SOT-23 package suitable for surface mount technology.
This Operational Amplifier is suitable for industrial controls, automotive sensors, instrumentation, and other precision electronics requiring reliable signal amplification under extreme conditions.
Explore more high-quality semiconductor components and amplifiers on EnvMart for your industrial and electronic design needs.
