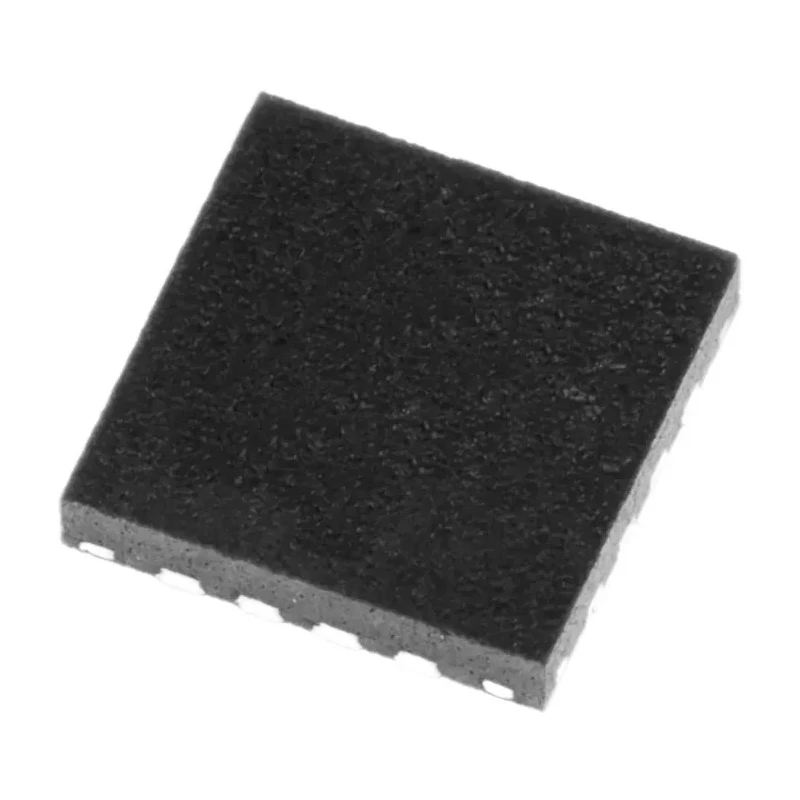

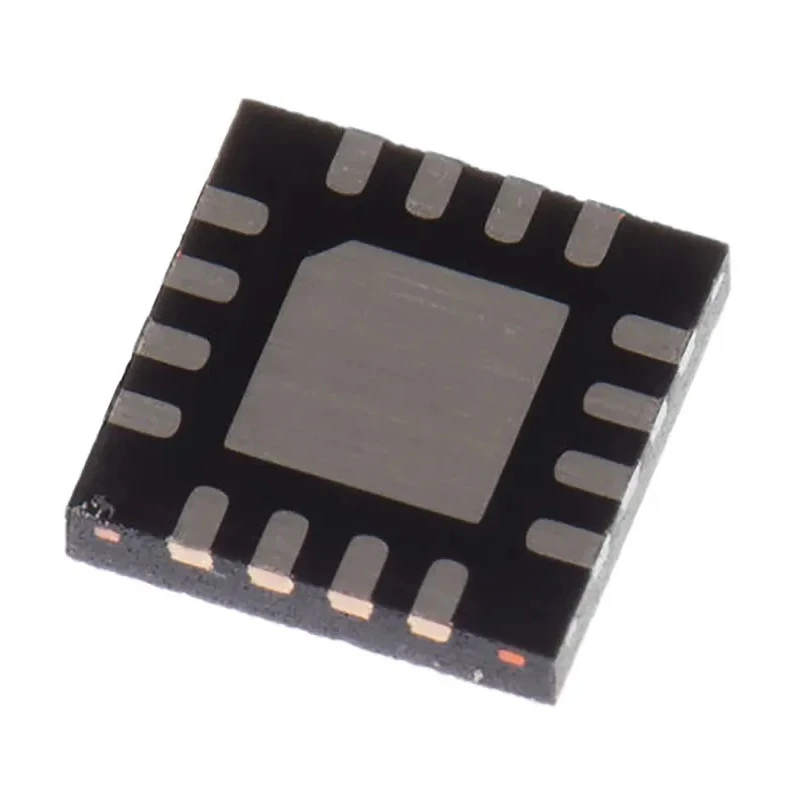

STMicroelectronics Operational Amplifier 900 kHz 16-Pin Surface Mount QFN TSX564IQ4T

STMicroelectronics TSX564IQ4T quad operational amplifier is designed for applications requiring high precision and low power consumption. It operates with a gain bandwidth product of 900 kHz, providing excellent frequency response in a compact 16-pin QFN surface mount package sized 3 mm by 3 mm and 0.6 mm in height. The device functions over a supply voltage range from 3 V to 5.5 V, with a low typical supply current of 235 µA at 5 V, enhancing energy efficiency in battery-powered and portable systems.

Low input bias current and offset voltage ensure precise signal amplification in measurement and control circuits. The amplifier is qualified to the automotive standard AEC-Q100, making it suitable for harsh environments requiring stringent reliability and performance. It offers a wide operating temperature range from -40°C to 125°C, supporting use in automotive, industrial, and consumer electronics.

The compact QFN package facilitates easy surface mount assembly and supports four independent amplifier channels in a single device, optimizing board space and simplifying designs. Additionally, it features high electrostatic discharge (ESD) tolerance of 4 kV, enhancing robustness against electrical surges.

Operates at supply voltage range from 3 V to 5.5 V. Quad-channel 16-pin QFN surface mount package. Gain bandwidth product of 900 kHz typical. Low input bias current of 200 pA and low offset voltage of 2.2 mV. Wide temperature range of -40°C to 125°C.

Automotive qualified to AEC-Q100 standard. Slew rate of 1.1 V/μs enables fast signal changes. High ESD tolerance of 4 kV for enhanced protection.

This operational amplifier is ideal for industrial, automotive, and precision measurement applications where low power consumption, reliability, and package density are critical. Explore more STMicroelectronics Operational Amplifiers and related semiconductor components on EnvMart to match your design requirements precisely.
