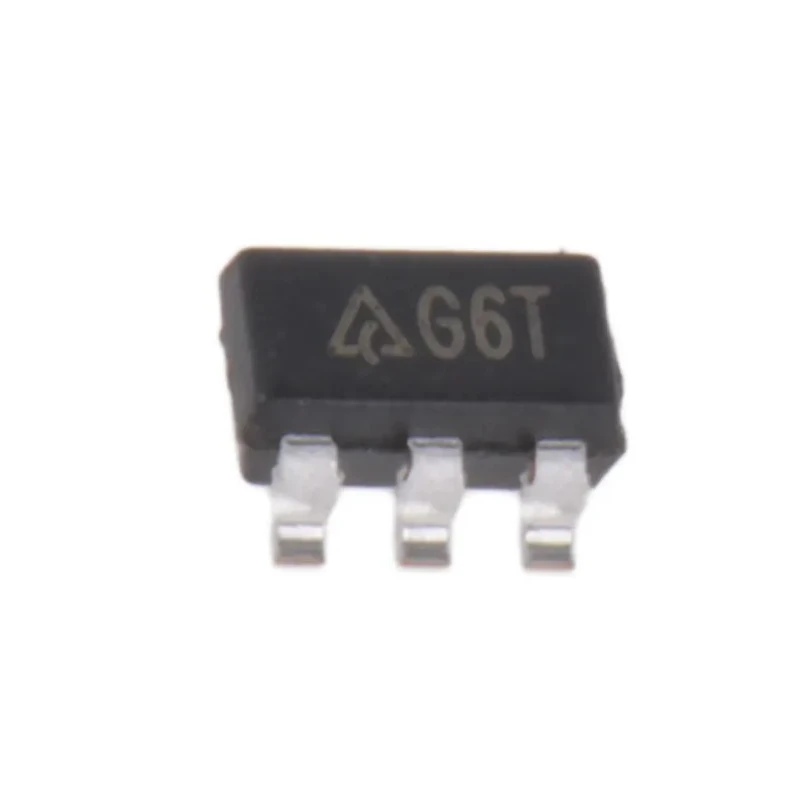

DiodesZetex Operational Amplifier 5-Pin Surface Mount SOT-23 Package 3V-36V AS321KTR-G1

The DiodesZetex AS321KTR-G1 is a high-performance operational amplifier designed for a variety of electronic amplification applications requiring a compact and efficient device. It features a single channel in a 5-pin SOT-23 surface mount package that supports a minimum supply voltage of 3V up to a maximum of 36V, allowing flexible use in both low and high voltage circuits.

With an operating temperature range extending from -40°C to 85°C, this device is well suited for industrial, automotive, and consumer electronics requiring robust temperature tolerance. Its low input bias current of 200 nanoamperes and minimal input offset voltage of 2 millivolts make it ideal for precision signal processing where accuracy is critical.

The compact size of the SOT-23 package (3.1 mm length, 1.7 mm width, and 1.3 mm height) enables space-saving designs on printed circuit boards, especially in high-density applications. It offers an output current capacity of up to 40 milliamperes, providing sufficient drive capability for moderate loads.

The AS321KTR-G1 operational amplifier is surface mount compatible for automated assembly, ensuring efficiency in production lines. Part of the reliable AS321 series from Diodes Inc, this amplifier meets industry requirements for quality and performance without automotive standard certification.

Common applications include general-purpose amplification, signal conditioning, filtering, and voltage level adjustment in electronic circuits used in industrial controls, consumer electronics, and instrumentation.

Single channel operational amplifier for versatile amplification tasks. Wide supply voltage range of 3V to 36V for diverse applications. Compact SOT-23 package for space-constrained electronic assemblies. Operates reliably between -40°C and 85°C ambient temperatures.

Low input bias current of 200 nA minimizes signal error. Output current capability of 40 mA suitable for moderate loads. Low input offset voltage of 2 mV ensures accurate signal amplification. Surface mount design for automated PCB mounting processes.

AS321 series product maintaining quality and performance standards.
