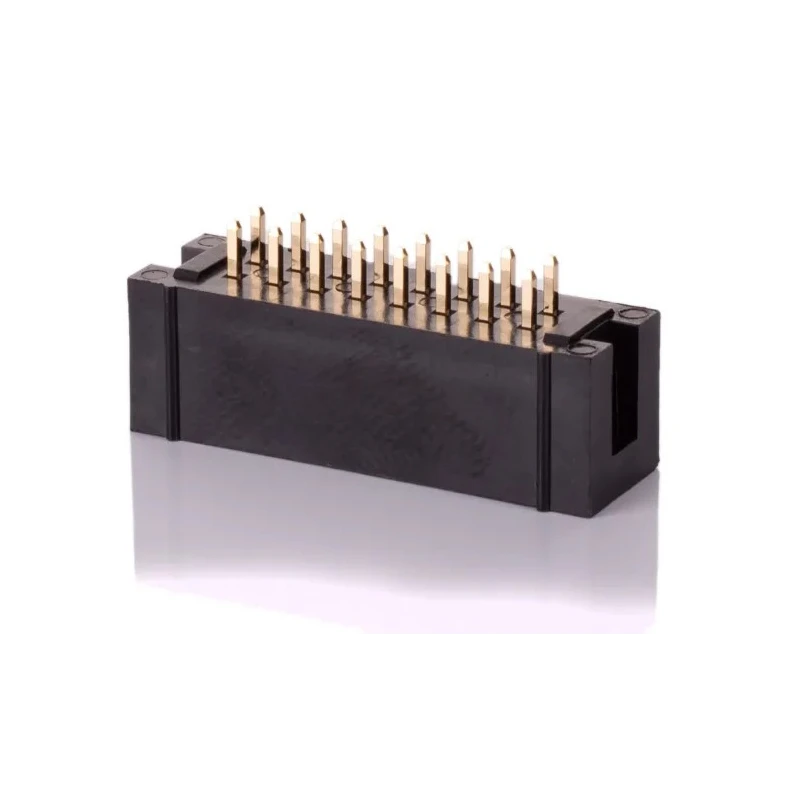

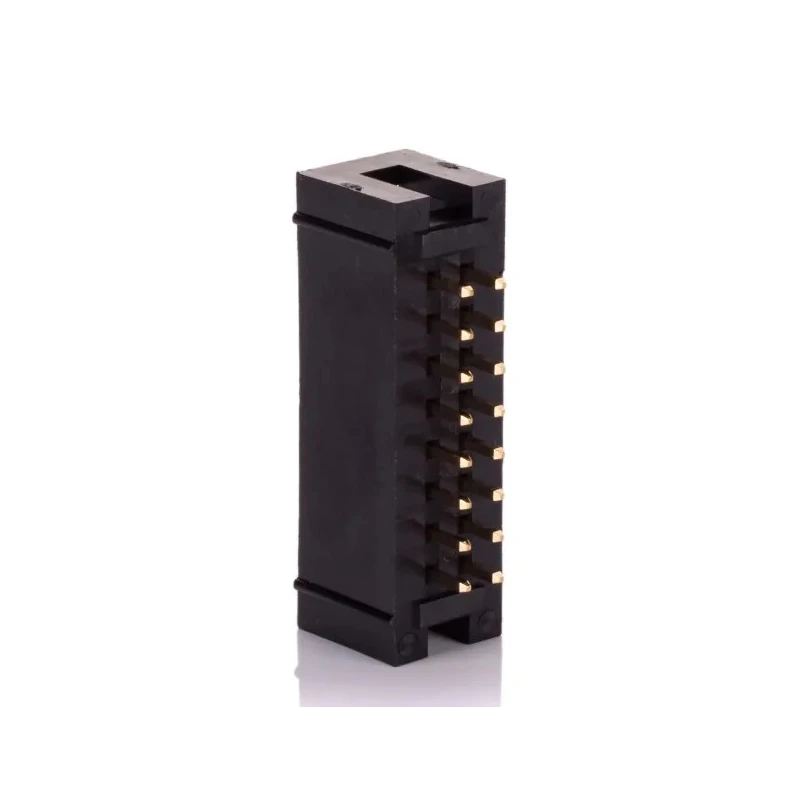

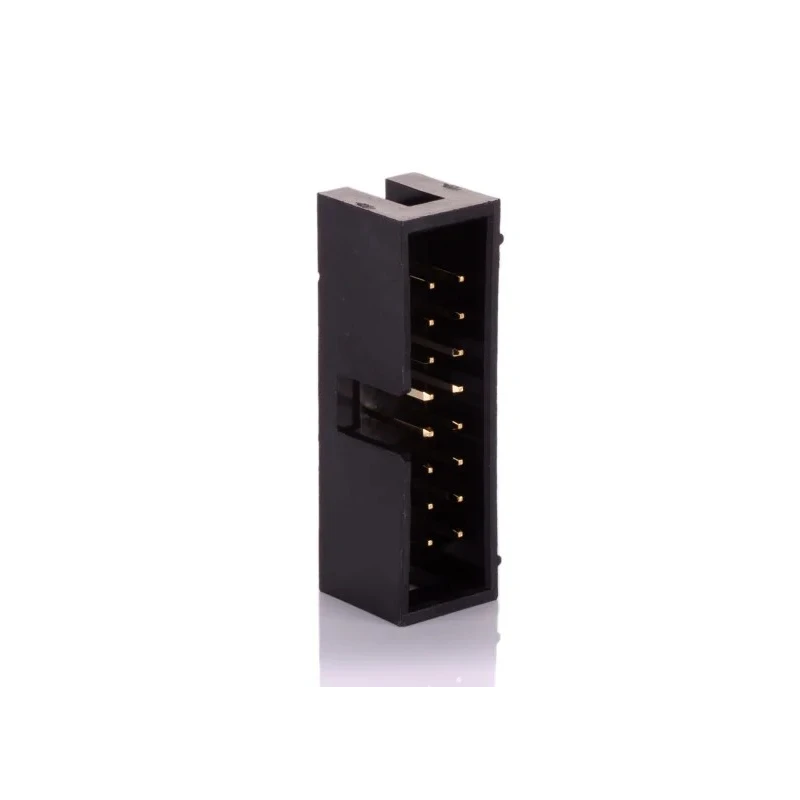

3M 303 Series Straight Through Hole PCB Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 30316-6002HB

3M 30316-6002HB is a robust 303 Series straight through hole PCB header featuring 16 gold-plated brass contacts arranged in two rows with a 2.54 mm pitch. This shrouded header is designed for board-to-board and wire-to-board connections in demanding environments where reliability and durability are critical.

The header's polarised connector system ensures precise alignment and mating, preventing incorrect connections that could damage equipment. Its gold plating resists oxidation, maintaining excellent electrical conductivity over time. The shrouded pin design adds mechanical protection against bending or damage during installation or use.

Manufactured with a hard-wearing glass-filled polyester body, the 30316-6002HB PCB header withstands harsh conditions and offers a wide operating temperature range from -55°C to 105°C. It supports a voltage rating of 500V and a current rating of 1A, suitable for various electronic applications.

The through hole mount type provides a reliable mechanical and electrical connection to printed circuit boards. The product meets the UL 94V-0 flammability standard, ensuring fire safety by self-extinguishing within 10 seconds and preventing fire spread.

Applications include blood pressure monitors, radar systems, vehicle manufacturing, and other industrial electronics where secure and durable PCB connections are vital. Its low profile, polarized design and gold flash plating combine to provide a dependable and long-lasting connector solution.

Polarised connectors ensure accurate mating and prevent connection errors. Shrouded pins protect against bending for a secure and reliable fit. Gold-plated brass contacts resist corrosion and enhance conductivity. Wide operating temperature range from -55°C to 105°C supports harsh environments.

Through hole board mount type provides strong mechanical connection. Constructed with durable glass-filled polyester for longevity and abrasion resistance. Supports 500V voltage and 1A current rating for standard PCB uses.

Meets UL 94V-0 flammability standard for fire safety. Suitable for medical devices, automotive, radar systems, and industrial electronics.

This 3M PCB header is a reliable and professional choice for electronics manufacturers and engineers requiring secure, long-lasting PCB connections. Explore more 3M connector products and PCB Headers on EnvMart to find the right fit for your application.
