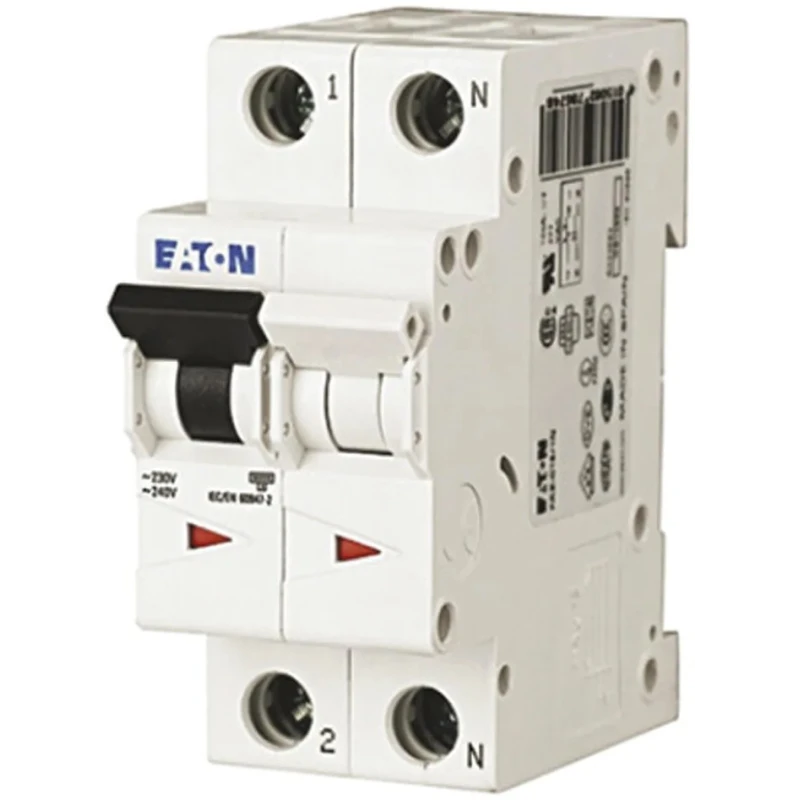

Eaton xEffect Miniature Circuit Breaker 1-Pole 2A Type C 400V AC 6 kA Breaking Capacity FAZ6
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 2A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
Key Features
- Provides thermal-magnetic overcurrent protection for reliable circuit safety.
- Operates at rated AC voltage of 400V with a breaking capacity of 6kA.
- Mounts easily on DIN rail with a compact width of 17.5 mm per pole.
- Features instant trip time with toggle switch reset actuator for safe operation.
- Protects with type C tripping characteristics suitable for residential and light commercial applications.
- Includes a trip-free mechanism preventing manual defeat by holding the switch ON.
- Finger proof design ensures increased safety during handling and operation.
- Complies with IEC 60947-2 standards for industrial low voltage circuit breakers.
Product Description
Eaton FAZ6 miniature circuit breaker model FAZ6-C2/1N provides effective electrical protection with a 1-pole configuration rated at 2A current and type C tripping characteristics. It is designed to operate at 400V AC and offers a breaking capacity of 6 kA, ensuring rapid interruption of current to protect circuits and connected equipment from overloads and short circuits.
This MCB features a thermal-magnetic release mechanism that combines both thermal and electromagnetic tripping for enhanced reliability. The device mounts easily to DIN rails with a slim width of 17.5mm, conserving panel space. Its toggle switch actuator offers clear indication of the contact position and supports quick manual reset.
FAZ6 series breakers incorporate a trip-free mechanism preventing the breaker from being overridden by holding the toggle switch in the ON position, ensuring user and equipment safety. The finger proof design further reduces risk of accidental contact during operation or maintenance.
Compliant with international standards including IEC 60947-2, this breaker is well suited for a range of applications including residential, commercial, industrial electrical distribution boards, and control circuitry. Eaton’s xEffect series accessories and modules such as interlocks and auxiliaries extend installation flexibility.
Additional features include six categorized short-circuit protection types (B, C, D, K, S, Z curves) to meet various application requirements. The FAZ6 series offers reliable, compact, and versatile protection solutions for electrical equipment and systems.
Thermal-magnetic overcurrent protection combines fast short-circuit and overload response. Compact 17.5mm module width saves panel space. Easy DIN rail mount simplifies installation in distribution boards. Trip-free toggle switch prevents manual override of protection.
Finger proof design enhances operational safety. Rated for 2A current at 400V AC with 6kA breaking capacity. Suitable for industrial, commercial, residential use cases. Complies with IEC 60947-2 and related standards. Compatible with Eaton xEffect accessories and interlocking modules.
Explore the Eaton xEffect Miniature Circuit Breaker and associated electrical protection devices within EnvMart’s comprehensive electronics and electrical category for reliable and safe circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This miniature circuit breaker has a rated current of 2A and operates at a voltage of 400V AC.
The Eaton FAZ6 has a breaking capacity of 6 kA, allowing it to effectively interrupt current during overload or short circuit conditions.
This model features Type C tripping characteristics, which means it trips instantaneously when the current is 5 to 10 times the rated current.
The thermal-magnetic tripping mechanism combines thermal and electromagnetic responses to provide reliable protection against overloads and short circuits.
The width of this circuit breaker is 17.5 mm per pole, making it compact for installation in distribution boards.
It mounts easily on DIN rails, which simplifies installation in electrical distribution boards.
It includes a trip-free mechanism preventing manual override of protection and a finger-proof design to enhance safety during handling and operation.
The depth of the Eaton FAZ6 is 62 mm, which is important for ensuring proper fit in electrical panels.
This circuit breaker complies with IEC 60947-2 standards for industrial low voltage circuit breakers.
It is suitable for residential, commercial, and industrial electrical distribution boards, as well as control circuitry.
The Eaton FAZ6 uses a toggle switch as its reset actuator, providing clear indication of the contact position and allowing for quick manual reset.
The Eaton FAZ6 has an IP20 rating, indicating that it is protected against solid objects greater than 12.5 mm but not against water.
