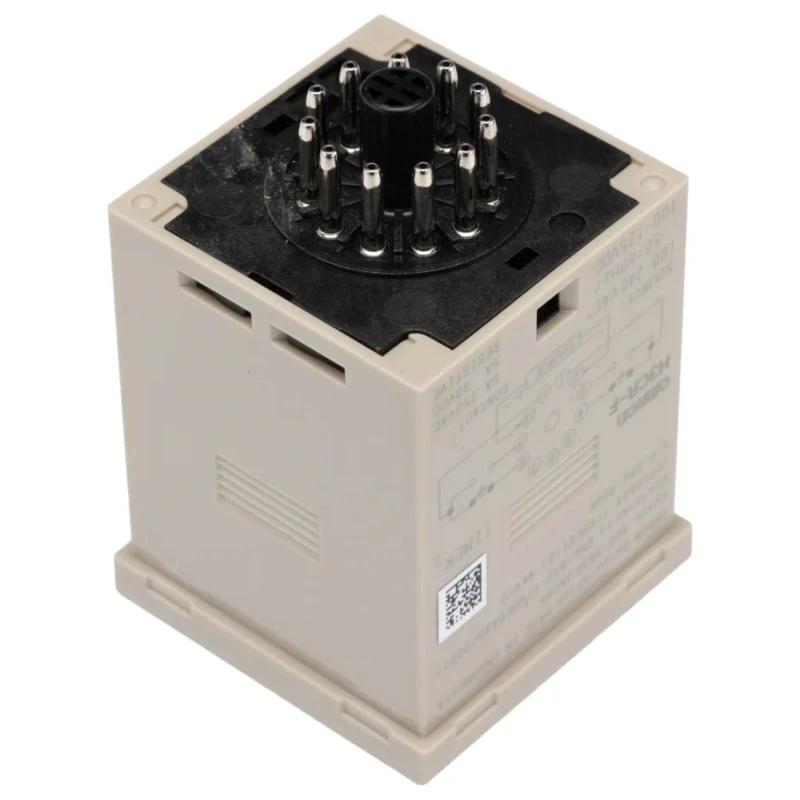

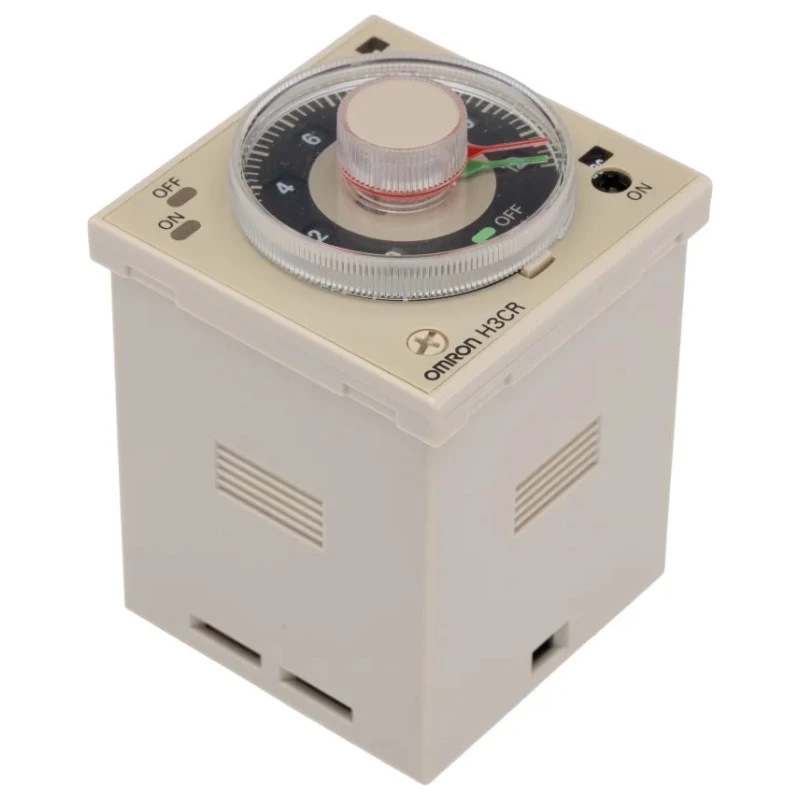

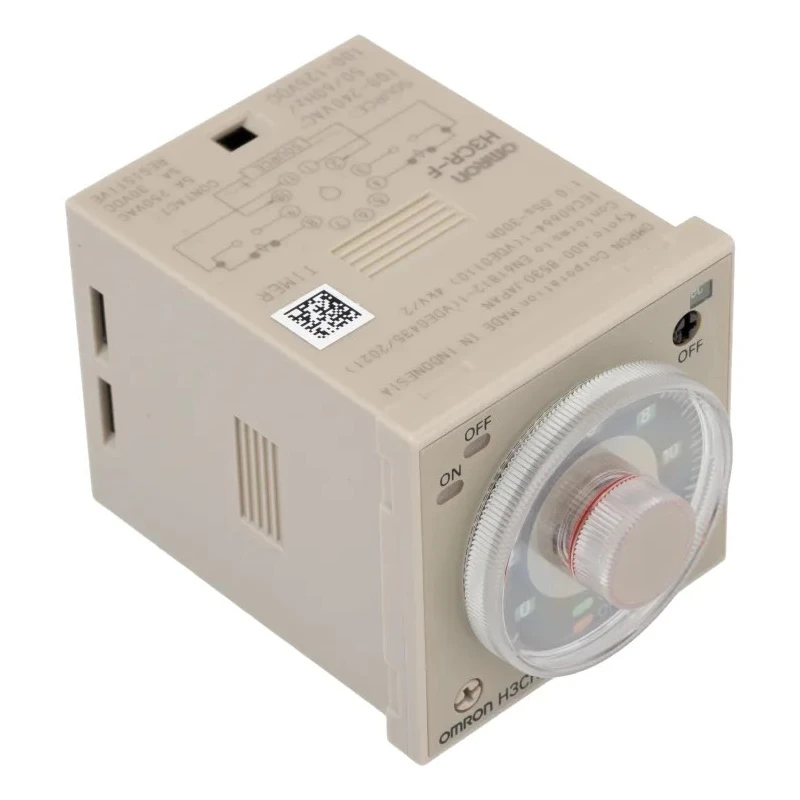

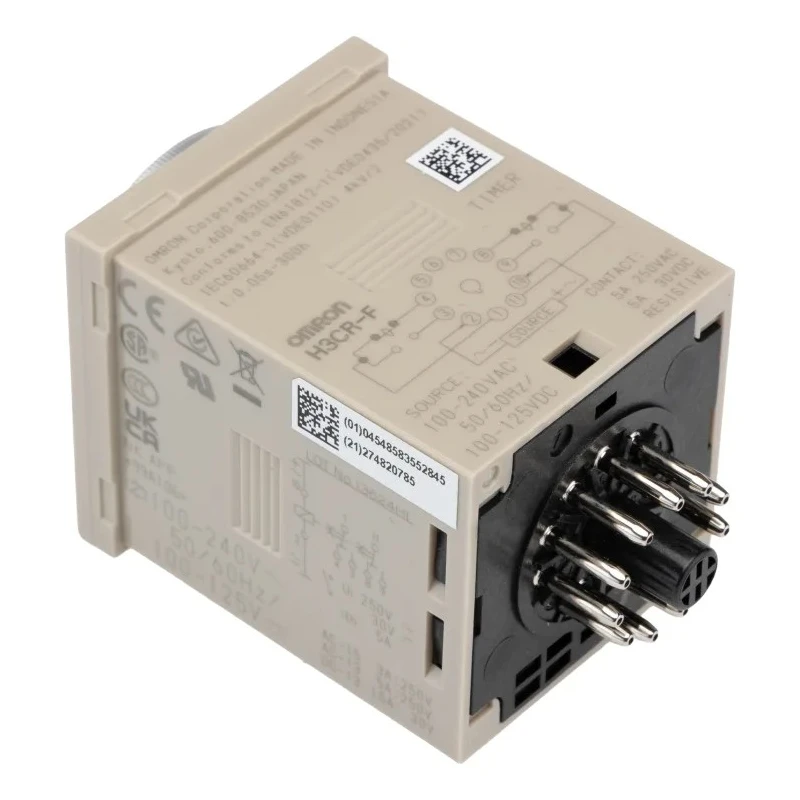

Omron DIN Rail, Panel Mount Timer Relay DPDT 2-Contact 125 V DC 100-240 V AC 0.05s to 300h H3CR

Omron H3CR series DIN Rail, Panel Mount Timer Relay model H3CR provides reliable and accurate timing control for various industrial, HVAC, machine sequencing, and process control applications. It supports a wide supply voltage range between 100 to 240V AC and 125V DC, making it adaptable to different power systems.

The relay features a DPDT (Double Pole Double Throw) contact configuration with two contacts capable of switching currents up to 3A. Its timing range spans 0.05 seconds to 300 hours, enabling precise and flexible timing adjustments for diverse control tasks.

Compact dimensions of 48 mm length, 84 mm height, and 48 mm width allow easy mounting on DIN rails or panels, facilitating integration into existing control setups. The device operates reliably between -10°C to 55°C ambient temperatures and carries an IP40 ingress protection rating suitable for typical industrial environments.

Additional operational benefits include a Star-Delta mode for enhanced starting characteristics and PCB terminal type for secure electrical connections. Compliance with EN, CSA, and UR standards underscores its quality and safety credentials.

Typical applications include industrial automation systems, HVAC timing control, sequential machine operations, safety interlocking circuits, and general process control functions. The product delivers dependable performance critical to electrical and automation tasks across commercial and manufacturing sectors.

Designed for industrial automation and precise control operations. Supports supply voltages from 100 to 240V AC and 125V DC. Features a DPDT contact configuration with two contacts for flexible switching. Flexible timing adjustment from 0.05 seconds to 300 hours.

Compact 48 mm x 84 mm x 48 mm size for DIN rail or panel mounting. Rated contact current of 3A suitable for control and signal switching. Operating temperature range of -10°C to 55°C with IP40 protection. Star-Delta mode enhances operational control.

PCB terminal type ensures secure electrical connections. Conforms to EN, CSA, and UR standards for safety and quality assurance. Explore the Omron brand and Timer Relay selections on EnvMart for advanced industrial control solutions.
