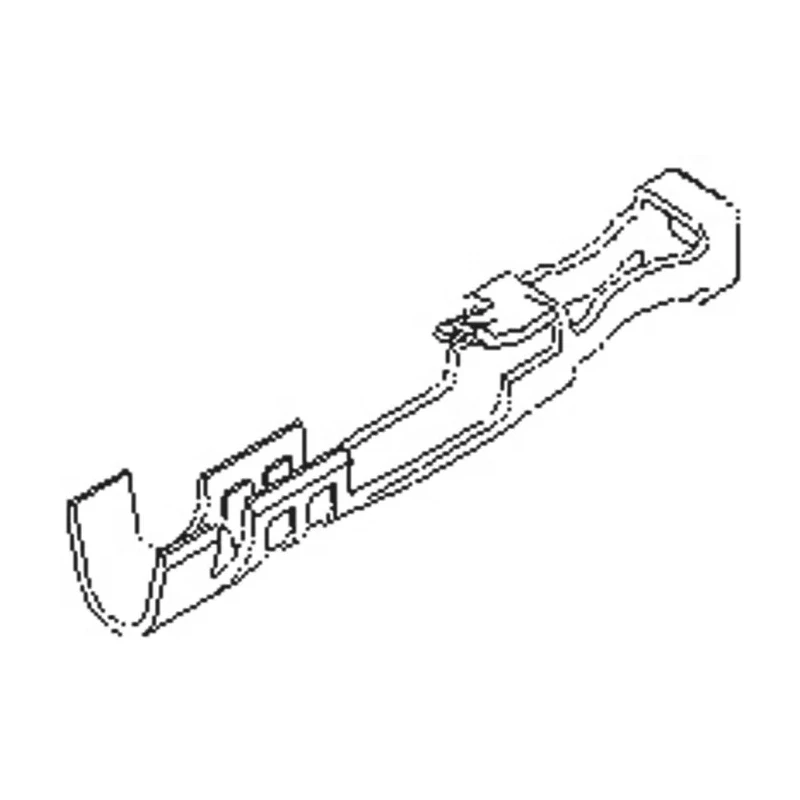

Molex 71851 Series Female Crimp Terminal for SL Connector Housing 3A Current Tin Plating 16-02-1109
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 71851 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 30mΩ |
| For Reference only | 70058 and 71851 Series also used with 70450 Series Housings |
Key Features
- The crimp terminal is designed for wire sizes ranging from 30 AWG minimum to 24 AWG maximum.
- It features a phosphor bronze contact material with a tin plating for reliable electrical connectivity.
- Operating temperature ranges from -40°C to a maximum of 105°C for versatile use.
- Terminal type termination is crimp style, suitable for secure wire connections.
- The maximum contact resistance is 30 milliohms ensuring low-loss connections.
- Part of the 71851 series and compatible with 70058 and 70450 series housings.
- Ideal for applications in automotive, commercial vehicles, consumer electronics, medical industry, and communications.
Product Description
The Molex 16-02-1109 female crimp terminal from the 71851 series is engineered for use with SL connector housings, providing a current rating of 3 amperes and tin-plated phosphor bronze contacts. It supports wire sizes from 30 AWG minimum to 24 AWG maximum, making it versatile across various wire gauges.
Designed for dependable connections, this crimp terminal operates reliably within a wide temperature range of -40°C to 105°C, suitable for demanding industrial and commercial applications.
The termination type is crimp, which ensures secure and strong wire attachment for stable electrical continuity. With a maximum contact resistance of only 30 milliohms, it facilitates efficient electrical performance with minimal signal loss.
This female crimp terminal is part of the Molex SL Crimp Contacts family, including compatible series such as 70058 and 70450 housings, allowing for flexible integration into existing systems.
Widely used in automotive, commercial vehicle, consumer electronics, medical devices, and communication equipment, the Molex 16-02-1109 terminal stands out for quality and reliability in critical electrical connections.
The Crimp Terminal supports wire sizes from 30 AWG to 24 AWG with tin-plated phosphor bronze contacts. It delivers up to 3A current capacity and operates between -40°C and 105°C. Terminated with a crimp style for dependable and durable wire connections.
A maximum contact resistance rating of 30mΩ ensures efficient electrical conductivity. Compatible with Molex 70058, 71851, and 70450 series housings enabling flexible application.
Explore the Electronics & Electricals category on EnvMart to find Molex connectors and related wiring accessories designed for industrial, manufacturing, automotive, and consumer electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal has a current rating of 3 amperes, making it suitable for various applications requiring reliable electrical connectivity.
It supports wire sizes ranging from 30 AWG minimum to 24 AWG maximum, accommodating a range of wire gauges for different applications.
The maximum contact resistance is 30 milliohms, ensuring low-loss connections and efficient electrical performance.
It operates reliably within a temperature range of -40°C to a maximum of 105°C, suitable for demanding environments.
The terminal features a crimp style termination, which ensures secure and stable wire connections for enhanced electrical continuity.
This model is compatible with SL connector housings and can also be used with 70058 and 70450 series housings for flexible integration.
The contacts are made of phosphor bronze and are tin plated, providing reliable electrical connectivity.
It is widely used in automotive, commercial vehicles, consumer electronics, medical devices, and communication equipment.
The specific dimensions and weight are not provided in the product details.
The product details do not specify any maintenance requirements for this terminal.
There are no certifications or standards mentioned in the product information.
Installation requires crimping the terminal onto the wire, ensuring a secure connection, but specific installation instructions are not provided.
