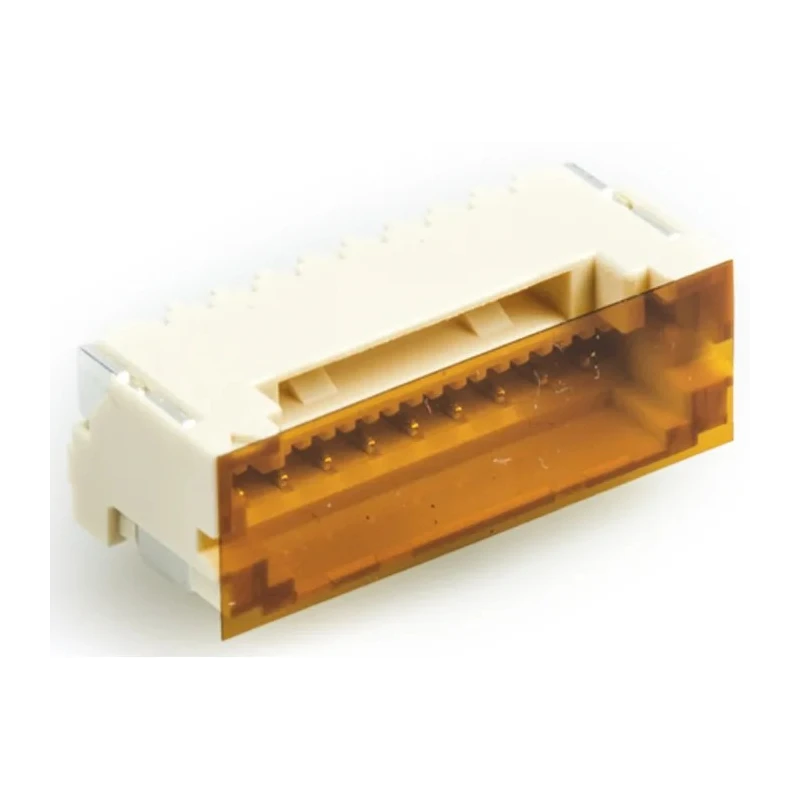

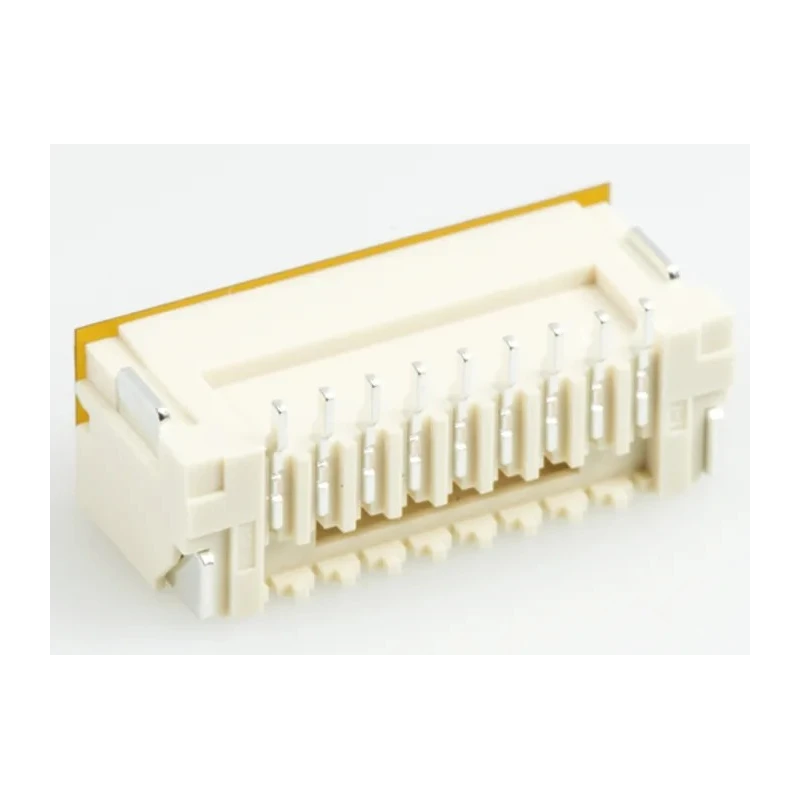

JST ZE Series Straight Surface PCB Header 9 Contacts 1.5 mm Pitch 1 Row Shrouded BM09B-ZESS-TBT (LF)(SN)

JST BM09B-ZESS-TBT (LF)(SN) ZE Series Straight Surface PCB Header is a high-quality connector designed for reliable wire-to-board connections in electronic assemblies. Featuring a 1.5 mm pitch and 9 male contacts arranged in a single row, this shrouded header ensures secure and stable electrical interfacing.

The header's polyamide housing provides robust insulation and mechanical strength, suitable for demanding industrial and commercial applications. The copper alloy contacts with tin plating guarantee dependable electrical performance and corrosion resistance. Operating temperature ranges from -25°C to 85°C, enabling use in varied environmental conditions.

With a current rating of 2A and a voltage rating of 100V, this surface-mount header supports moderate power requirements and ensures safety compliance. Its solder termination type allows for secure mounting on printed circuit boards, reinforced further by forked posts and reinforcing plates for enhanced mechanical stability.

This component is ideal for use in industrial electronics, manufacturing equipment, control systems, and other applications requiring reliable PCB connections. The shrouded design reduces the risk of damage and improves handling during assembly processes.

The included suction caps facilitate automated handling and insertion in production, increasing efficiency. For mating connectors, compatible ZE 1.5 mm receptacle housings are available, ensuring a complete connector system.

The connector features a 1.5 mm pitch and 9 male contacts in a straight orientation. Housing is made of durable polyamide material providing excellent insulation. This surface-mount PCB header includes shrouded construction for enhanced protection and stability.

Contact material consists of copper alloy with tin plating ensuring reliable conductivity. Operating temperature range spans from -25°C to 85°C suitable for diverse environments. The header supports a maximum voltage of 100V and current rating up to 2A.

Termination type is solder compatible ensuring robust PCB attachment. Designed for wire-to-board applications with a secure locking housing and forked posts for firm mounting. Explore the extensive range of PCB Headers and components to optimize your electronic projects and production lines here on EnvMart.
