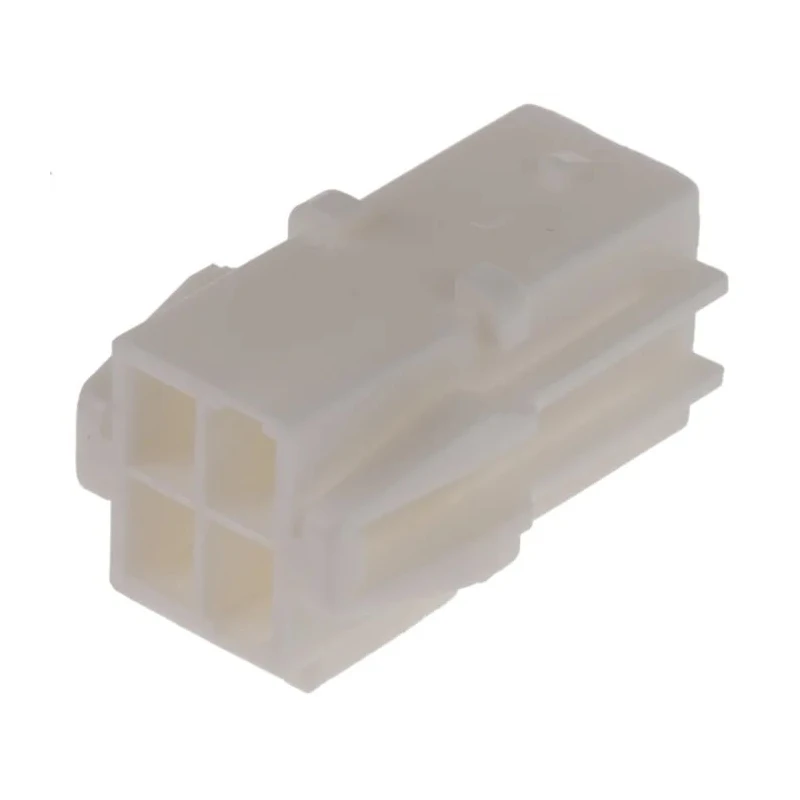

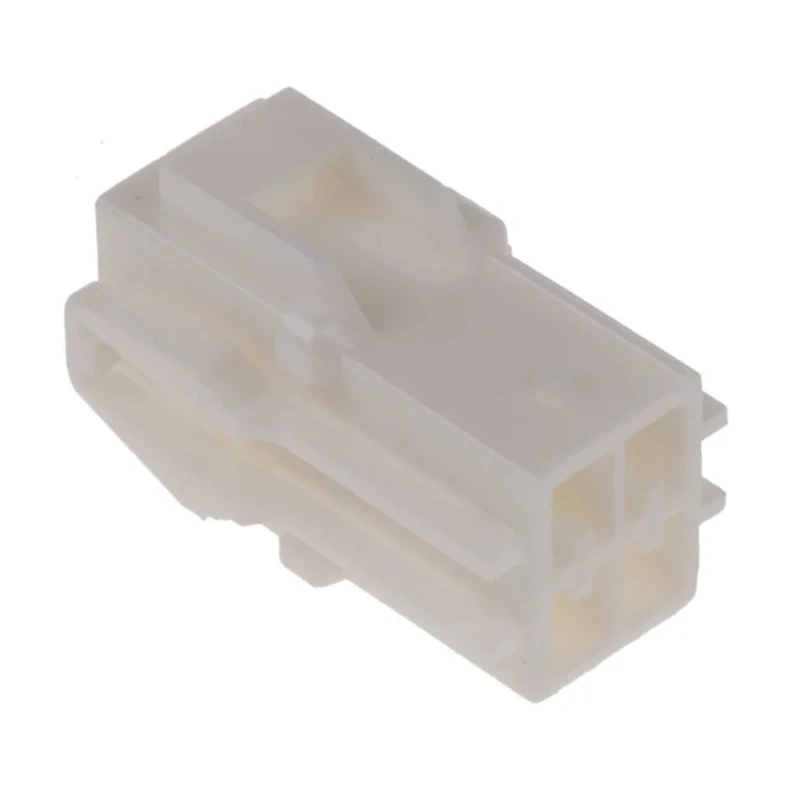

JST Connector Housing Female, 3.96 mm Pitch, 4 Contacts, 2 Row Straight Cable Mount Polyamide HLR-04V

Free Delivery in India | Lowest Global Shipping Charges

JST Connector Housing Female, 3.96 mm Pitch, 4 Contacts, 2 Row Straight Cable Mount Polyamide HLR-04V



Category Connector Housing Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Orientation	Straight
Length	15.16mm
Model	HLR-04V
Width	14.2mm
Mount Type	Cable
Housing Material	Polyamide
Series	HLR
Number of Rows	2
Pitch	3.96mm
For Use With	HL Series Crimp Style Wire-to-Wire Connector
Number of Contacts	4
Connector Gender	Female
The HL Wire-to-Wire and Wire-to-Board Connector range from JST features	a contact with a low insertion force , housing lance, inner-housing lock, secondary retainers and a panel lock construction
JST, HL Female PCB Housing, 3.96mm Pitch, 4 Way, 2 RowBrand	JST

Key Features

The polyamide housing ensures durability and chemical resistance.
Designed for HL Series crimp style wire-to-wire connectors for secure mating.
Features low insertion force contacts for easy assembly.
Includes housing lance, inner-housing lock, secondary retainers, and panel lock construction.
Compact dimensions with 15.16 mm length and 14.2 mm width for space-efficient applications.
Ideal for electronics and power connector assemblies requiring precise alignment.
No certifications or approvals indicated for this product.

Product Description

JST HLR-04V female connector housing is a reliable component made of high-quality polyamide material, designed for use in wire-to-wire connection systems with a 3.96 mm pitch. This housing accommodates 4 contacts arranged in 2 rows, offering a compact and robust solution for electronic and power connector applications.

The housing is specifically designed to mate with the HL series crimp style connectors, featuring low insertion force contacts to facilitate easy and efficient assembly. The straight cable mount orientation ensures straightforward wiring and installation. Structural design elements such as the housing lance, inner-housing lock, secondary retainers, and panel lock construction enhance the positional security and stability of the contacts within the housing.

With dimensions of 15.16 mm in length and 14.2 mm in width, this connector housing fits compact electronic assemblies where space is critical. The use of polyamide material provides excellent mechanical strength and chemical resistance, supporting reliable performance in various industrial and commercial use cases.

This connector housing is suitable for a range of industrial sectors including electronics manufacturing, power connectors, telecommunications, and automation control systems. It is essential in applications requiring secure and precise interconnections between wire harnesses.

The polyamide housing ensures durability and chemical resistance. Designed for HL Series crimp style wire-to-wire connectors for secure mating. Features low insertion force contacts for easy assembly. Includes housing lance, inner-housing lock, secondary retainers, and panel lock construction.

Compact dimensions with 15.16 mm length and 14.2 mm width for space-efficient applications. Ideal for electronics and power connector assemblies requiring precise alignment. No certifications or approvals indicated for this product.
