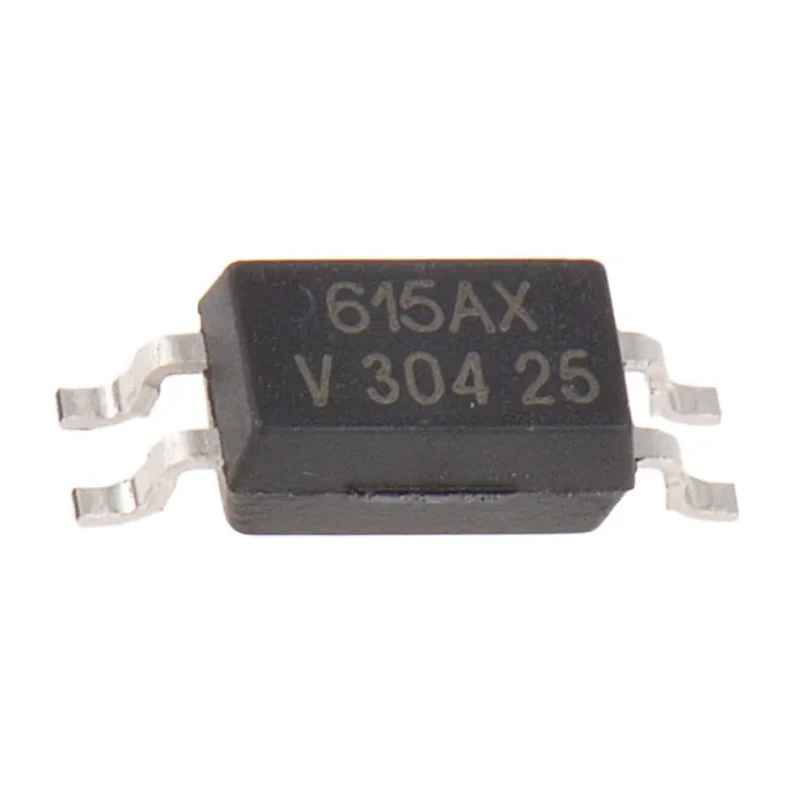

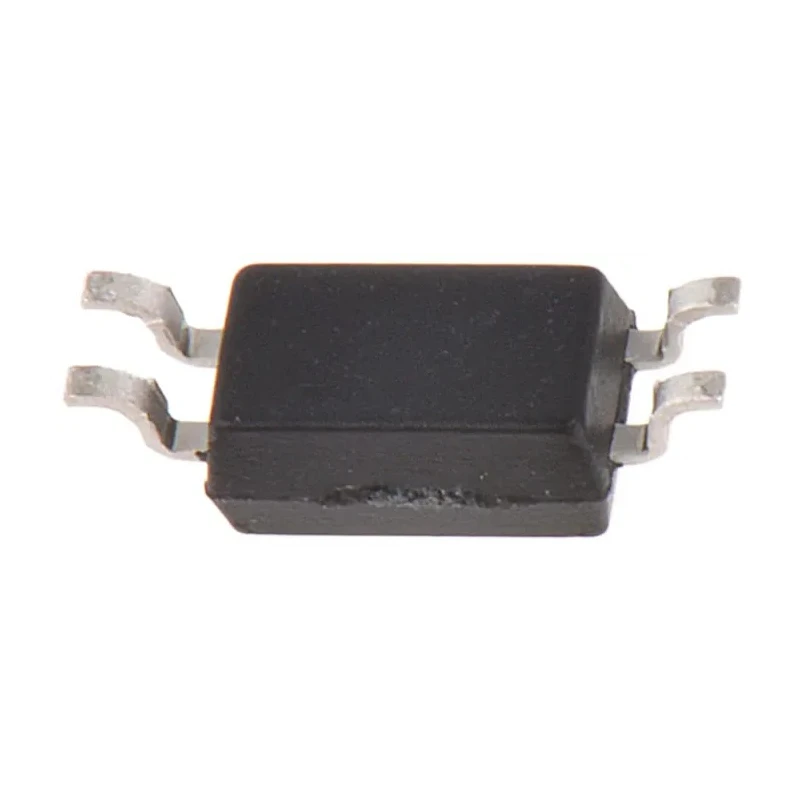

Vishay DC Input Phototransistor Output Optocoupler Surface Mount 4-Pin SSOP VOS615A-X001T

The Vishay VOS615A-X001T is a DC input optocoupler designed for surface mounting, featuring a 4-pin SSOP package. This optocoupler employs a phototransistor output type, providing electrical isolation and signal transfer for electronic components and industrial systems.

The device operates with a maximum forward voltage of 1.5V and supports a maximum input current of 50mA. Its typical rise and fall times of 3μs ensure rapid response suitable for high-speed switching applications. The optocoupler supports 1 channel and uses DC input current type.

This model is rated for an isolation voltage of 3750Vrms, providing robust protection against electrical noise and interference. The operating temperature range from -55°C to 110°C allows use in demanding environments.

VOS615A-X001T features a minimum current transfer ratio of 40% and a maximum of 6%, balancing efficiency and precision in signal conversion. It conforms to UL and EN standards, suitable for industrial, electronic, power, and display applications but is not designed for automotive use.

The product comes in Tape & Reel packaging, supporting streamlined manufacturing and assembly processes. As part of Vishay's VOS series, this optocoupler combines dependable performance with easy integration into a variety of electrical and electronic systems.

This optocoupler operates with a maximum forward voltage of 1.5V. It has 1 channel and uses DC as the input current type. The package type is SSOP with 4 pins, suitable for surface mounting. The device offers a maximum input current rating of 50mA and isolation voltage of 3750Vrms.

Typical rise and fall times are 3 microseconds each, ensuring fast switching. Operating temperature ranges from -55°C to 110°C for robust performance. It has a minimum current transfer ratio of 40% and maximum current transfer ratio of 6%.

Compliant with UL and EN standards but does not conform to automotive standards. Packaging is through Tape & Reel, facilitating automated assembly. Manufactured in China, the Vishay VOS615A-X001T is part of the VOS series of optocouplers.

Use this Optocoupler in industrial automation, electronic instrumentation, power supply systems, and display technology applications requiring signal isolation and noise reduction. Explore a wide range of optoelectronic components and Vishay products on EnvMart for comprehensive industrial electronics solutions.
