Nexperia 2-Channel Inverting Single Ended Buffer, 6-Pin SC-88 Package, Logic Family LVC, Operating Voltage 74LVC2G34GW,125

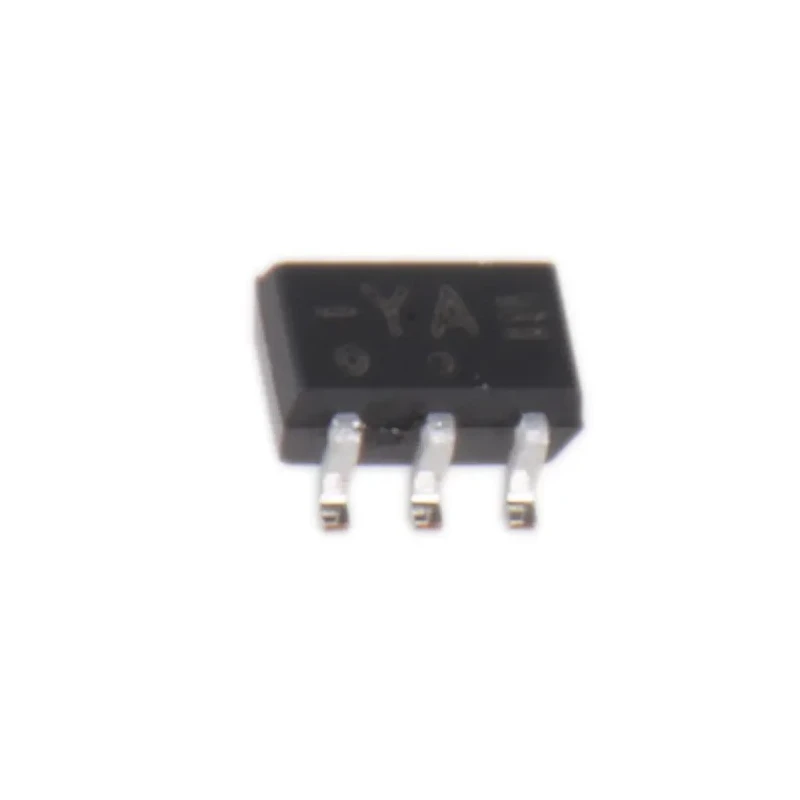

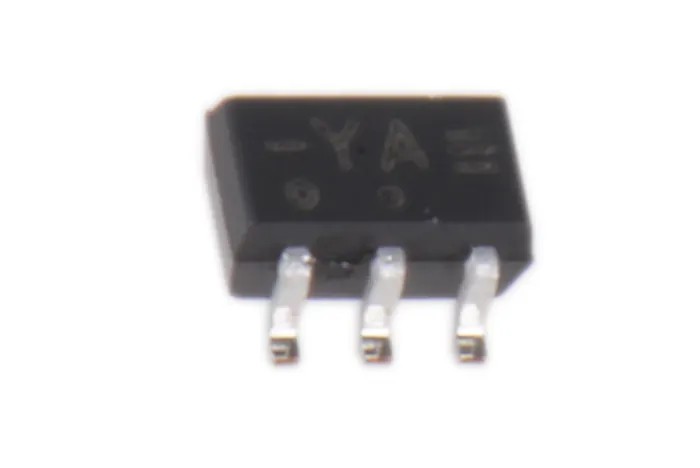

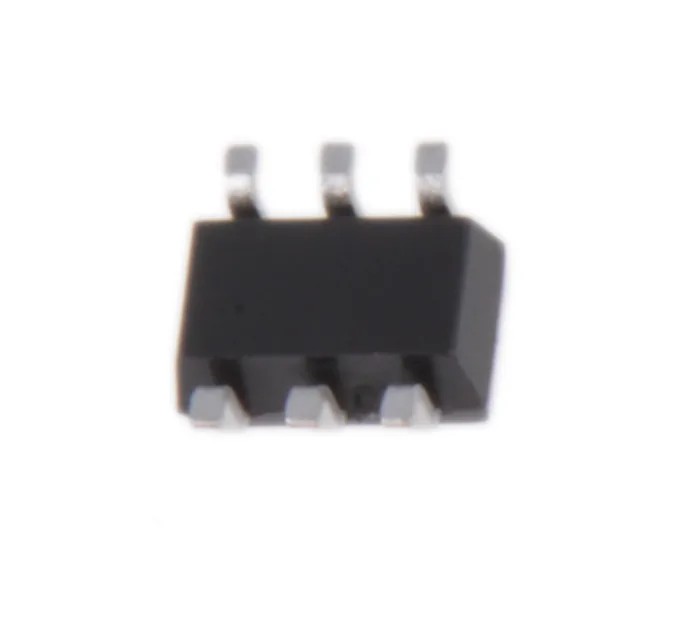

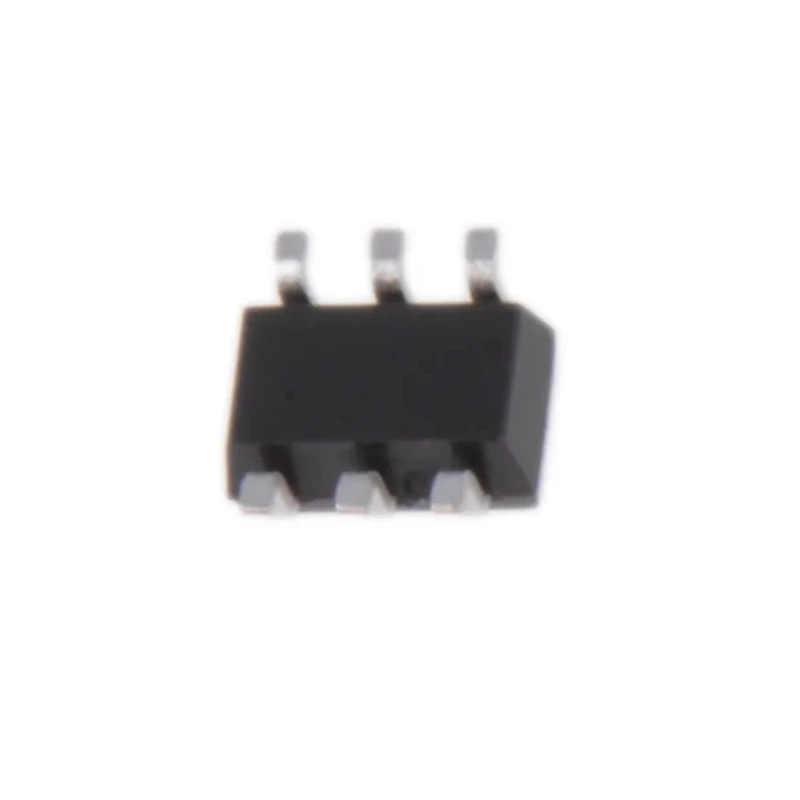

Nexperia 74LVC2G34GW,125 2-Channel Inverting Single Ended Buffer in a compact 6-pin SC-88 surface mount package is a highly reliable semiconductor component from the 74LVC2G34 series, tailored for modern low-voltage CMOS logic applications. Operating over a wide voltage range from 1.65 to 5.5 V, this buffer IC ensures compatibility with LVTTL and TTL input logic levels while outputting LVCMOS signals with inverting polarity. The device supports two separate channels with single-ended inputs and outputs, making it suitable for digital logic buffering tasks requiring signal inversion.

Designed to function efficiently with a low supply current of 4 μA and a maximum propagation delay of 10.8 ns, the 74LVC2G34GW,125 supports high-speed digital circuit designs. It can safely operate in harsh temperature environments ranging from -40°C up to 125°C, meeting industrial operating requirements. Its output currents are rated at a maximum of -32 mA for high level and 32 mA for low level, ensuring robust drive capability for connected digital loads.

The compact SC-88 package with a height of 1 mm and a length of 2.2 mm offers a space-saving solution for dense PCB layouts in telecommunications, industrial control, automotive, and consumer electronics sectors. Despite the small footprint, the device does not incorporate Schmitt trigger inputs, indicating its optimized use for standard digital signal shaping rather than power conditioning or noise rejection.

This semiconductor buffer IC is ideal for industrial, automotive, consumer electronics, and communication systems that require efficient, compact logic signal conditioning. The device belongs to the low-voltage CMOS logic family (LVC) with operating voltage from 1.65 to 5.5 V.

Provides inverting polarity with two channels supporting single-ended input and output. Maximum propagation delay time is approximately 10.8 ns at specified load conditions. Operates safely in temperature ranges from -40°C up to 125°C.

Device current consumption is low at about 4 μA supply current. Minimum supply voltage is 1.65 V and maximum supply voltage is 5.5 V. Compact surface mount package type SC-88 with 6 pins enables easy PCB integration. Compatible with LVTTL/TTL inputs and LVCMOS outputs for broad logic interfacing.

Designed without Schmitt trigger input, suitable for typical digital buffering. Maximum high level output current reaches -32 mA and low level output current is 32 mA.

Explore the range of semiconductor Buffers and logic ICs available at EnvMart for quality assured components suitable for all levels of electronic design and manufacturing projects.
