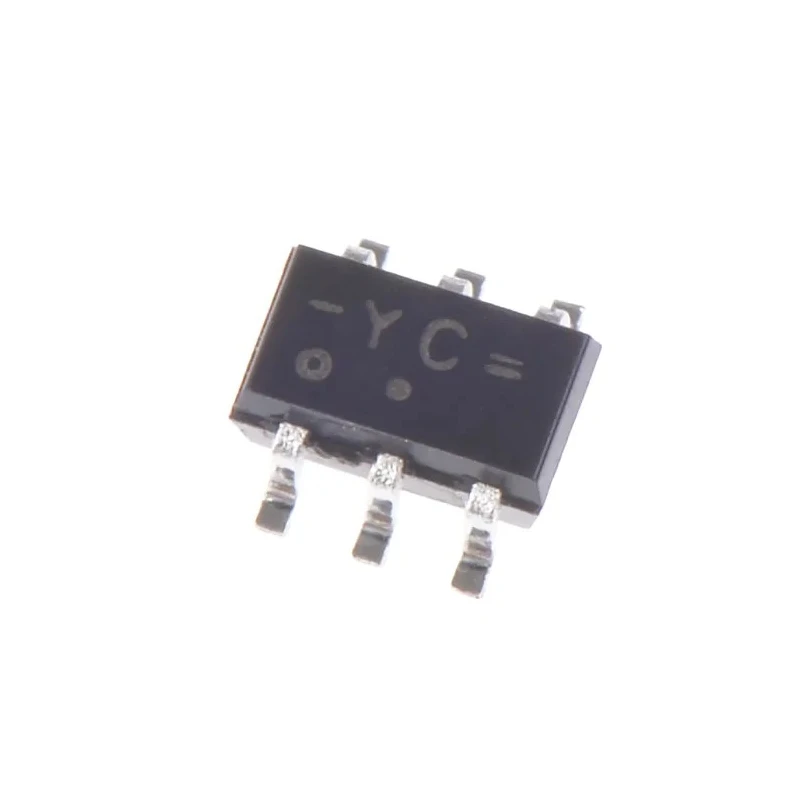

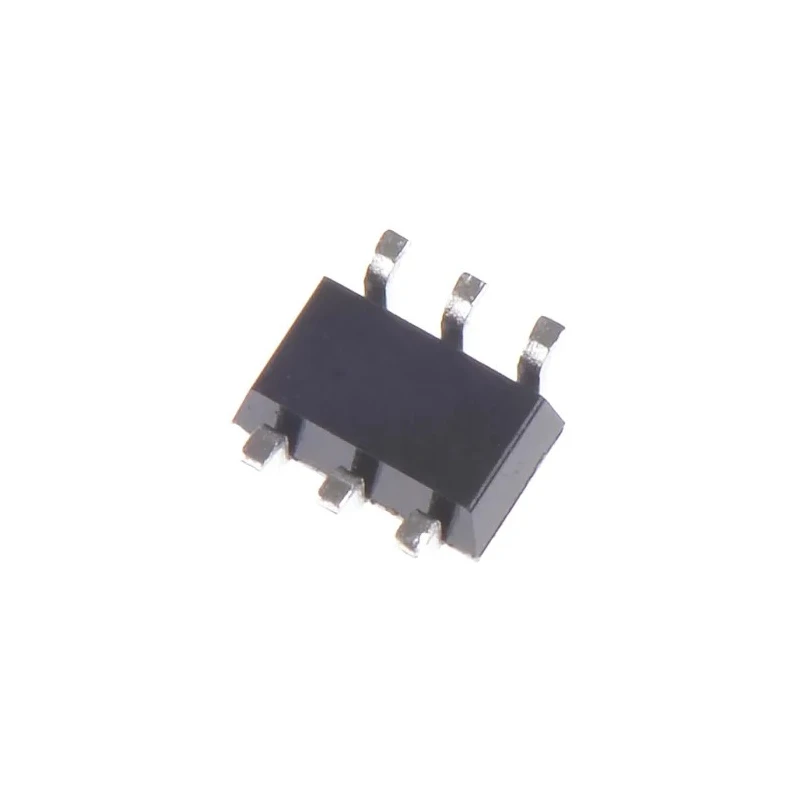

Nexperia 1 3-Input Multifunction Logic Gate 6-Pin SC-88 74LVC1G57GW,125

Nexperia 74LVC1G57GW,125 is a multifunction logic gate IC designed for efficient electronic component integration. This device features a single 3-input gate housed in a compact 6-pin SC-88 surface-mount package, facilitating easy mounting and space optimization on printed circuit boards.

Operating within a voltage range of 1.65 V to 5.5 V, it supports low-voltage CMOS logic families, ensuring compatibility with modern low-power digital systems. The integrated logic element provides versatile logic functions suitable for complex logic circuits.

The device outputs a single-ended signal with TTL input compatibility and LVCMOS output level, making it adaptable for various digital logic interfacing scenarios. With a maximum propagation delay time of only 6.4 ns, it provides high-speed logic operations essential for fast data processing.

Rated for an operating temperature range from -40°C up to 125°C, this logic gate IC is built for reliable performance in harsh industrial and commercial environments. Operates on 1.65 to 5.5 V supply voltage. Single 3-input multifunction logic gate.

Surface mount SC-88 6-pin package with small footprint. High-speed operation with 6.4 ns propagation delay. Wide temperature range from -40°C to 125°C. Compatible with TTL and LVCMOS logic levels. Maximum high and low level output currents of -32 mA and 32 mA respectively.

Single-ended output for simplified circuit integration.

This logic gate IC is widely used in electronic component assemblies, semiconductor logic circuits, industrial automation systems, and embedded electronic applications where compact design and multifunctionality are critical. It supports prototyping and production in electronics manufacturing, offering robust performance for digital signal processing tasks.
