Nexperia 1 2-Input NAND Logic Gate Surface Mount SC-74A 5-Pin TTL LVC Family 74LVC1G00GV,125

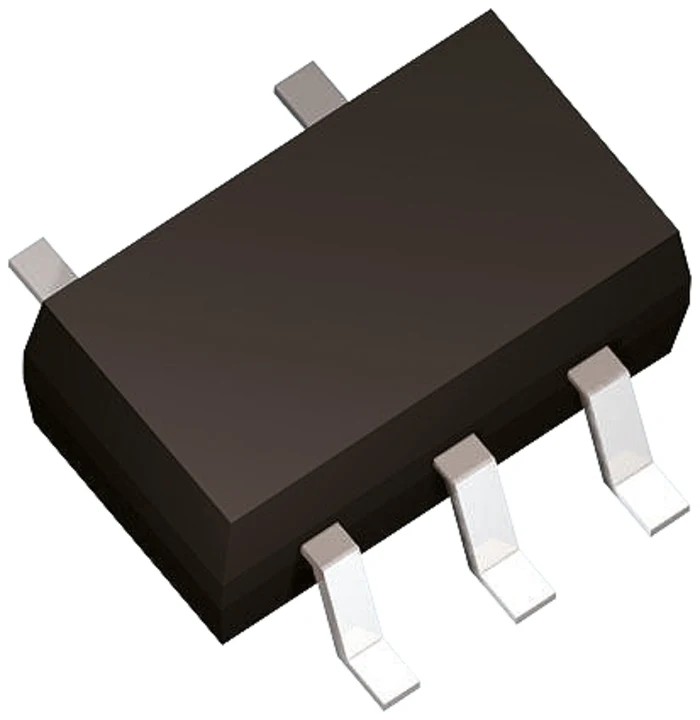

Nexperia 74LVC1G00GV,125 1 2-Input NAND Logic Gate in a 5-Pin SC-74A surface mount package is engineered for low-voltage applications requiring fast switching and compact integration.

This logic gate operates reliably within a supply voltage range of 1.65 to 5.5 volts, allowing it to fit in varied power designs. It features a single element with two TTL-type inputs, providing NAND logic functionality with quick 5.5 nanoseconds maximum propagation delay at typical load capacitance.

The compact dimensions of 3.1 mm length and 1 mm height support dense PCB layouts in industrial, electronic, and manufacturing equipment. The device is rated for operation across a wide temperature band from -40°C to 125°C, ensuring robustness for harsh environments.

It is part of the 74LVC family which employs low-voltage CMOS technology delivering low power consumption while maintaining compatibility with input LVTTL and output LVCMOS standards. With a single-ended output capable of ±32 mA current drive, this component efficiently interfaces with other logic and control circuit elements.

Operates from 1.65 V to 5.5 V supply voltage. Two TTL inputs per gate with NAND logic function. Single gate per device in a small SC-74A package. Maximum propagation delay time is 5.5 ns for high-speed switching. Wide operating temperature range from -40°C to 125°C.

Output current rating at ±32 mA ensures steady signal levels. Low height (1 mm) and length (3.1 mm) for compact PCB applications. Low power consumption with 74LVC low-voltage CMOS technology. This NAND logic gate suits industrial, electronics manufacturing, automation, and embedded system applications requiring reliable logic control and signal processing.
