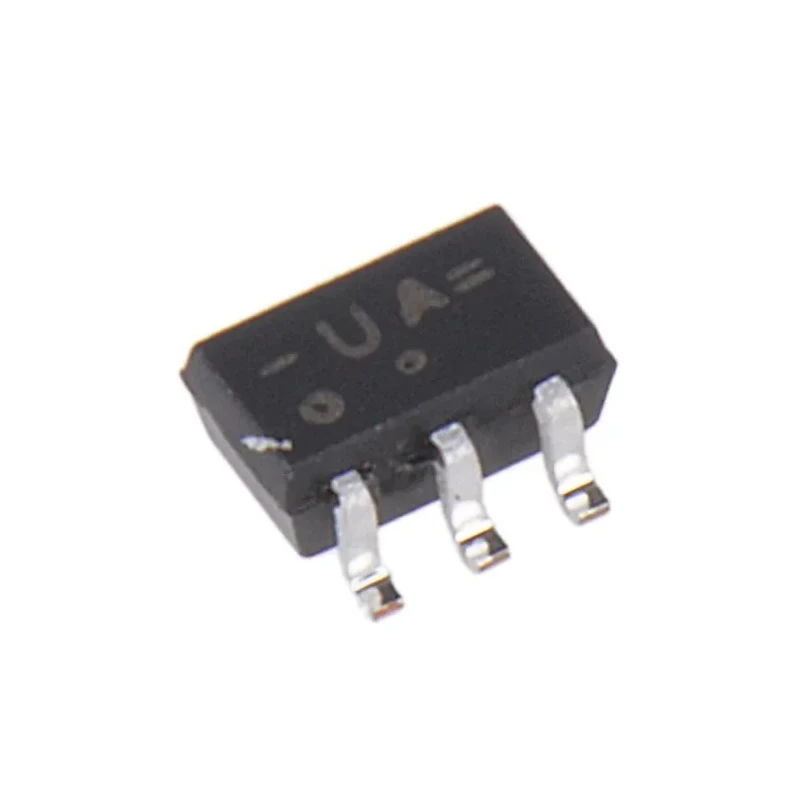

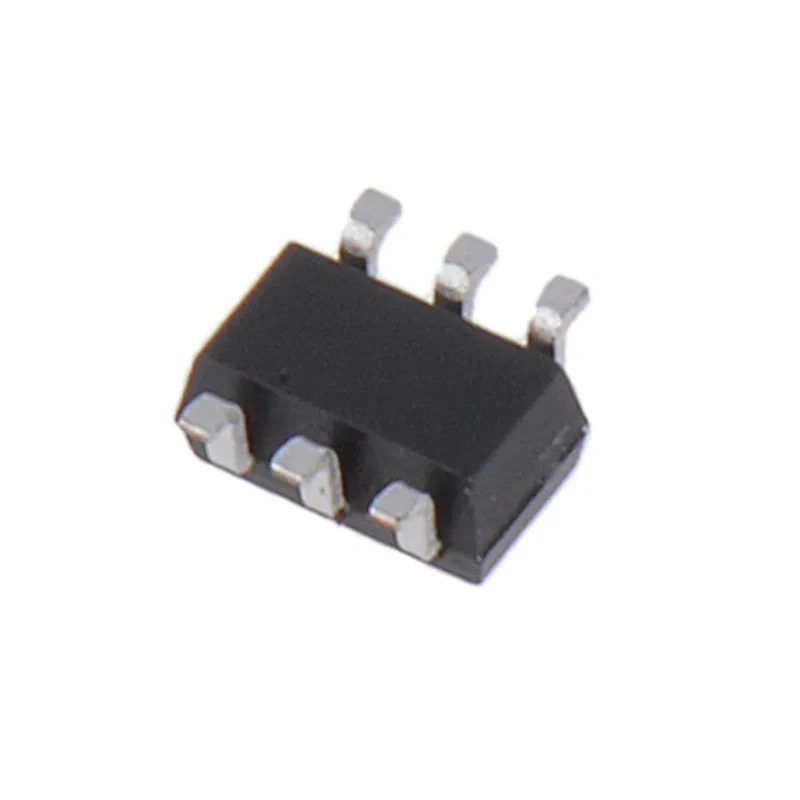

Nexperia 2-Channel Non-Inverting Single Ended Buffer Logic IC 6-Pin SC-88 74HCT2G34GW,125

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 2-Channel Non-Inverting Single Ended Buffer Logic IC 6-Pin SC-88 74HCT2G34GW,125

Name: Nexperia 2-Channel Non-Inverting Single Ended Buffer Logic IC 6-Pin SC-88 74HCT2G34GW,125
Brand: Nexperia
SKU: 376594
Price: 0.22 USD
Availability: InStock



Category Buffers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1mm
Length	2.2mm
Model	74HCT2G34GW,125
Mount Type	Surface
Compatibility	Input TTL, Output CMOS
Output type	Single Ended
Input Type	Single Ended
Maximum Operating Temperature	125°C
Package Type	SC-88
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	2
Pin Count	6
Maximum Supply Voltage	5.5V
Logic Family	HCT
Logic Function	Buffer
Minimum Supply Voltage	4.5V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ CL	125ns
Supply Current	50mA
Maximum Low Level Output Current	5.2mA

Key Features

Operates within supply voltage range of 4.5V to 5.5V.
Provides two independent non-inverting buffer channels.
Supports surface mount installation with 6-pin SC-88 package format.
Offers maximum propagation delay time of 125ns at standard load.
Compatible with TTL inputs and CMOS outputs for versatile interfacing.
Operating temperature range from -40°C to 125°C for robust performance.
Low supply current consumption of 50mA suitable for power-sensitive designs.
Non-inverting polarity ensures signal integrity during buffering.

Product Description

The Nexperia 74HCT2G34GW,125 is a high-speed CMOS logic buffer IC featuring two non-inverting channels. Packaged in a compact 6-pin SC-88 surface mount package, this device is designed for use in electronic circuits requiring signal buffering with TTL input and CMOS output compatibility.

Operating safely within a voltage range of 4.5V to 5.5V, the IC ensures reliable performance with a maximum propagation delay time of 125 nanoseconds under typical load conditions. It operates over a wide temperature range from -40° Celsius up to 125° Celsius, making it suitable for varying industrial and commercial environments.

Designed with power efficiency in mind, this buffer IC consumes a supply current of approximately 50mA, contributing to overall system energy savings. The non-inverting nature maintains signal polarity, which is essential for many logic circuit applications.

The small physical footprint, measuring only 2.2 millimeters in length and 1 millimeter in height, allows this IC to fit into space-constrained printed circuit board designs. It has a 6-pin configuration that facilitates surface mounting, helping to streamline automated assembly processes.

The device does not carry specific automotive standards but maintains industrial-grade quality typical of Nexperia semiconductor components. Its robust characteristics make it apt for use in industrial controls, instrumentation, communication devices, and other logic buffering roles across electronics manufacturing.

Operates within 4.5 to 5.5 V supply voltage. Two independent non-inverting buffer channels. Surface mount 6-pin SC-88 package. Maximum propagation delay time of 125 ns. TTL input and CMOS output compatibility. Operating temperature range: -40°C to 125°C.

Low supply current of 50 mA. Compact dimensions of 2.2mm length and 1mm height. Non-inverting polarity for signal integrity. Industrial grade semiconductor suitable for broad applications. Explore our extensive selection of semiconductor logic ICs at EnvMart for reliable and efficient electronic component sourcing.
