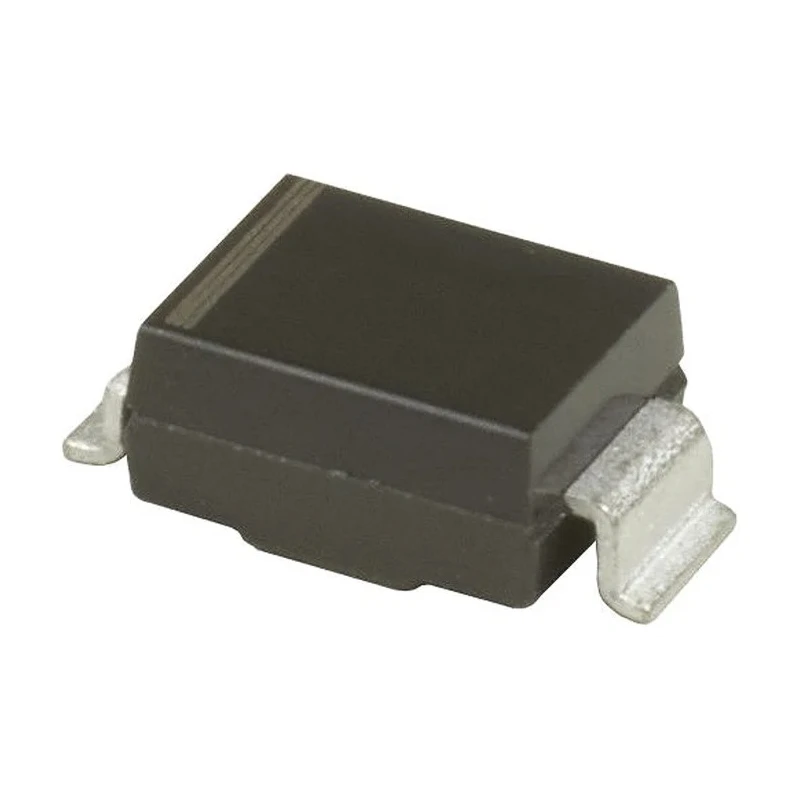

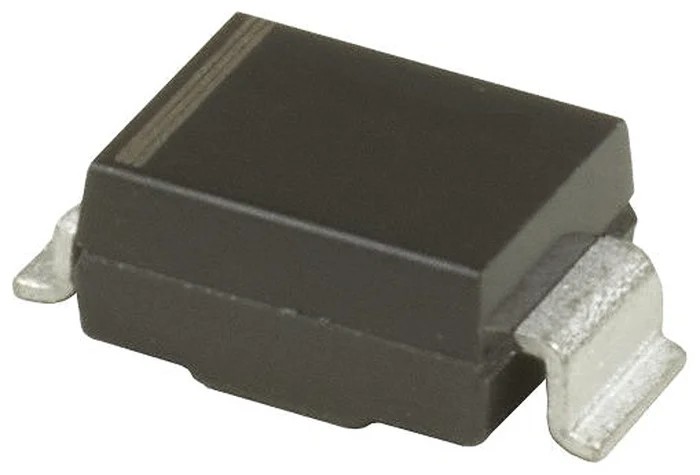

Vishay 1-Element Uni-Directional Transient Voltage Suppressor 600W 2-Pin DO-215AA SMBG5.0A-E3/52
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.21mm |
| Length | 4.57mm |
| Model | SMBG5.0A-E3/52 |
| Width | 3.94mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-215AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 9.2V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.4V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 65.2A |
| Maximum Reverse Leakage Current | 800μA |
Key Features
- Single diode configuration for reliable transient voltage suppression.
- Uni-directional design suitable for protection against positive transients.
- Peak pulse power dissipation rating of 600 W ensures robust surge protection.
- Compact DO-215AA package with dimensions 4.57 mm length and 3.94 mm width.
- Operational temperature range from -55°C to 150°C for versatile industrial use.
- Clamping voltage of 9.2 V offers effective voltage control during transient events.
- Low maximum reverse leakage current of 800 μA enhances device efficiency.
- Automotive grade with AEC-Q101 standard compliance for stringent quality.
Product Description
Vishay SMBG5.0A-E3/52 1-Element Uni-Directional Transient Voltage Suppressor delivers a peak pulse power dissipation of 600 W in a space-saving, low-profile DO-215AA surface mount package. This transient voltage suppressor (TVS) diode offers critical protection for sensitive electronic equipment by clamping transient voltages and preventing damage from voltage spikes and surges.
Designed with a single diode configuration and uni-directional characteristics, it effectively safeguards circuits against forward transient events. The device boasts a minimum breakdown voltage (Vbr) of 6.4 V and a maximum reverse stand-off voltage (Vwm) of 5 V, ensuring reliable operation in demanding industrial environments.
With an operating temperature range of -55°C to 150°C and a maximum peak pulse current of 65.2 A, it is suitable for use in automotive, industrial, and consumer electronics applications that require robust surge protection. The low maximum reverse leakage current of 800 μA contributes to lower power losses during normal operation.
Key mechanical dimensions include a height of 2.21 mm, length of 4.57 mm, and width of 3.94 mm, making it suitable for compact PCB layouts. The device conforms to automotive AEC-Q101 standards, assuring high reliability and quality.
This TVS diode is ideal for protecting power rails and signal lines from overvoltage conditions and electrostatic discharge, enhancing the durability and performance of electronic systems. It is widely used in telecommunications, automotive electronics, industrial control systems, and consumer electronics.
Single diode configuration for precise transient voltage suppression. Uni-directional operation for effective spike control. High peak pulse power dissipation capability. Compact surface mount DO-215AA package. Wide operating temperature specifications.
Low leakage current ensures energy efficiency. Compliance with automotive quality standards. Reliable protection against voltage surges and ESD. Suitable for industrial, automotive, and consumer electronics applications.
Explore more in our Transient Voltage Suppressors category at EnvMart for high-quality protection components for your electronic designs and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation rating of this model is 600 W, providing robust surge protection for sensitive electronic equipment.
The clamping voltage for this transient voltage suppressor is 9.2 V, which helps control voltage during transient events.
The dimensions of the DO-215AA package are 4.57 mm in length, 3.94 mm in width, and 2.21 mm in height.
This unit operates within a temperature range of -55°C to 150°C, making it suitable for various industrial applications.
This transient voltage suppressor complies with the AEC-Q101 automotive standard, ensuring high reliability and quality.
The maximum peak pulse current rating for this model is 65.2 A, providing strong protection against voltage spikes.
This model features a single diode configuration, designed for effective transient voltage suppression.
The minimum breakdown voltage (Vbr) for this transient voltage suppressor is 6.4 V, ensuring reliable operation in demanding environments.
It uses a surface mount type, making it suitable for compact PCB layouts.
This model is uni-directional, which is suitable for protection against positive transients.
This device is suitable for automotive, industrial, and consumer electronics applications that require robust surge protection.
