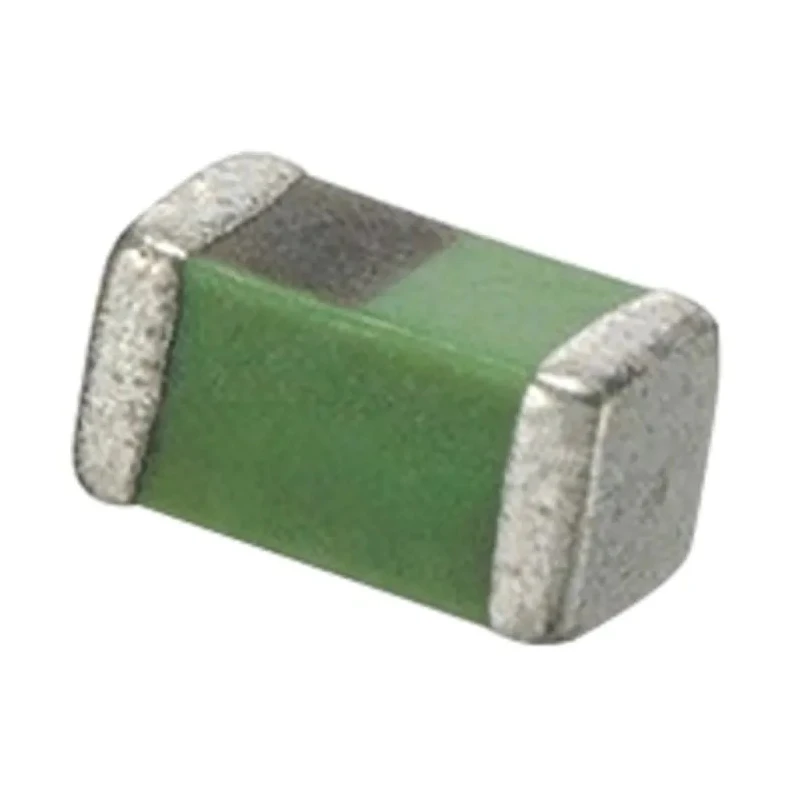

Murata Unshielded Wirewound Surface Mount Inductor 1.1 nH ±0.3 nH 300 mA Idc Q:8 LQG15HS1N1S02D

Free Delivery in India | Lowest Global Shipping Charges

Murata Unshielded Wirewound Surface Mount Inductor 1.1 nH ±0.3 nH 300 mA Idc Q:8 LQG15HS1N1S02D

Name: Murata Unshielded Wirewound Surface Mount Inductor 1.1 nH ±0.3 nH 300 mA Idc Q:8 LQG15HS1N1S02D
Brand: Murata
SKU: 375415
Price: 0.01 USD
Availability: InStock



Category Surface Mount Inductors Brand Murata Condition New

Specifications

Country of Origin	India
Brand	Murata
Height	0.5mm
Length	1mm
Model	LQG15HS1N1S02D
Depth	0.5mm
Packaging	Paper Tape
Series	LQG
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Inductance	1.1nH
Package/Case	1005
Maximum DC Current	300mA
Pin Count	2
Maximum DC Resistance	90mΩ
Inductance Tolerance	±0.3 nH
Termination Style	Solder
Maximum Self Resonant Frequency	6GHz
Minimum Quality Factor	8
Inductor Construction	Wirewound

Key Features

Compact 1005 package size suitable for high-frequency circuit applications.
Features a low DC resistance of 90 mΩ for efficient power usage.
Stable performance at high frequencies up to 6 GHz self-resonant frequency.
Manufactured with a solder termination style for reliable PCB mounting.
Operates within -55°C to 125°C temperature range ensuring durability.
Wirewound construction providing excellent inductance accuracy and reliability.
Quality factor minimum of 8 supports effective signal filtering and matching.
Packaging on paper tape facilitates automated assembly processes.

Product Description

Murata LQG15HS1N1S02D is a high-frequency unshielded wirewound surface mount inductor designed with a compact 1005 case size. This inductor offers an inductance of 1.1 nH with a tight tolerance of ±0.3 nH, enabling precise signal filtering in demanding electronic circuits. Rated for a maximum DC current of 300 mA and featuring a low DC resistance of 90 mΩ, this device ensures efficient power consumption and stable operation.

Constructed using wirewound techniques, the inductor exhibits reliable performance and durability at temperatures ranging from -55°C to 125°C. It provides a quality factor of 8 minimum and a maximum self-resonant frequency of 6 GHz, making it ideal for use in RF designs, WLAN networks, and mobile communication equipment resonance circuits.

The solder termination style offers robust mounting on soldered printed circuit boards, and packaging in paper tape allows for seamless integration into automated manufacturing lines. This inductor balances rated current capacity, size, and inductance tolerance effectively, fulfilling general use applications in industrial, commercial, and telecommunication sectors.

Compact 1005 package size for space-saving surface mount assembly. Low DC resistance ensures energy-efficient circuit design. Stable operation at high frequencies up to 6 GHz. Wide operating temperature range from -55°C to 125°C.

Wirewound construction for high reliability and inductance accuracy. Suitable for WLAN, RF, and mobile communication applications. Packaging on paper tape supports automated installation. Explore more Surface Mount Inductors at EnvMart to find devices suitable for your industrial and scientific electronic assembly needs.
