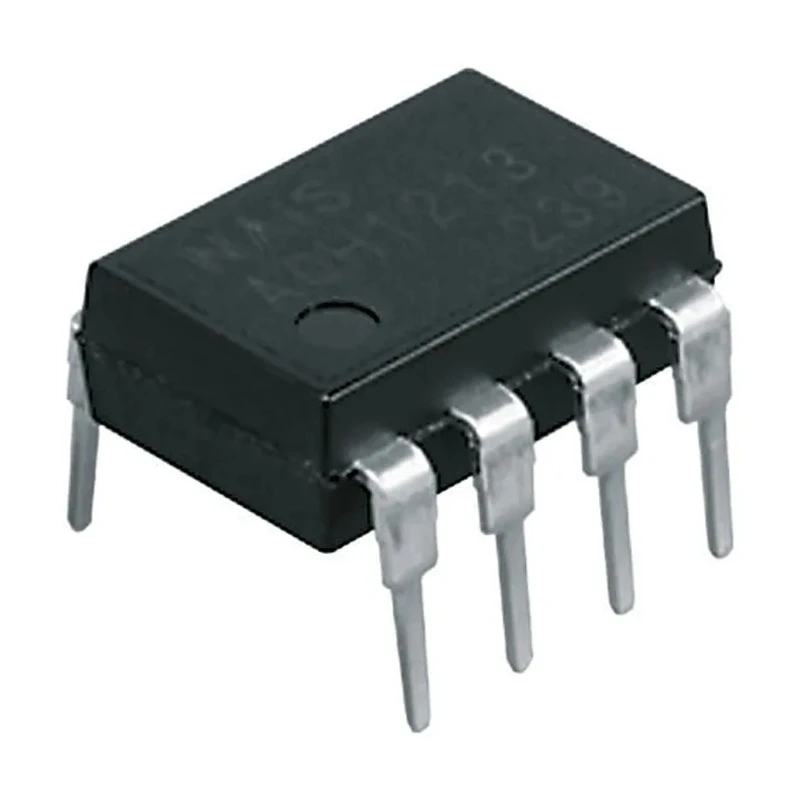

Panasonic AQ-H Series Solid State Relay 0.6A Load 600V Surface Through Hole Mount DIP-8 AQH1213

Panasonic AQH1213 is a reliable solid state relay from the AQ-H Series designed for AC load control applications. It features a compact DIP-8 surface and through hole mount package with a maximum load current of 0.6 amperes and a maximum load voltage rating of 600 volts. This solid state relay operates with a zero crossing switching function, which reduces electrical noise and prolongs device life.

The relay supports control voltages from a minimum of 1.3V up to 6V DC, making it compatible with various control circuits. Its terminal type is through hole, ensuring firm and secure PCB mounting. The contact configuration is SPST (single pole single throw) ideal for basic switching tasks in industrial automation, home appliances, and other electrical equipment.

Constructed to withstand harsh environments, the device maintains performance in operating temperatures ranging from -30°C to 85°C. The package complies with VDE standards and offers a high dielectric strength of 5000 Vac between input and output, ensuring safety and electrical isolation. The off-state leakage current is maintained very low at 100μA to reduce energy consumption during inactive states.

The dimensions of the relay are precise with a length of 9.8mm, width of 9.78mm, and height of 3.4mm, fitting compact circuit designs. Manufactured in Japan, the AQH1213 solid state relay is suited for use in industrial equipment as well as household appliances requiring reliable AC load switching.

Compact DIP-8 package for PCB mounting. Zero cross switching to minimize electrical noise. 0.6A max load current and 600V max load voltage. High dielectric strength of 5000 Vac between input and output. Operating temperature range: -30°C to 85°C suitable for varied environments.

Single pole single throw contact configuration for straightforward operation. Through hole terminal type for robust mounting. Low off-state leakage current of 100μA enhances energy savings. Applications include home appliances and industrial equipment.

Complies with VDE electrical safety standards.

These features make the Panasonic AQH1213 an ideal component for electronics manufacturers and engineers requiring efficient and durable solid state relays. Explore our selection of Panasonic products and other Solid State Relays at EnvMart for industrial and commercial applications.
