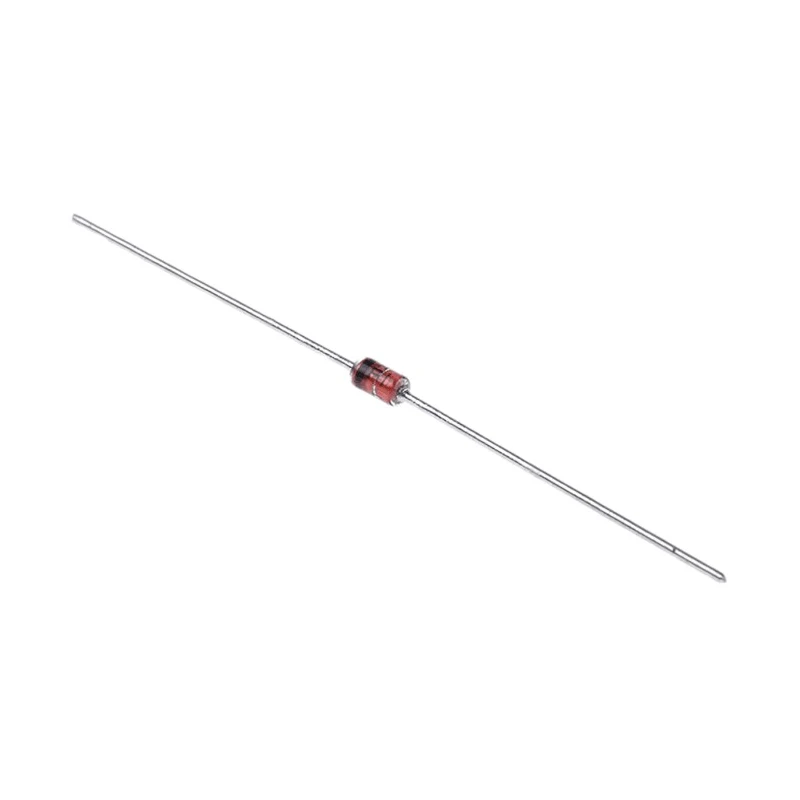

onsemi 15 V General Purpose Zener Diode 1 W Power Dissipation Through Hole 2-Pin DO-41 1N4744ATR

onsemi 1N4744ATR is a high-quality, 15 V nominal voltage general purpose Zener Diode designed for efficient voltage regulation in electronic circuits. Featuring a 1 W maximum power dissipation capability, this diode ensures robust performance in applications requiring stable voltage clamping and protection.

The diode is housed in a through-hole DO-41 package with two pins, facilitating straightforward PCB mounting in various industrial and electronic assemblies. With a test current of 17 mA, maximum zener impedance of 14 Ω, and a nominal voltage tolerance of ±5%, it delivers precise voltage control.

Its operating temperature range from -65°C to 200°C makes it suitable for use in harsh and thermally demanding environments such as power electronics, semiconductor circuits, and industrial electronics.

Additional features include low maximum reverse leakage current of 5 μA, compact size (2.72 mm height and 5.2 mm length), and single-element diode configuration. The product is new, ensuring quality and reliability.

Ideal for electronic engineers and professionals in power electronics, the onsemi 1N4744ATR aids in voltage stabilization and circuit protection. Nominal zener voltage of 15 V with ±5% tolerance. Power dissipation rating of 1 Watt.

Through hole mount with DO-41 package. Maximum operating temperature of 200°C. Low reverse leakage current of 5 μA. Compact size suitable for dense PCB layouts. Single diode configuration for general purpose use. Reliable voltage clamping in industrial applications.
