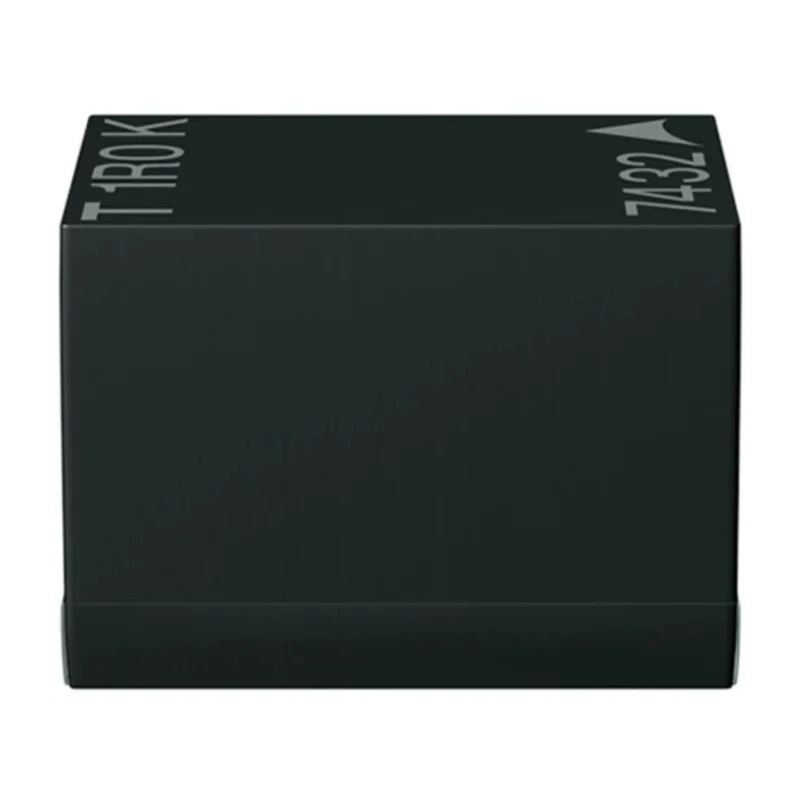

TDK SIMID 1812 Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±10% 650 mA Idc Q:10 B82432T1103K000
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TDK |
| Height | 3.2mm |
| Length | 4.5mm |
| Model | B82432T1103K000 |
| Depth | 3.2mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 650mA |
| Pin Count | 2 |
| Maximum DC Resistance | 350mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 25MHz |
| Minimum Quality Factor | 10 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a ferrite core that ensures efficient magnetic properties.
- Constructed in the 1812 package size suitable for surface mount PCB applications.
- Operates reliably between -55°C and 150°C temperatures.
- Achieves a minimum quality factor of 10 with a maximum self-resonant frequency of 25 MHz.
- Compliant with RoHS and automotive standard AEC-Q200 for quality assurance.
- Comes with tape and reel packaging optimized for automated assembly.
- Designed with solder termination style for secure mounting.
- Offers a maximum DC resistance of 350 mΩ for efficient current conduction.
Product Description
TDK B82432T1103K000 is a shielded wirewound surface mount inductor designed with a ferrite core to provide 10 μH inductance and a tolerance of ±10%. This 1812 package component supports a maximum DC current of 650 mA and features a minimum quality factor of 10, making it suitable for high-performance electronic circuits.
The component operates effectively within a temperature range of -55°C to 150°C, adhering to the automotive AEC-Q200 standard, guaranteeing reliable operation in demanding environments. The inductor’s shielding reduces electromagnetic interference, improving circuit performance in sensitive applications.
Its solder termination style facilitates robust surface mounting on printed circuit boards. The maximum DC resistance is rated at 350 mΩ, ensuring minimal power loss during operation. The component's maximum self-resonant frequency of 25 MHz allows its use in a wide frequency range for filtering, coupling, and power supply applications.
The packaging on tape and reel supports streamlined manufacturing processes by enabling automated pick-and-place assembly methods. The SIMID series inductors are widely used in automotive electronics, telecommunications, industrial electronics, and DC/DC converter circuits.
Features a ferrite core for superior magnetic performance. Shielded wirewound construction reduces EMI emissions. Compliant with RoHS requirements for environmental safety. Meets automotive AEC-Q200 standard for quality and reliability.
Suitable for applications including filtering, coupling, decoupling, and power conversion. Packaged for efficient mass production use. Operating temperature range from -55°C to 150°C. High current handling capability of up to 650 mA.
Explore the extensive range of TDK Surface Mount Inductors on EnvMart for your industrial and automotive electronics projects. Benefit from comprehensive technical documentation and reliable component quality to enhance your designs.
