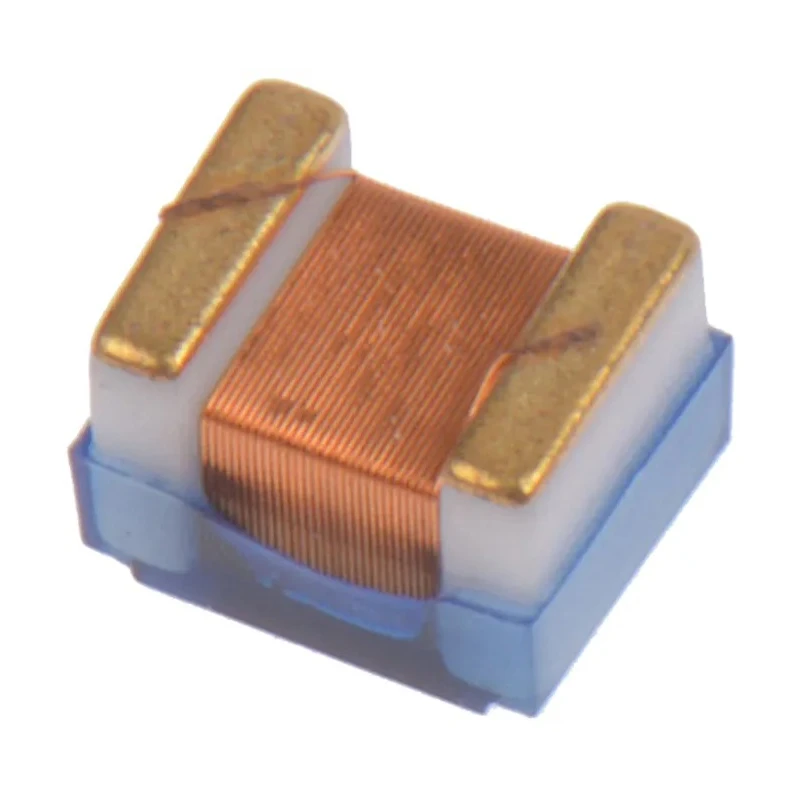

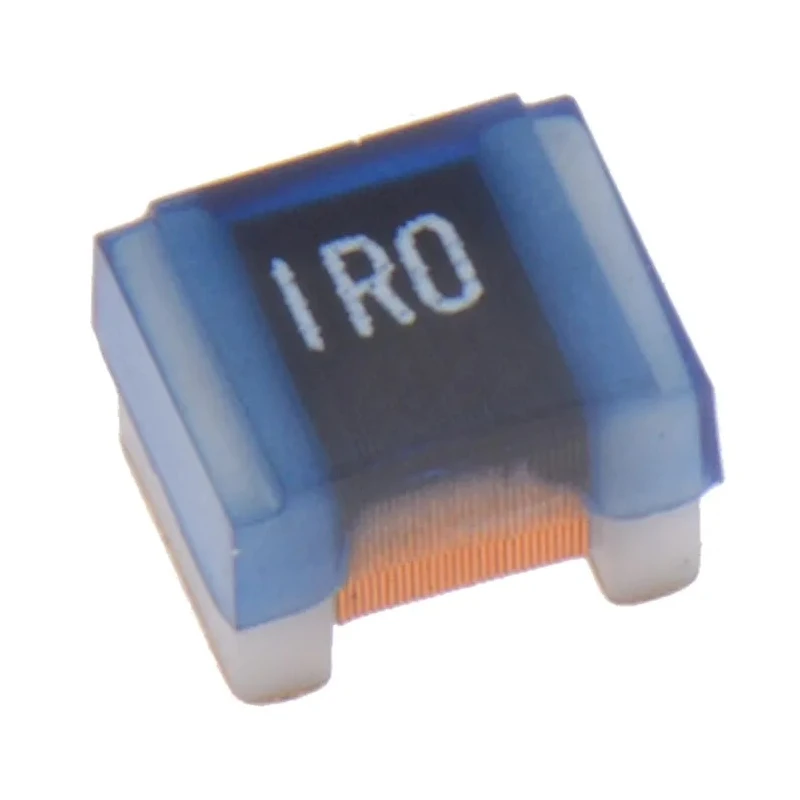

Wurth Elektronik Wirewound Shielded Surface Mount Inductor, Ceramic Core, 1 μH ±5% 120 mA Idc Q:35 744762310A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.6mm |
| Length | 2.5mm |
| Model | 744762310A |
| Depth | 2mm |
| Packaging | Tape & Reel |
| Series | WE-KI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 1μH |
| Standards/Approvals | REACH, RoHS |
| Package/Case | 1008A |
| Maximum DC Current | 120mA |
| Pin Count | 2 |
| Maximum DC Resistance | 3.3Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 310MHz |
| Minimum Quality Factor | 35 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a ceramic core for enhanced thermal stability and durability.
- Features a 1008A package case suitable for compact PCB designs.
- Ideal for high frequency applications with a maximum self-resonant frequency of 310 MHz.
- Automotive standard certified (AEC-Q200) ensuring reliable operation in harsh environments.
- Surface mount termination style facilitates easy assembly and reflow soldering.
- Designed with shielding to reduce electromagnetic interference and improve performance.
- Operates efficiently from -40°C to 125°C temperature range.
- Wirewound construction provides a minimum quality factor of 35 for excellent electrical characteristics.
Product Description
Wurth Elektronik 744762310A wirewound shielded surface mount inductor with a ceramic core provides 1 μH inductance with ±5% tolerance and a maximum DC current rating of 120 mA, suitable for diverse electronic applications.
This inductor features the 1008A package size with compact dimensions of 2.5 mm length, 1.6 mm height, and 2 mm depth. It is designed for surface mount technology using a tape and reel packaging format to facilitate automated PCB assembly processes.
The WE-KI series by Wurth Elektronik ensures a high maximum self-resonant frequency of 310 MHz, enabling excellent performance in high frequency RF, wireless LAN, Bluetooth, and RF transceiver applications. Its shielding reduces electromagnetic interference, enhancing signal integrity.
Certified to automotive standard AEC-Q200, and compliant with REACH and RoHS directives, this inductor operates reliably over a wide temperature range from -40°C to 125°C. Its wirewound construction sustains a high quality factor (Q) of at least 35, contributing to efficient energy transfer and minimal losses.
The surface mount termination style allows for efficient reflow soldering, making it an excellent choice for automated production lines in industrial, automotive, communication, and consumer electronics manufacturing.
Constructed with a ceramic core for robust thermal and mechanical performance. Shielded design to minimize EMI and crosstalk. Compact 1008A package size with precise dimensions supports space-constrained layouts. Wide operating temperature range suitable for automotive and industrial environments.
Complies with leading safety and environmental standards (RoHS, REACH). Explore the comprehensive range of Surface Mount Inductors by Wurth Elektronik at EnvMart, optimized for your high-frequency and electromagnetic interference control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 1 μH with a tolerance of ±5%.
The maximum DC current rating for this inductor is 120 mA.
It has a length of 2.5 mm, a height of 1.6 mm, and a depth of 2 mm.
The maximum self-resonant frequency is 310 MHz, making it suitable for high frequency applications.
This inductor operates efficiently within a temperature range of -40°C to 125°C.
It is constructed with a ceramic core, which enhances thermal stability.
This model features a surface mount termination style, facilitating easy assembly and reflow soldering.
Yes, it is certified to the automotive standard AEC-Q200, ensuring reliable operation in harsh environments.
The wirewound construction provides a minimum quality factor of 35, contributing to efficient energy transfer.
It is packaged in a tape and reel format, which is suitable for automated PCB assembly processes.
It complies with REACH and RoHS directives, ensuring environmental safety.
This inductor is suitable for high frequency RF, wireless LAN, Bluetooth, and RF transceiver applications.
