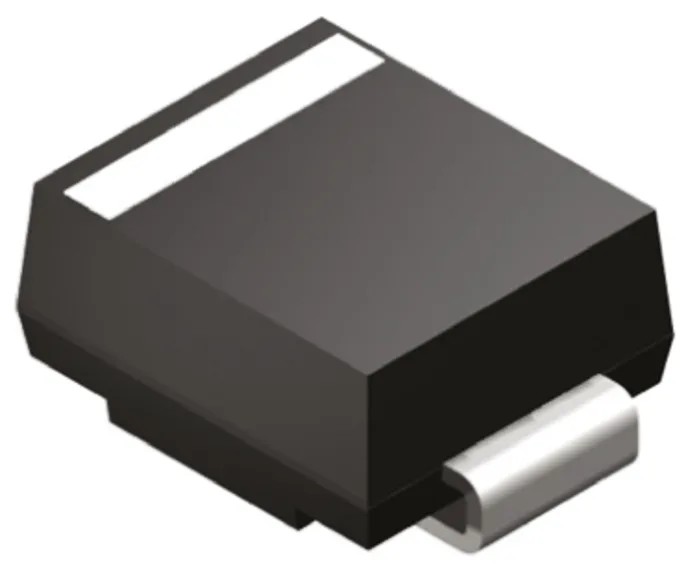

onsemi Zener Diode 160 V 3 W Single Surface Mount DO-214AA 1SMB5954BT3G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Zener Diode 160 V 3 W Single Surface Mount DO-214AA 1SMB5954BT3G

Name: onsemi Zener Diode 160 V 3 W Single Surface Mount DO-214AA 1SMB5954BT3G
Brand: onsemi
SKU: 373151
Price: 0.14 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	2.47mm
Length	5.6mm
Model	1SMB5954BT3G
Mount Type	Surface
Series	1SMA59xxBT3G
Maximum Operating Temperature	150°C
Package Type	DO-214AA
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	3W
Diode Configuration	Single
Test Current It	2.3mA
Maximum Reverse Leakage Current	1μA
Nominal Zener Voltage Vz	160V
Zener Type	Voltage Regulator
Maximum Zener Impedance	700Ω

Key Features

This diode offers voltage regulation with a tight tolerance of ±5%.
Featuring a maximum power dissipation rating of 3 watts for reliable performance.
Designed with a low maximum reverse leakage current of 1 microampere.
Operates effectively within the temperature range of -65°C to 150°C.
Constructed in a compact 2-pin DO-214AA surface mount package measuring 5.6 mm in length and 2.47 mm in height.
Test current is specified at 2.3 mA with a maximum zener impedance of 700 ohms.
Meets RoHS compliance and automotive standard AEC-Q101 for quality assurance.
Ideal for use in power regulation and voltage reference applications in industrial and automotive electronics.

Product Description

onsemi 1SMB5954BT3G Zener Diode is a high-quality single diode designed for voltage regulation applications. It features a nominal zener voltage of 160 V, supporting power dissipation up to 3 W. The device comes in a surface mount DO-214AA package with two pins, making it compact and suitable for integration into space-constrained electronic circuits.

This Zener diode operates reliably in extreme temperature environments ranging from -65°C to 150°C, ensuring stability under harsh industrial conditions. It has a maximum reverse leakage current of just 1 μA and a maximum zener impedance of 700 Ω, which helps maintain accurate voltage regulation with minimal losses.

The device is tested at a standard current of 2.3 mA and is RoHS compliant, supporting environmentally friendly manufacturing practices. Its compliance with the automotive AEC-Q101 standard indicates suitability for automotive electronics requiring rigorous quality and reliability standards.

Typical applications include use in industrial power supplies, voltage regulator circuits, automotive electronics, and other semiconductor modules needing controlled voltage reference and protection functionality against voltage transients.

This diode provides precise voltage regulation with ±5% tolerance. Compact surface mount design saves board space in electronic assemblies. Robust temperature range supports diverse industrial and automotive environments.

Meets stringent environmental and automotive quality standards. Ideal for use in discrete semiconductor and power regulation applications. Offers reliable performance in hostile electrical and thermal conditions. Supplied as a tape for efficient automated PCB assembly processes.
