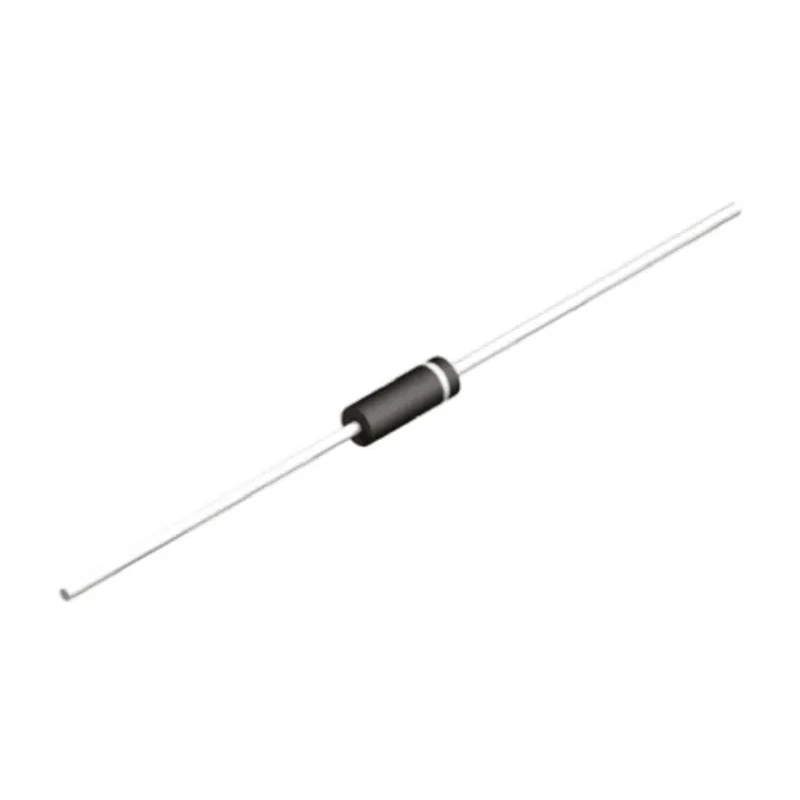

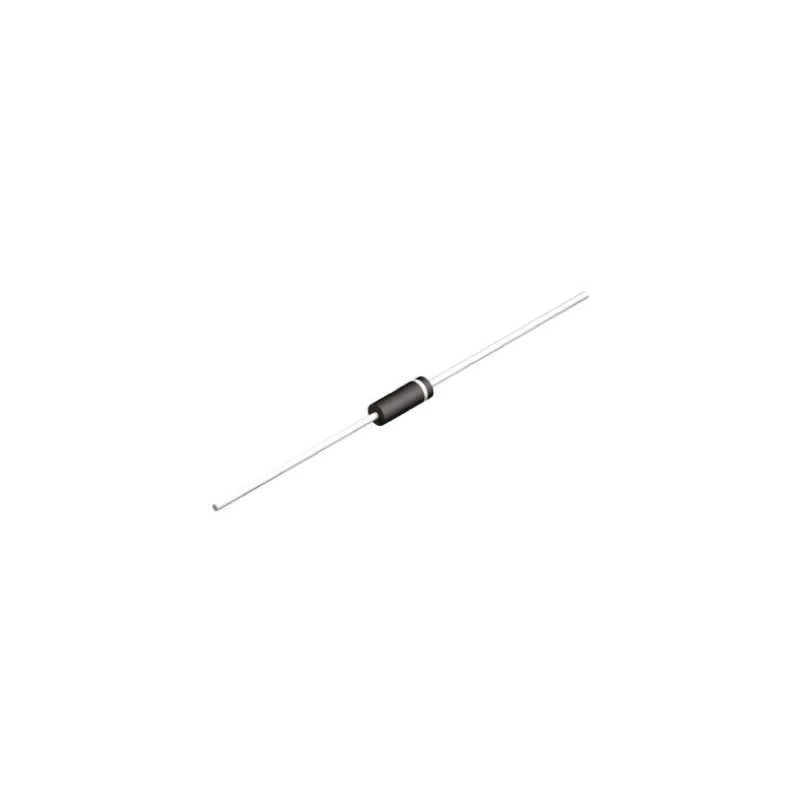

onsemi Zener Diode Through Hole 5 W Power Dissipation 25V Nominal Voltage Single 2-Pin DO-15 1N5360BRLG

Free Delivery in India | Lowest Global Shipping Charges

onsemi Zener Diode Through Hole 5 W Power Dissipation 25V Nominal Voltage Single 2-Pin DO-15 1N5360BRLG

Name: onsemi Zener Diode Through Hole 5 W Power Dissipation 25V Nominal Voltage Single 2-Pin DO-15 1N5360BRLG
Brand: onsemi
SKU: 373132
Price: 0.26 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	3.68mm
Length	8.89mm
Model	1N5360BRLG
Mount Type	Through Hole
Series	1N53
Maximum Operating Temperature	200°C
Package Type	DO-15
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	5W
Diode Configuration	Single
Test Current It	50mA
Maximum Reverse Leakage Current	500nA
Nominal Zener Voltage Vz	25V
Zener Type	Voltage Regulator
Maximum Zener Impedance	4Ω

Key Features

The diode features a nominal Zener voltage of 25 volts with ±5% tolerance.
It has a two-pin through-hole mounting configuration suitable for axial leads.
This Zener diode supports a maximum reverse leakage current of 500 nanoamperes.
Operating temperature ranges from -65°C to 200°C ensuring wide operational capability.
Maximum Zener impedance is 4 ohms, enhancing voltage regulation stability.
The molded plastic package is corrosion resistant and allows easy soldering.
The device is part of the 1N53 series with Surmetic construction for reliability.
Typical test current for the Zener diode is 50 milliamps.

Product Description

onsemi 1N5360BRLG Zener Diode is a high-performance voltage regulator diode with a nominal voltage of 25 V and power dissipation of 5 W. It is designed as a single element discrete semiconductor device housed in a DO-15 molded thermosetting plastic package for through-hole axial lead mounting.

This 2-pin Zener diode provides precise voltage regulation, featuring a Zener voltage tolerance of ±5% and a maximum Zener impedance of 4 Ω. The diode's maximum reverse leakage current is low at 500 nA, contributing to reliable operation in sensitive electronic circuits.

Engineered to operate over a wide temperature range from -65°C to +200°C, the device ensures stable performance in industrial environments and harsh conditions. Its corrosion-resistant external surfaces and readily solderable leads make it suitable for automated assembly and high production efficiency.

This diode belongs to the 1N53 series, known for Surmetic™ 40 axial-leaded 5 Watt Zener Diodes by ON Semiconductor, reflecting superior silicon-oxide passivated junction characteristics. The device is ideal for industrial electronics, power supply protection, and voltage reference applications.

The 1N5360BRLG has a 2-pin through-hole DO-15 package type. Nominal Zener voltage of 25 V ensures accurate voltage regulation. Maximum power dissipation rating is 5 W for stable thermal handling. Test current set at 50 mA for operational verification.

Operating temperature wide range from -65°C to +200°C for reliability. Corrosion resistant molded package enhances durability. Low leakage current at a maximum of 500 nA facilitates low power dissipation circuit use.

This product is suitable for use in electronics manufacturing, industrial control, power & connector applications, and other environments requiring dependable voltage regulation. Its high reliability and stable performance under demanding conditions make it a key component in power management circuits.

Discover more semiconductor components and electronic solutions with other onsemi Zener Diode series products available on EnvMart.
