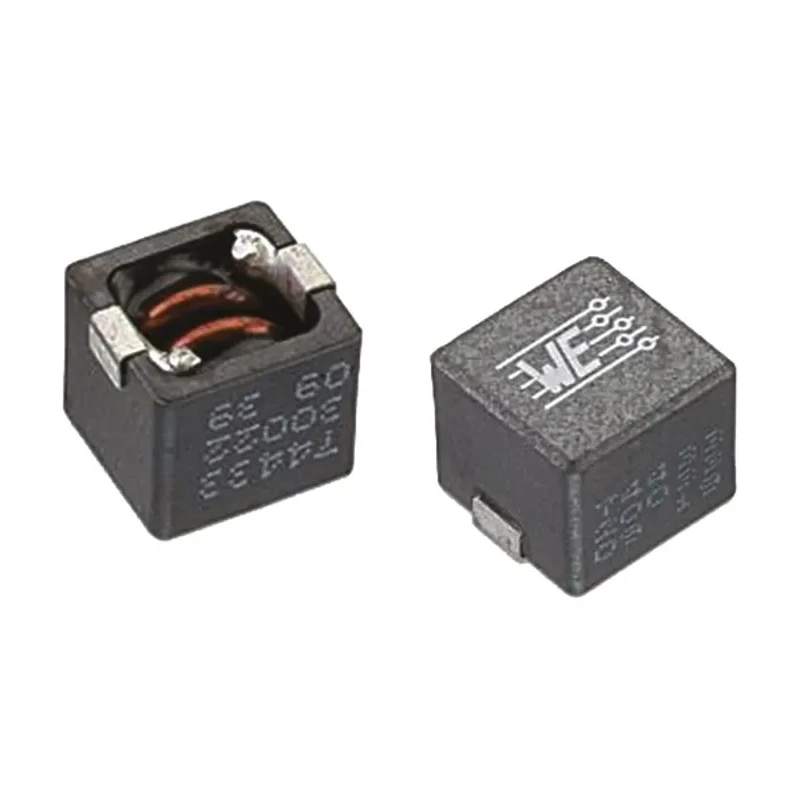

Wurth Elektronik WE-HCC 1090 Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7 μH ±20 % 13 A Idc 7443330470

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-HCC 1090 Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7 μH ±20 % 13 A Idc 7443330470

Name: Wurth Elektronik WE-HCC 1090 Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7 μH ±20 % 13 A Idc 7443330470
Brand: Wurth Elektronik
SKU: 373125
Price: 2.52 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	9.3mm
Length	10.9mm
Depth	10mm
Packaging	Tape & Reel
Series	WE-HCC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	4.7μH
Package/Case	1090
Maximum DC Current	13A
Maximum DC Resistance	8.2mΩ
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	49MHz
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200
Standards/Approvals IEC 60286-3	2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, RoHS

Key Features

Compact package size 1090 with dimensions 10.9mm length, 9.3mm height, and 10mm depth.
Shielded design with a ferrite core for improved magnetic performance.
Maximum DC resistance of 8.2 milliohms ensuring low power loss.
Supports operating temperatures from -40°C to 125°C meeting AEC-Q200 automotive standard.
Wirewound construction suitable for high current applications.
Inductance tolerance of ±20 % for reliable electrical characteristics.
Packaged in tape and reel for automated pick and place assembly.

Product Description

Wurth Elektronik 7443330470 is a shielded wirewound Surface Mount Inductor featuring a ferrite core with an inductance of 4.7 μH ±20 % and a maximum DC current rating of 13 A. It is designed in a compact 1090 package case with dimensions 10.9mm length, 9.3mm height, and 10mm depth. This inductor supports a wide operating temperature range from -40°C up to 125°C making it suitable for demanding environments including automotive applications that conform to the AEC-Q200 standard.

The wirewound construction provides high current handling capability combined with low DC resistance of 8.2 milliohms, resulting in efficient energy storage and minimal power loss. The magnetic shielding and ferrite core minimize electromagnetic interference and allow its use in sophisticated power electronics such as DC/DC converters, industrial computers, graphic cards, and motherboards. The component is surface mount compatible with tape and reel packaging to enable automated manufacturing processes.

Standards compliance includes IEC 60286-3:2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, and RoHS, ensuring quality and environmental safety. The WE-HCC series inductors are optimized for high performance switching regulators, polyphase controllers, and filters in industrial and commercial electronic equipment.

Compact 1090 package case with precise dimensions. Magnetically shielded wirewound design with ferrite core. Wide operating temperature range suitable for automotive use. High current capacity of 13 A continuous DC current.

Comprehensive compliance with international standards. Packaging supports efficient manufacturing automation. Ideal for use in DC/DC converters and power regulation applications. Low DC resistance for high efficiency and reduced heat generation.

This Wurth Elektronik inductors model 7443330470 is engineered for industrial, automotive, laboratory, manufacturing, and commercial electronics applications, providing reliable inductive performance in surface mount form. Browse EnvMart for more inductors and related electronic components for your design requirements.
