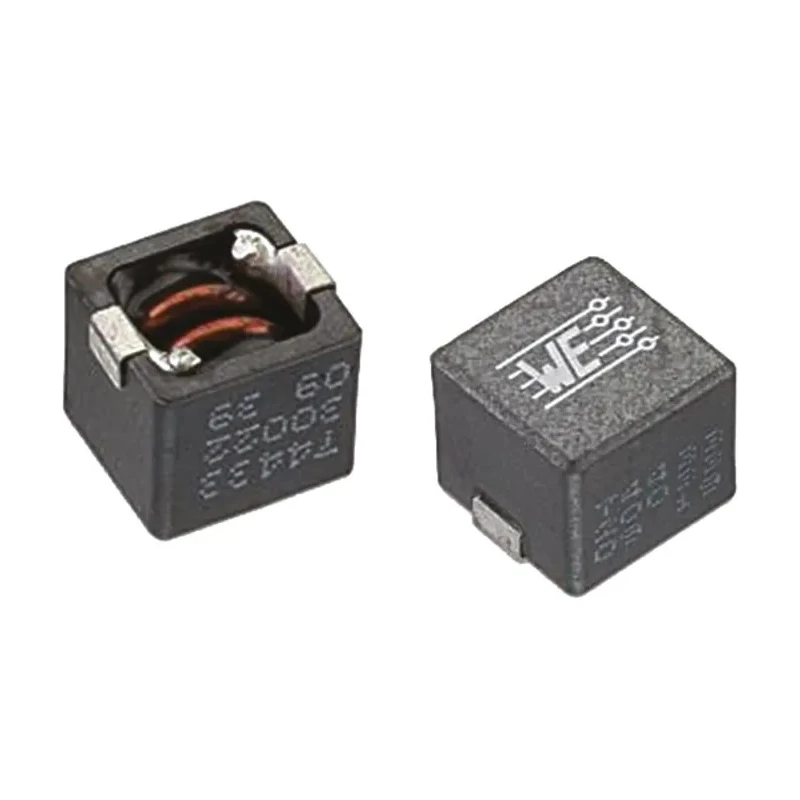

Wurth Elektronik WE-HCC 8070 Shielded Wirewound Surface Mount Inductor with Ferrite Core 2.2μH ±20% 16.5A Idc 7443340220
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 7.2mm |
| Length | 8.4mm |
| Depth | 7.9mm |
| Packaging | Tape & Reel |
| Series | WE-HCC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Package/Case | 8070 |
| Maximum DC Current | 16.5A |
| Maximum DC Resistance | 4.4mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 97MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Standards/ApprovalsIPC/JEDEC J-STD-020E, IEC 61249-2-21, IEC 60286-3 | 2013, RoHS, REACH, JEDEC JS709B |
Key Features
- Inductor features shielded wirewound construction ensuring minimal electromagnetic interference.
- Ferrite core improves magnetic performance and saturation current handling.
- Rated for temperatures from -40°C to 125°C for wide operating range.
- Packaged in tape and reel for efficient automated PCB assembly.
- Complies with automotive standard AEC-Q200 and multiple international standards.
- Surface mount termination style enables compact PCB layout.
- Maximum DC resistance is low at 4.4mΩ, optimizing electrical efficiency.
- Maximum self-resonant frequency is 97MHz, suitable for high-frequency applications.
Product Description
Wurth Elektronik 7443340220 WE-HCC series shielded wirewound surface mount inductor features a ferrite core and offers 2.2μH inductance with ±20% tolerance, capable of handling a maximum DC current of 16.5A. This magnetic component is designed for high performance in demanding electronic applications requiring high saturation current and low electromagnetic interference.
The inductor is constructed using wirewound technology with magnetic shielding, ensuring minimal signal distortion and superior efficiency, ideal for use in power management circuits and DC/DC converters. The ferrite core enhances inductance stability and current handling capabilities, supporting automotive and industrial standards compliance.
Designed with a compact 8070 package size including dimensions of 8.4mm length, 7.2mm height, and 7.9mm depth, it is suitable for densely packed circuit boards. The component is rated for operating temperatures from -40°C up to 125°C.
The inductor is supplied in tape and reel packaging, facilitating automated assembly and enhanced production efficiency. Its surface mount termination style suits modern PCB manufacturing processes. It is RoHS and REACH compliant, meets IEC and JEDEC standards, and holds automotive standard AEC-Q200 certification, ensuring reliability in automotive electronics and industrial computing.
Typical applications include graphic cards, laptops, industrial computers, motherboards, high current switching regulators, polyphase switching regulators, and DC/DC converters. Shielded wirewound construction for electromagnetic interference reduction.
Ferrite core for enhanced magnetic performance. High maximum DC current rating of 16.5A. Operating temperature range from -40°C to 125°C. Compact 8070 package dimensions for space-efficient mounting. Compliance with automotive and international industry standards.
Tape and reel packaging for automated production. Low DC resistance of 4.4mΩ for efficient power handling.
This Wurth Elektronik WE-HCC inductor is a reliable component for demanding power electronics and industrial applications. Explore more components in the Surface Mount Inductors category at EnvMart for a comprehensive selection of quality magnetic components.
